Footpegs And Bracket
All 2022 SSR SR70AUTO schematics

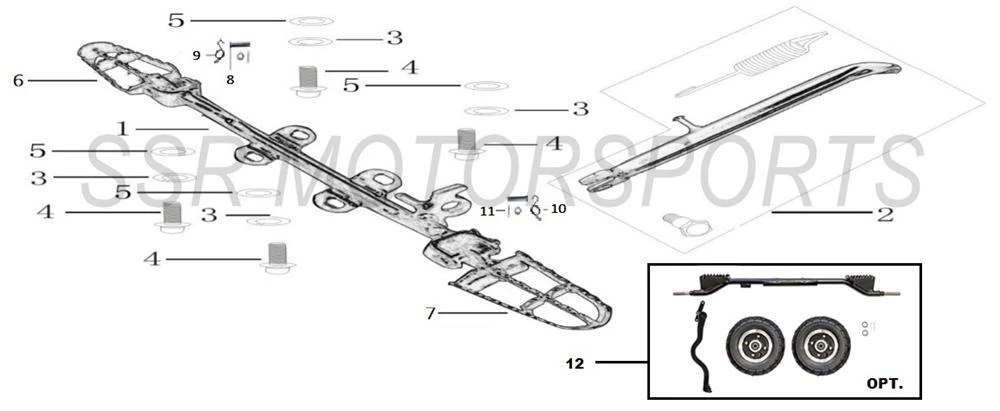

2022 SSR SR70AUTO - Footpegs And Bracket Parts Diagram
QTY shows the factory order-entry default, not a verified quantity required for this assembly. Check the part number, VIN restrictions and quantity before requesting.
Some factory table references could not be located on the drawing. Original table references and parts are retained without invented callouts.
Click a blue Part # to see its supported official catalog listings. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view supported official catalog listings.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00352-05-00 | FOOTPEG BRACKET ASSEMBLY BLACK (INCLUDES: 1,6,7,8,9,10,11)+ ADD | $75.30 | 1 |
| 2 | A00353-05-00 | SIDE STAND W/ SPRING + BOLT L=160 BLACK+ ADD | $31.50 | 1 |
| 3 | A00062-21-01 | WASHER 8X13X2+ ADD | $2.00 | 4 |
| 4 | A00015-19-01 | FLANGE BOLT M8X20 S12+ ADD | $2.00 | 4 |
| 5 | A00013-21-01 | WASHER 8X16X1.5+ ADD | $2.00 | 4 |
| 6 | A00324-05-00 | RIGHT FOOTPEG+ ADD | $21.00 | 1 |
| 7 | A00326-05-00 | LEFT FOOTPEG+ ADD | $21.00 | 1 |
| 8 | A00336-05-00 | FOOTPEG PIVOT PIN 7.8X42+ ADD | $2.00 | 2 |
| 9 | A00505-05-00 | RIGHT FOOTPEG SPRING+ ADD | $2.00 | 1 |
| 10 | A00506-05-00 | LEFT FOOTPEG SPRING+ ADD | $2.00 | 1 |
| 11 | A00019-28-01 | COTTER PIN 2.5X24+ ADD | $2.00 | 2 |
| 12 | A00055-01-00 | TRAINING WHEEL KIT (SR70AUTO) 200x50+ ADD | $154.00 | 1 |
| 13 | A00522-18-00 | TRAINING WHEEL TIRE 2.50-4+ ADD | $29.80 | 2 |
| 13 | A00619-18-00 | TRAINING WHEEL TIRE+ ADD | $29.80 | 2 |
| 14 | A00086-01-00 | TRAINING WHEEL BUSHING 12mm+ ADD | $4.40 | 4 |
| 14 | A00102-01-00 | TRAINING WHEEL BEARING 16MM+ ADD | $8.00 | 4 |
| 14 | A00179-28-00 | TRAINING WHEEL BEARING 10mm+ ADD | $8.00 | 4 |
| 15 | A00113-01-00 | TRAINING WHEEL ASSY GEN. 2 - FOR MAG WHEEL (10MM)+ ADD | $47.30 | 2 |
| 16 | A00523-18-00 | INNERTUBE 2.50-4+ ADD | $15.80 | 2 |
| 16 | A00620-18-00 | INNERTUBE 2.00-5+ ADD | $15.80 | 2 |
| 17 | A00088-01-00 | TRAINING WHEEL KIT REAR BRAKE PEDAL (SR70A) BLACK+ ADD | $21.00 | 1 |
