Frame
All 2022 SSR SR70AUTO schematics

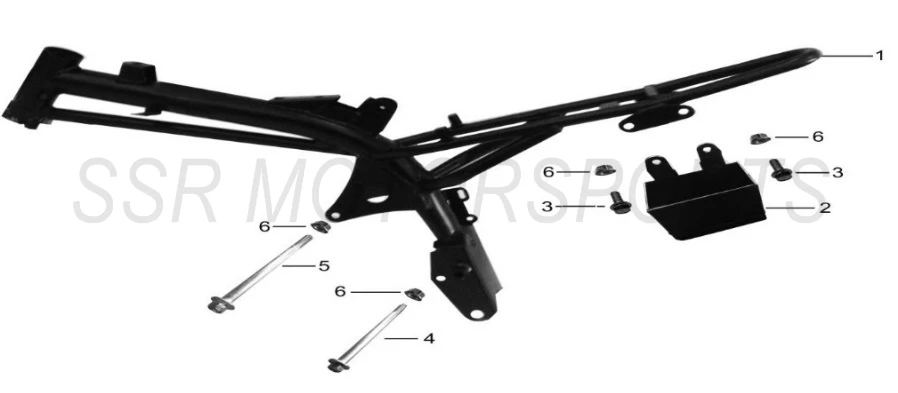

2022 SSR SR70AUTO - Frame Parts Diagram
QTY shows the factory order-entry default, not a verified quantity required for this assembly. Check the part number, VIN restrictions and quantity before requesting.
Click a blue Part # to see its supported official catalog listings. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view supported official catalog listings.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00390-11-00 | FRAME ASSY *OVERSIZE/WEIGHT*+ ADD | $159.00 | 1 |
| 2 | A00391-11-00 | BATTERY BOX 119X70X77+ ADD | $29.80 | 1 |
| 3 | A00015-19-01 | FLANGE BOLT M8X20 S12+ ADD | $2.00 | 2 |
| 4 | A00047-19-01 | FLANGE BOLT M8X110 (NOTCHED)+ ADD | $2.60 | 1 |
| 5 | A00046-19-01 | FLANGE BOLT M8X110+ ADD | $2.60 | 1 |
| 6 | A00100-22-34 | FLANGE LOCKNUT M8+ ADD | $2.00 | 4 |
