Front Suspension
All 2022 SSR SR70AUTO schematics

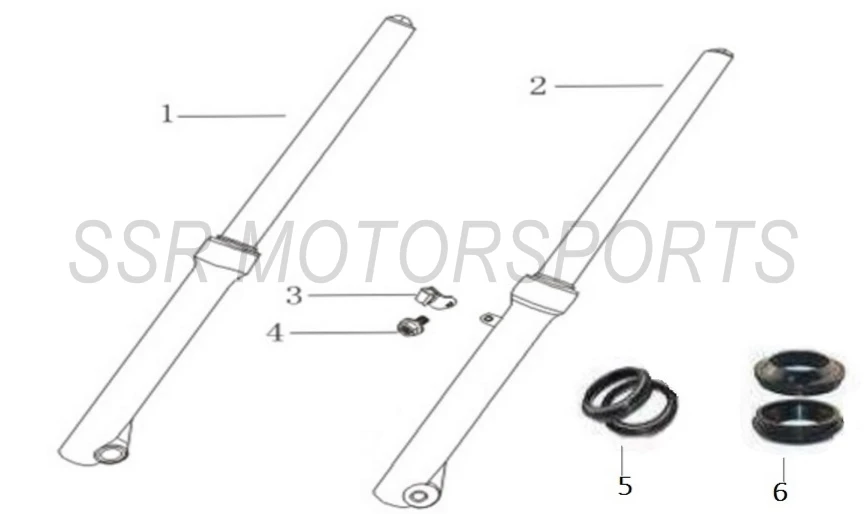

2022 SSR SR70AUTO - Front Suspension Parts Diagram
QTY shows the factory order-entry default, not a verified quantity required for this assembly. Check the part number, VIN restrictions and quantity before requesting.
Some factory table references could not be located on the drawing. Original table references and parts are retained without invented callouts.
Click a blue Part # to see its supported official catalog listings. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view supported official catalog listings.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00482-16-00 | RIGHT FRONT FORK ASSY (HYDRAULIC) SILVER+ ADD | $99.00 | 1 |
| 2 | A00481-16-00 | LEFT FRONT FORK ASSY (HYDRAULIC) SILVER+ ADD | $99.00 | 1 |
| 3 | A00483-16-00 | FRONT BRAKE CABLE HOLDER+ ADD | $2.00 | 1 |
| 4 | A00031-19-01 | FLANGE BOLT M6X12+ ADD | $2.00 | 1 |
| 5 | A00512-16-00 | FORK SEAL 27X37X10,5+ ADD | $8.00 | 2 |
| 6 | A00513-16-00 | DUST SEAL+ ADD | $8.00 | 2 |
| 7 | A00393-19-01 | FORK CROWN BOLT M24X10+ ADD | $3.50 | 2 |
