Fuel Tank
All 2022 SSR SR70AUTO schematics

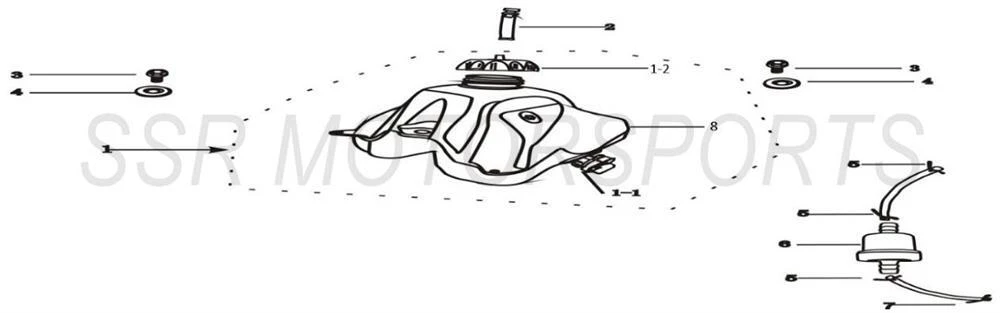

2022 SSR SR70AUTO - Fuel Tank Parts Diagram
QTY shows the factory order-entry default, not a verified quantity required for this assembly. Check the part number, VIN restrictions and quantity before requesting.
Some factory table references could not be located on the drawing. Original table references and parts are retained without invented callouts.
Click a blue Part # to see its supported official catalog listings. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view supported official catalog listings.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00315-12-00 | FUEL TANK ASSY W/ PETCOCK AND CAP+ ADD | $64.80 | 1 |
| 1-1 | A00330-12-00 | FUEL PETCOCK LEFT FILTER+ ADD | $19.30 | 1 |
| 1-2 | A00317-12-00 | FUEL TANK CAP BLACK PLASTIC+ ADD | $15.80 | 1 |
| 2 | A00332-12-00 | FUEL TANK CAP VENT+ ADD | $6.10 | 1 |
| 3 | A00015-19-01 | FLANGE BOLT M8X20 S12+ ADD | $2.00 | 2 |
| 4 | A00012-21-01 | FENDER WASHER 8x28x1.5+ ADD | $2.00 | 2 |
| 5 | A00002-24-03 | WIRE HOSE CLAMP 7.5+ ADD | $2.00 | 3 |
| 6 | A00254-12-00 | FUEL FILTER ONLY+ ADD | $4.40 | 1 |
| 6 | A00464-12-00 | FUEL FILTER W/ HOSES + CLAMPS+ ADD | $6.10 | 1 |
| 7 | A00003-24-03 | WIRE HOSE CLAMP 9+ ADD | $2.00 | 1 |
| 8 | A00358-12-00 | FUEL TANK ONLY (NO CAP OR PETCOCK)+ ADD | $49.00 | 1 |
| 9 | A00465-12-00 | FUEL HOSE A=50MM B=200MM+ ADD | $4.40 | 1 |
| 10 | A00468-12-00 | FUEL PETCOCK GASKET+ ADD | $8.00 | 1 |
