Handlebars
All 2022 SSR SR70AUTO schematics

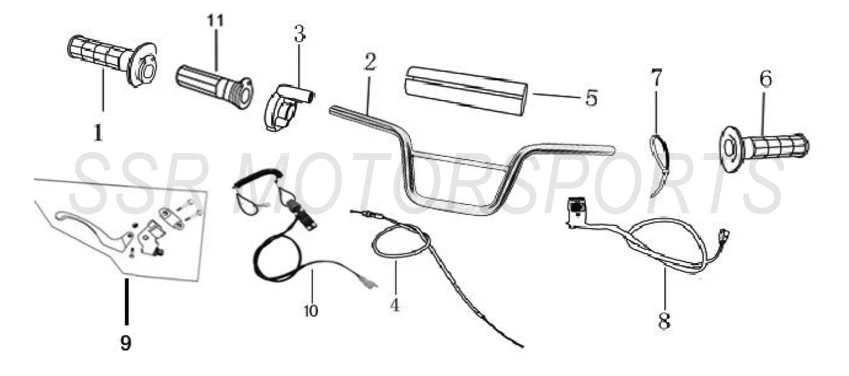

2022 SSR SR70AUTO - Handlebars Parts Diagram
QTY shows the factory order-entry default, not a verified quantity required for this assembly. Check the part number, VIN restrictions and quantity before requesting.
Click a blue Part # to see its supported official catalog listings. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view supported official catalog listings.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00342-05-00 | RIGHT HANDLEBAR GRIP W/TUBE (LIMITER STYLE) BLACK+ ADD | $8.80 | 1 |
| 2 | A00343-05-00 | HANDLEBAR BLACK+ ADD | $36.80 | 1 |
| 3 | A00344-05-00 | THROTTLE HOUSING W/ LIMITER+ ADD | $19.30 | 1 |
| 4 | A00345-05-00 | THROTTLE CABLE 780 119+ ADD | $19.30 | 1 |
| 5 | A00346-05-00 | HANDLEBAR PAD W/ COVER 170X172+ ADD | $15.80 | 1 |
| 6 | A00347-05-00 | LEFT HANDLEBAR GRIP BLACK+ ADD | $8.00 | 1 |
| 7 | A00001-24-01 | ZIP TIE 5X200MM+ ADD | $2.00 | 2 |
| 8 | A00551-08-00 | LEFT HANDLEBAR COMBO SWITCH+ ADD | $19.30 | 1 |
| 9 | A00348-05-00 | FRONT BRAKE LEVER PERCH ASSY+ ADD | $29.80 | 1 |
| 10 | A00474-08-00 | SAFETY TETHER/ KILL SWITCH+ ADD | $19.30 | 1 |
| 11 | A00349-05-00 | THROTTLE TUBE / LIMITER STYLE+ ADD | $8.80 | 1 |
