Rear Brake Pedal
All 2022 SSR SR70AUTO schematics

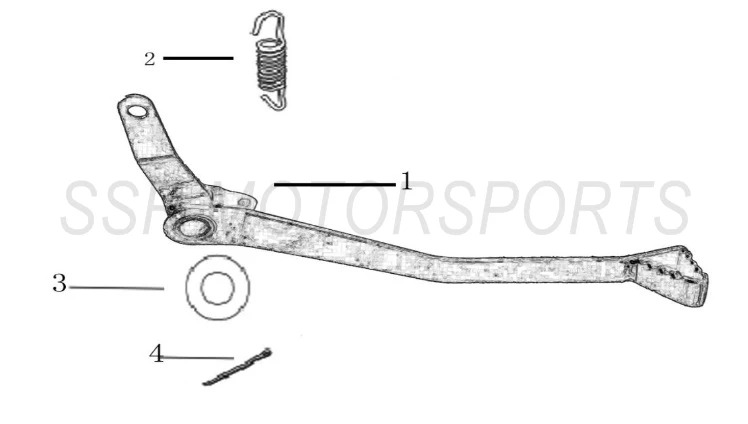

2022 SSR SR70AUTO - Rear Brake Pedal Parts Diagram
QTY shows the factory order-entry default, not a verified quantity required for this assembly. Check the part number, VIN restrictions and quantity before requesting.
Click a blue Part # to see its supported official catalog listings. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view supported official catalog listings.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00350-05-00 | REAR BRAKE PEDAL BLACK+ ADD | $24.50 | 1 |
| 2 | A00320-05-00 | REAR BRAKE PEDAL RETURN SPRING 13X2.4XH24X10+ ADD | $2.50 | 1 |
| 3 | A00015-21-01 | WASHER 15X30X2.5+ ADD | $2.00 | 1 |
| 4 | A00019-28-01 | COTTER PIN 2.5X24+ ADD | $2.00 | 1 |
Selected Parts (0)
Estimated Total: $0.00
WHERE USED
WHERE USED
Exact SKU listings from the official SSR fitment chart and individually captured factory catalogs. Check VIN and source restrictions; a listing is not an unrestricted interchangeability guarantee.
