Rear Drum Brake
All 2022 SSR SR70AUTO schematics

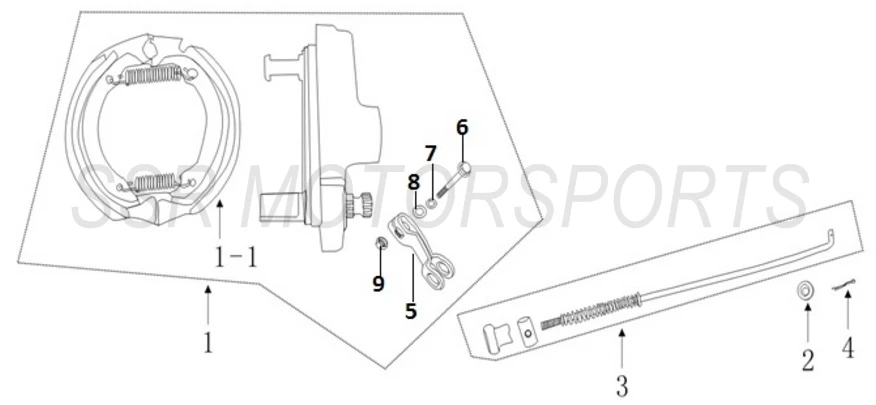

2022 SSR SR70AUTO - Rear Drum Brake Parts Diagram
QTY shows the factory order-entry default, not a verified quantity required for this assembly. Check the part number, VIN restrictions and quantity before requesting.
Some factory table references could not be located on the drawing. Original table references and parts are retained without invented callouts.
Click a blue Part # to see its supported official catalog listings. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view supported official catalog listings.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00489-04-00 | FRONT/REAR BRAKE DRUM ASSY+ ADD | $64.80 | 1 |
| 1-1 | A00490-04-00 | DRUM BRAKE SHOE SET+ ADD | $24.50 | 1 |
| 1-2 | A00493-04-00 | COMPLETE REAR BRAKE DRUM+ ADD | $42.00 | 1 |
| 2 | A00063-21-01 | WASHER 2X20+ ADD | $2.00 | 1 |
| 3 | A00495-04-00 | REAR BRAKE ROD W/ SPRING + NUT+ ADD | $19.30 | 1 |
| 4 | A00018-28-01 | COTTER PIN+ ADD | $2.00 | 1 |
| 5 | A00492-04-00 | ACTUATOR ARM+ ADD | $8.80 | 1 |
| 6 | A00443-19-03 | HEX BOLT M5X30+ ADD | $2.00 | 1 |
| 7 | A00003-21-02 | LOCK WASHER M5+ ADD | $2.00 | 1 |
| 8 | A00003-21-01 | WASHER M5+ ADD | $2.00 | 1 |
| 9 | A00007-22-01 | NUT M5+ ADD | $2.00 | 1 |
Selected Parts (0)
Estimated Total: $0.00
WHERE USED
WHERE USED
Exact SKU listings from the official SSR fitment chart and individually captured factory catalogs. Check VIN and source restrictions; a listing is not an unrestricted interchangeability guarantee.
