Rear Wheel
All 2022 SSR SR70AUTO schematics

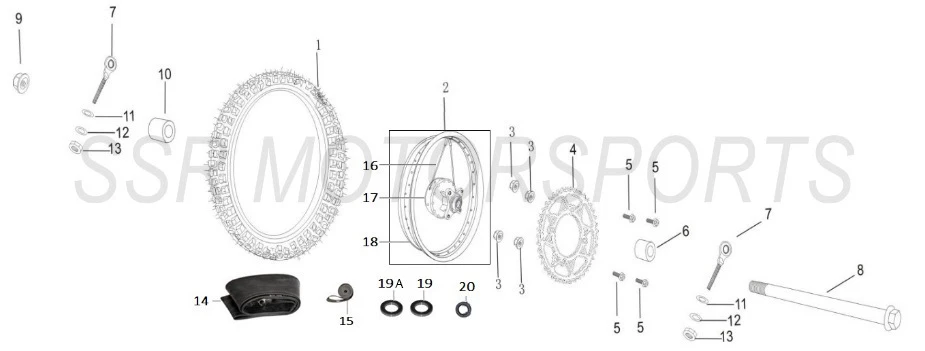

2022 SSR SR70AUTO - Rear Wheel Parts Diagram
QTY shows the factory order-entry default, not a verified quantity required for this assembly. Check the part number, VIN restrictions and quantity before requesting.
Factory diagram reference(s) 18 have no corresponding factory parts-table row. No replacement part or price is inferred for those callouts.
Click a blue Part # to see its supported official catalog listings. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view supported official catalog listings.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00322-18-00 | FRONT/REAR TIRE 2.50-10+ ADD | $29.80 | 1 |
| 2 | A00451-18-00 | REAR WHEEL ASSY (BLACK RIM WITH SILVER HUB) 1.4-10 (28 SPOKE)+ ADD | $88.20 | 1 |
| 3 | A00001-22-04 | FLANGE LOCKNUT M8+ ADD | $2.00 | 4 |
| 4 | A00300-07-00 | REAR SPROCKET 37T+ ADD | $24.50 | 1 |
| 5 | A00041-19-01 | FLANGE BOLT M8X30+ ADD | $2.00 | 4 |
| 6 | A00329-18-00 | LEFT REAR WHEEL SPACER 12X20XH6+ ADD | $6.10 | 1 |
| 7 | A00330-18-00 | CHAIN ADJUSTER M6X50+ ADD | $8.00 | 2 |
| 8 | A00331-18-00 | FRONT WHEEL AXLE 12X215X12X1.25MM+ ADD | $12.30 | 1 |
| 9 | A00001-22-03 | FLANGE LOCKNUT M12+ ADD | $2.50 | 1 |
| 10 | A00333-18-00 | RIGHT REAR WHEEL SPACER 12X20XH19+ ADD | $6.10 | 1 |
| 11 | A00002-21-02 | LOCK WASHER M6+ ADD | $2.00 | 2 |
| 12 | A00017-21-01 | WASHER 6X12X1.5+ ADD | $2.00 | 2 |
| 13 | A00001-22-01 | NUT M6+ ADD | $2.00 | 2 |
| 14 | A00219-18-00 | INNER TUBE 2.50-10+ ADD | $15.80 | 1 |
| 15 | A00334-18-00 | RIM STRIP 10"+ ADD | $6.10 | 1 |
| 16 | A00512-18-00 | FRONT/REAR SPOKES W/ NIPPLE SET (28PCS/SET) 28 SPOKE (14 INNER/14 OUTER/28 NIPPLES)+ ADD | $24.50 | 1 |
| 17 | A00405-18-00 | REAR WHEEL HUB+ ADD | $64.80 | 1 |
| 19 | A00115-28-00 | WHEEL BEARING 6001RS+ ADD | $6.10 | 1 |
| 19A | A00116-28-00 | WHEEL BEARING 6201RS+ ADD | $6.10 | 1 |
| 20 | A00034-26-00 | DUST SEAL 20X32X5+ ADD | $2.60 | 1 |
Selected Parts (0)
Estimated Total: $0.00
WHERE USED
WHERE USED
Exact SKU listings from the official SSR fitment chart and individually captured factory catalogs. Check VIN and source restrictions; a listing is not an unrestricted interchangeability guarantee.
