Swingarm
All 2022 SSR SR70AUTO schematics

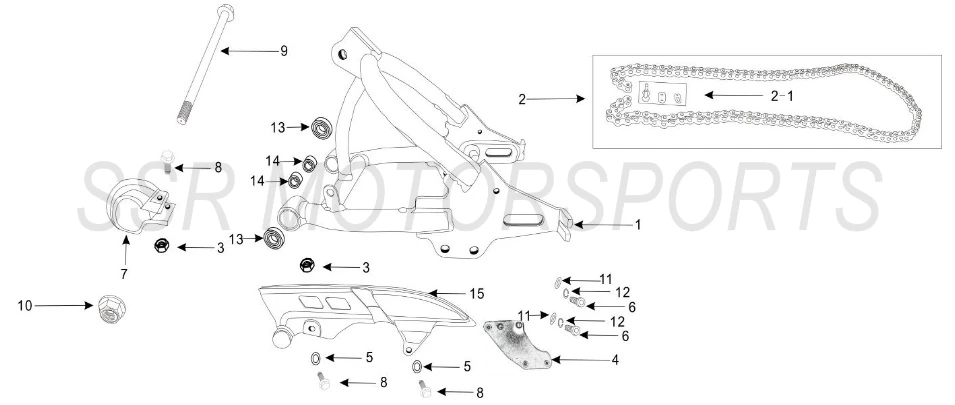

2022 SSR SR70AUTO - Swingarm Parts Diagram
QTY shows the factory order-entry default, not a verified quantity required for this assembly. Check the part number, VIN restrictions and quantity before requesting.
Some factory table references could not be located on the drawing. Original table references and parts are retained without invented callouts.
Click a blue Part # to see its supported official catalog listings. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view supported official catalog listings.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00392-11-00 | SWINGARM+ ADD | $75.30 | 1 |
| 2 | A00298-07-00 | DRIVE CHAIN 420-78L+ ADD | $42.00 | 1 |
| 2-1 | A00287-07-00 | CLIP LINK 420+ ADD | $6.10 | 1 |
| 3 | A00093-22-03 | FLANGE NUT M6 (SILVER -OR- BLACK)+ ADD | $2.00 | 2 |
| 4 | A00371-11-00 | LOWER CHAIN GUIDE+ ADD | $24.50 | 1 |
| 5 | A00011-21-01 | WASHER M6X18X1.5+ ADD | $2.00 | 2 |
| 6 | A00021-19-03 | BOLT M8×20+ ADD | $2.00 | 2 |
| 7 | A00394-11-00 | FRONT CHAIN SLIDER DB70+ ADD | $10.50 | 1 |
| 8 | A00002-19-01 | FLANGE BOLT M6X16+ ADD | $2.00 | 3 |
| 9 | A00369-11-00 | SWINGARM AXLE 10X190X1.25MM+ ADD | $10.50 | 1 |
| 10 | A00004-22-34 | FLANGE LOCKNUT M10+ ADD | $2.50 | 1 |
| 11 | A00013-21-01 | WASHER 8X16X1.5+ ADD | $2.00 | 2 |
| 12 | A00001-21-02 | LOCK WASHER 8X13X2+ ADD | $2.00 | 2 |
| 13 | A00060-28-00 | BEARING 6000Z+ ADD | $8.80 | 2 |
| 14 | A00397-11-00 | BUSHING 10.2X22.5XH20+ ADD | $6.10 | 2 |
| 15 | A00398-11-00 | CHAIN GUARD DB70+ ADD | $10.50 | 1 |
| 16 | A00428-19-08 | CASE FLANGE BOLT M6X50+ ADD | $2.00 | 3 |
| 17 | A00005-22-04 | FLANGE LOCKNUT M6+ ADD | $2.00 | 3 |
