Upper And Lower Triple Clamp
All 2022 SSR SR70AUTO schematics

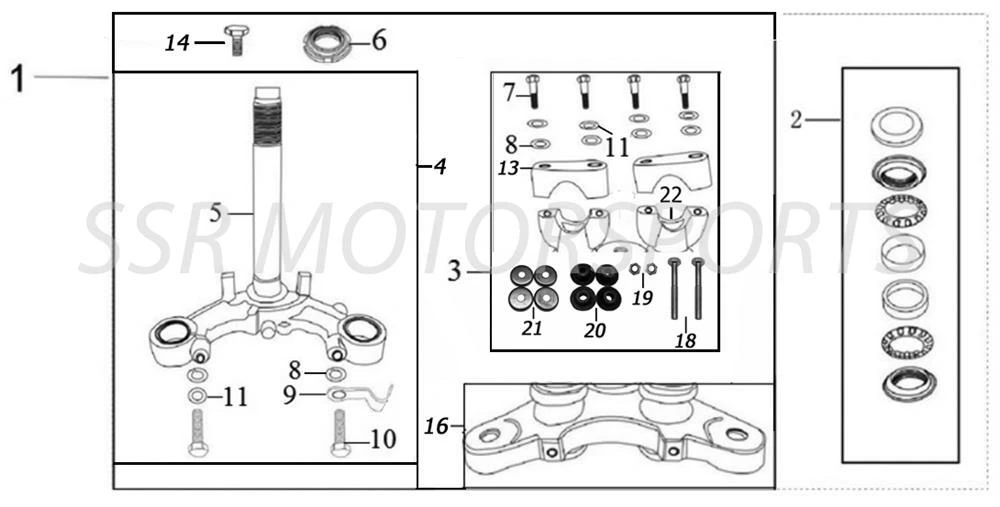

2022 SSR SR70AUTO - Upper And Lower Triple Clamp Parts Diagram
QTY shows the factory order-entry default, not a verified quantity required for this assembly. Check the part number, VIN restrictions and quantity before requesting.
Some factory table references could not be located on the drawing. Original table references and parts are retained without invented callouts.
Click a blue Part # to see its supported official catalog listings. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view supported official catalog listings.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00188-15-00 | UPPER/LOWER TRIPLE CLAMP ASSY+ ADD | $154.00 | 1 |
| 2 | A00168-15-00 | STEERING STEM BEARING SET INCLUDES #20+ ADD | $35.00 | 1 |
| 3 | A00231-15-00 | HANDLEBAR RISER SET+ ADD | $38.50 | 1 |
| 4 | A00237-15-00 | LOWER TRIPLE CLAMP ASSY+ ADD | $92.80 | 1 |
| 5 | A00236-15-00 | LOWER TRIPLE CLAMP W/ STEM+ ADD | $68.30 | 1 |
| 6 | A00234-15-00 | STEERING STEM NUT+ ADD | $4.40 | 1 |
| 7 | A00130-19-03 | DOMED HEX BOLT M8X33+ ADD | $2.50 | 4 |
| 8 | A00013-21-01 | WASHER 8X16X1.5+ ADD | $2.00 | 6 |
| 9 | A00235-15-00 | BRAKE CABLE GUIDE+ ADD | $2.50 | 1 |
| 10 | A00131-19-03 | HEX BOLT M8X30+ ADD | $2.00 | 2 |
| 11 | A00001-21-02 | LOCK WASHER 8X13X2+ ADD | $2.00 | 6 |
| 13 | A00351-15-00 | UPPER HANDLEBAR CLAMP+ ADD | $8.80 | 2 |
| 14 | A00392-19-01 | SPECIAL BOLT M10X30+ ADD | $4.40 | 1 |
| 16 | A00355-15-00 | UPPER TRIPLE CLAMP+ ADD | $56.00 | 1 |
| 18 | A00462-19-03 | BOLT M7X65+ ADD | $2.50 | 2 |
| 18 | A00505-19-03 | HEX BOLT M10X72+ ADD | $2.60 | 2 |
| 19 | A00008-22-04 | LOCKNUT M7+ ADD | $2.00 | 2 |
| 19 | A00004-22-34 | FLANGE LOCKNUT M10+ ADD | $2.50 | 2 |
| 20 | A00374-15-00 | RUBBER DAMPER M7+ ADD | $2.00 | 4 |
| 20 | A00412-15-00 | RUBBER DAMPER M10+ ADD | $2.00 | 4 |
| 21 | A00274-21-06 | CUPPED WASHER M7+ ADD | $2.50 | 4 |
| 21 | A00291-21-06 | CUPPED WASHER M10+ ADD | $2.50 | 4 |
| 22 | A00401-15-00 | LOWER HANDLEBAR CLAMP+ ADD | $8.80 | 2 |
| 23 | A00290-21-07 | WASHER M7+ ADD | $2.00 | 2 |
| 23 | A00002-21-01 | WASHER M10+ ADD | $2.00 | 2 |
