Camshaft & Valves

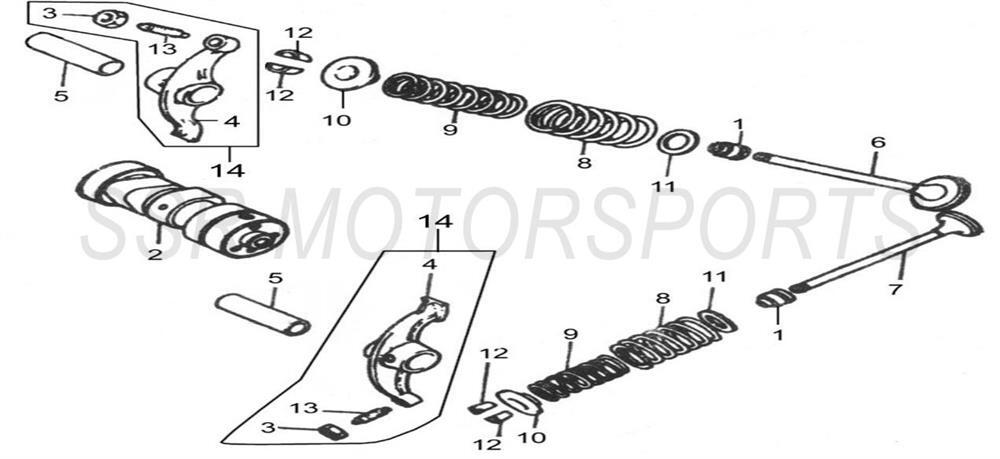

2022 SSR TR110 - Camshaft & Valves Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A02858-09-00 | VALVE STEM SEAL+ ADD | $2.60 | 2 |
| 2 | A02845-09-00 | CAMSHAFT LIFAN+ ADD | $75.30 | 1 |
| 3 | A02846-09-00 | ADJUSTER NUT LIFAN+ ADD | $2.50 | 2 |
| 4 | A02847-09-00 | ROCKER ARM LIFAN+ ADD | $19.30 | 2 |
| 5 | A02848-09-00 | ROCKER SHAFT LIFAN+ ADD | $6.10 | 2 |
| 6 | A02849-09-00 | INTAKE VALVE LIFAN+ ADD | $14.00 | 1 |
| 7 | A02850-09-00 | EXHAUST VALVE LIFAN+ ADD | $14.00 | 1 |
| 8 | A02851-09-00 | OUTER VALVE SPRING LIFAN+ ADD | $6.10 | 2 |
| 9 | A02852-09-00 | INNER VALVE SPRING LIFAN+ ADD | $6.10 | 2 |
| 10 | A02853-09-00 | UPPER VALVE SPRING RETAINER LIFAN+ ADD | $8.00 | 2 |
| 11 | A02854-09-00 | LOWER VALVE SPRING RETAINER LIFAN+ ADD | $8.00 | 2 |
| 12 | A02855-09-00 | COLLET LIFAN+ ADD | $2.50 | 4 |
| 13 | A02856-09-00 | VALVE ADJUSTING SCREW LIFAN+ ADD | $2.50 | 2 |
| 14 | A02857-09-00 | ROCKER ARM ASSY LIFAN+ ADD | $24.50 | 2 |
