Handlebars

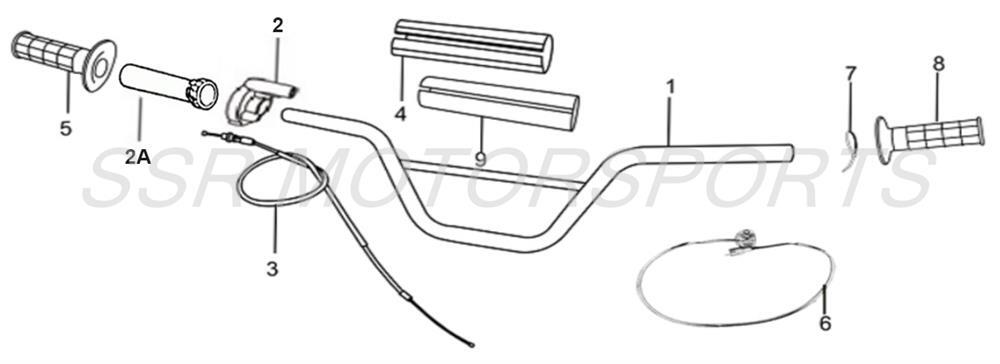

2022 SSR TR110 - Handlebars Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00542-05-00 | HANDLEBAR SR110TR/125TR/125TR-BW+ ADD | $36.80 | 1 |
| 2 | A00311-05-00 | THROTTLE HOUSING+ ADD | $21.00 | 1 |
| 2A | A00510-05-00 | THROTTLE TUBE+ ADD | $4.40 | 1 |
| 3 | A00356-05-00 | THROTTLE CABLE 880 130+ ADD | $19.30 | 1 |
| 4 | A00313-05-00 | HANDLEBAR PAD COVER 12X53X220+ ADD | $8.80 | 1 |
| 5 | A00309-05-00 | RIGHT HANDLEBAR GRIP GREY+ ADD | $10.50 | 1 |
| 6 | A00473-08-00 | KILL SWITCH+ ADD | $12.30 | 1 |
| 7 | A00001-24-01 | ZIP TIE 5X200MM+ ADD | $2.00 | 1 |
| 8 | A00315-05-00 | LEFT HANDLEBAR GRIP GREY+ ADD | $8.00 | 1 |
| 9 | A00314-05-00 | HANDLEBAR PAD 215X185+ ADD | $8.80 | 1 |
