Left Engine Cover & Stator

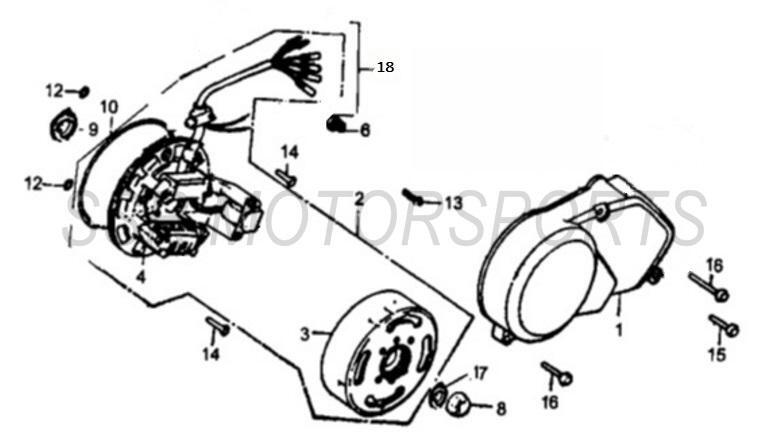

2022 SSR TR110 - Left Engine Cover & Stator Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A01214-09-00 | STATOR COVER+ ADD | $56.00 | 1 |
| 2 | A02771-09-00 | STATOR W/ FLYWHEEL ASSY+ ADD | $161.00 | 1 |
| 3 | A02772-09-00 | FLYWHEEL+ ADD | $75.30 | 1 |
| 4 | A02773-09-00 | STATOR PLATE ASSY LIFAN+ ADD | $101.50 | 1 |
| 6 | A02920-09-00 | RUBBER PLUG+ ADD | $4.40 | 1 |
| 8 | A00004-22-04 | FLANGE NUT M10+ ADD | $2.00 | 1 |
| 9 | A00003-26-00 | OIL SEAL 18.9X30X5+ ADD | $4.40 | 1 |
| 10 | A00010-27-00 | O-RING 107X2+ ADD | $8.80 | 1 |
| 12 | A00012-27-00 | O-RING 6.5X1.9+ ADD | $2.00 | 2 |
| 13 | A00006-20-01 | PHILLIPS BOLT M6X12+ ADD | $2.00 | 1 |
| 14 | A00038-20-01 | SCREW M6X14+ ADD | $2.00 | 2 |
| 15 | A00422-19-08 | CASE FLANGE BOLT M6X28+ ADD | $2.00 | 1 |
| 16 | A00425-19-08 | CASE FLANGE BOLT M6X35+ ADD | $2.00 | 2 |
| 17 | A00002-21-01 | WASHER M10+ ADD | $2.00 | 1 |
