Right Engine Cover

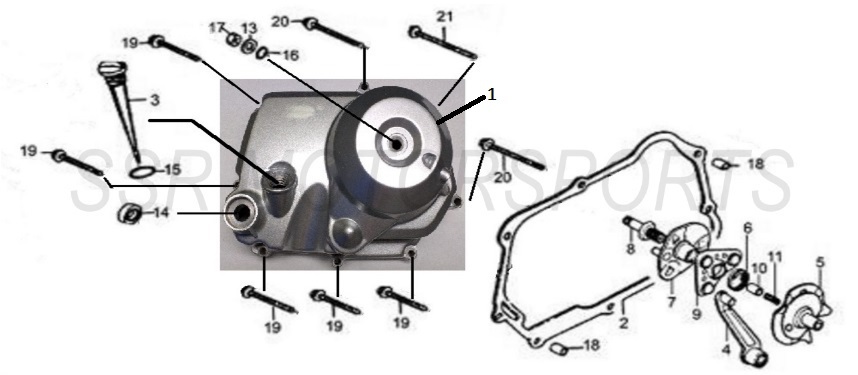

2022 SSR TR110 - Right Engine Cover Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A02884-09-00 | CLUTCH COVER+ ADD | $101.50 | 1 |
| 2 | A00120-13-00 | CLUTCH COVER GASKET+ ADD | $15.80 | 1 |
| 3 | A02406-09-00 | DIPSTICK+ ADD | $8.00 | 1 |
| 4 | A02327-09-00 | CLUTCH OPERATING ARM+ ADD | $29.80 | 1 |
| 5 | A02328-09-00 | CLUTCH CAM PLATE+ ADD | $15.80 | 1 |
| 6 | A02329-09-00 | SPRING+ ADD | $2.00 | 1 |
| 7 | A02330-09-00 | CLUTCH SEPARATING DISK+ ADD | $12.30 | 1 |
| 8 | A02331-09-00 | CLUTCH ADJUSTING BOLT+ ADD | $6.10 | 1 |
| 9 | A02332-09-00 | TAPPET+ ADD | $10.50 | 1 |
| 10 | A02333-09-00 | OIL TUBE+ ADD | $3.50 | 1 |
| 11 | A02334-09-00 | SPRING+ ADD | $2.00 | 1 |
| 13 | A00004-21-01 | WASHER M8+ ADD | $2.00 | 1 |
| 14 | A00005-26-00 | OIL SEAL 13.7X24X5+ ADD | $6.10 | 1 |
| 15 | A00090-27-00 | O-RING 18X3+ ADD | $2.60 | 1 |
| 16 | A00019-27-00 | O-RING 8X2+ ADD | $2.00 | 1 |
| 17 | A00002-22-01 | NUT M8+ ADD | $2.00 | 1 |
| 18 | A00003-23-00 | DOWEL PIN M8X12+ ADD | $2.00 | 2 |
| 19 | A00426-19-08 | CASE FLANGE BOLT M6X40+ ADD | $2.00 | 2 |
| 20 | A00430-19-08 | CASE FLANGE BOLT M6X65+ ADD | $2.50 | 5 |
| 21 | A00436-19-08 | CASE FLANGE BOLT M6X80+ ADD | $2.50 | 2 |
