Upper & Lower Triple Clamp

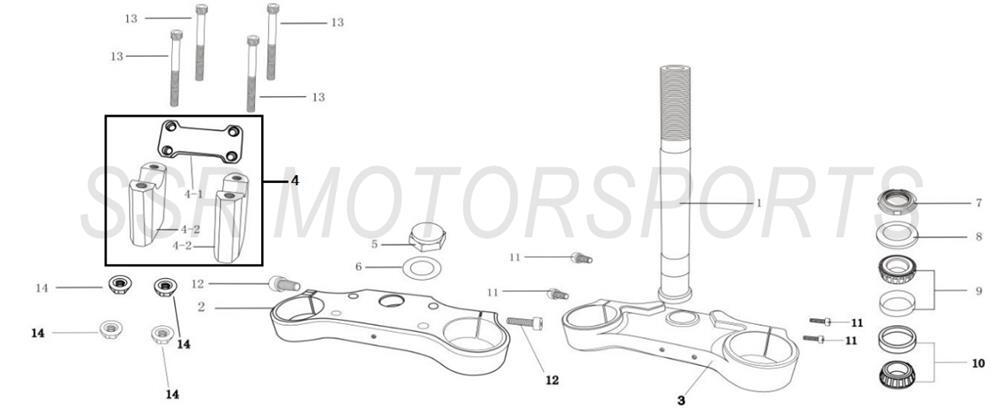

2022 SSR TR110 - Upper & Lower Triple Clamp Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00172-15-00 | LOWER TRIPLE CLAMP W/ STEM+ ADD | $96.30 | 1 |
| 2 | A00173-15-00 | UPPER TRIPLE CLAMP 45+ ADD | $82.30 | 1 |
| 4 | A00175-15-00 | HANDLEBAR RISER ASSY+ ADD | $35.00 | 1 |
| 4-1 | A00176-15-00 | UPPER HANDLEBAR CLAMP+ ADD | $15.80 | 1 |
| 4-2 | A00177-15-00 | LOWER HANDLEBAR CLAMP+ ADD | $10.50 | 2 |
| 5 | A00166-15-00 | STEERING STEM NUT M22X1+ ADD | $6.10 | 1 |
| 6 | A00170-15-00 | WASHER 23X36X2+ ADD | $2.60 | 1 |
| 7 | A00180-15-00 | SPLINED NUT M22X1XH18.5+ ADD | $4.40 | 1 |
| 8 | A00181-15-00 | DUST CAP+ ADD | $2.60 | 1 |
| 9 | A00182-15-00 | UPPER STEERING STEM BEARING 320/22+ ADD | $15.80 | 1 |
| 10 | A00183-15-00 | LOWER STEERING STEM BEARING 320/23.5+ ADD | $15.80 | 1 |
| 11 | A00008-19-02 | ALLEN BOLT M6X20+ ADD | $2.00 | 4 |
| 12 | A00251-19-02 | ALLEN BOLT M8X20+ ADD | $2.00 | 2 |
| 13 | A00417-19-02 | ALLEN BOLT M8X105+ ADD | $2.60 | 4 |
| 14 | A00100-22-34 | FLANGE LOCKNUT M8+ ADD | $2.00 | 4 |
