2023 Aodes Desertcross 1000-6 HVAC (Cooling System)

2023 Aodes Desertcross 1000-6 HVAC (Cooling System)

Aodes

SPECIAL ORDER ONLY PLEASE CALL (320)-358-1994 TO ORDER THANK YOU

(No reviews yet)
Condition:
New
Current Stock:
Description

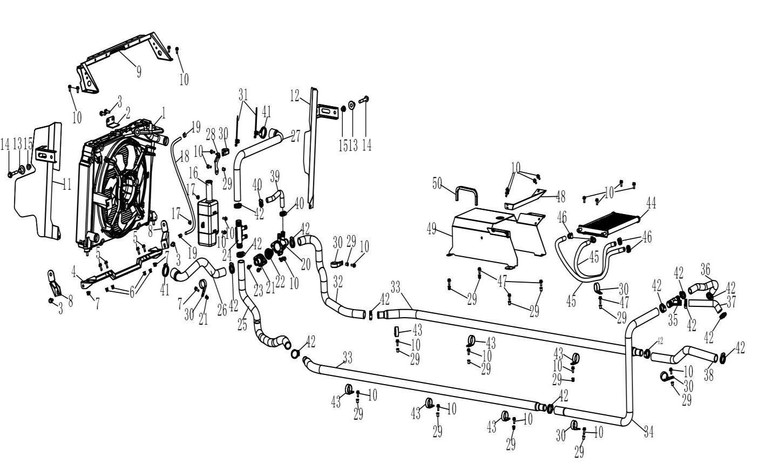

Item #		 Part Number Description
Specification
Quantity
Warranty period		 Fits Models
1 21140401201 Single Fan & Radiator Assembly Assembly 1
2 17112030070 Radiator Bracket Plate 1
3 01224080166 Hex Flange Bolt M8×16 4 Not Covered Under Warranty 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/1000-11/800-7/1000-7/1000-12
4 17112030051 Radiator Lower Bracket Reinfocing Plate Bracket 1
5 01254060206 Hex Flange Bolt M6×20 4
6 04512060127 Rivet Nut M6 4 Not Covered Under Warranty 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/1000-11/800-7/1000-7/1000-12
7 04612080026 Hexagon Flange Locking Nut M8 2 Not Covered Under Warranty 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/1000-11/800-7/1000-7/1000-12
8 17112030060 Radiator Lower Bracket Reinforcing Plate   2
9 16612030040 Radiator Upper Bracket Bracket 1
10 01254060166 Hex Flange Bolt M6×16 28 Not Covered Under Warranty 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/1000-11/ATV800/800-7/1000-7/1000-13
11 17112020060 Radiator Wind Collecting Plate, Driver Side Left 1
12 17112020070 Radiator Wind Collecting Plate, Passenger Side Right 1
13 14610470070 Rotating Shaft Nylon Sleeve Sleeve 2
14 01256100606 Hexagon Flange Bolt M10×60×1.25 2
15 04612100026 Hex Flange Locking Nut 10X1.5 M10×1.5 2
16 14612040000 Auxiliary Water Tank Auxiliary 1 6 Months (Unlimited Miles) 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/1000-11/800-7
17 04612060026 Hexagon Flange Locking Nut 6 M6 2
18 15112050080 Hose, Inner ￠6.5x￠12 L=420mm 1 Not Covered Under Warranty 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/1000-11/ATV800/800-7
19 11904070040 Spring Hose Clip Clamp 2 Not Covered Under Warranty 800-3A/800-4A/1000-3/1000-3A/1000-4/1000-4A/1000-11/ATV800/800-7
20 16612090080 Thermostat Body   1
21 16612090090 Thermostat Cover   1
22 21140401601 Thermostat   1
23 03414060204 Socket Pan Head Screws M6×20 2
24 16612050190 Four Way Connector   1
25 16612050230 Hot Water Pipe, Middle   1
26 17112050141 Cold Water Pipe (Before Thermostat)   1
27 17112050110 Hot Water Pipe, Front   1   1000-13
28 17112050120 Front Heat Water Pipe Mounting Plate Plate 1 Not Covered Under Warranty 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/800-7
29 04512060027 Rivet Nut M6 10 Not Covered Under Warranty 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/1000-11/ATV800/800-7/1000-7/1000-13
30 14712050430 Clip 33 φ33 6 Not Covered Under Warranty 800-3A/800-4A/1000-3A/1000-4A/800-7
31 90103040057 Metal Plate Zip Ties Ties 2
32 17112050151 Cold Water Pipe After Thermostat   1   1000-13
33 16612050110 Connector Tube, Aluminum Pipes 2
34 14712050040 Hot Water Pipe, Rear Rear 1
35 16612050410 Y-Junction Joint 1   1000-13
36 14712050050 Water Outlet Pipe Cylinder 1 Water 1
37 14712050060 Water Outlet Pipe Cylinder 2 Water 1
38 14712050020 Cold Water Pipe, Rear Rear 1
39 17112100070 Small Circulating Water Pipe Hvac Hvac 1
40 21040401601 Clamp (12-22 2
41 14607010700 Clamp φ21-φ44 2
42 17012070000 Clamp (￠20-32 14 Not Covered Under Warranty 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/1000-11/ATV800/800-7
43 14612080000 Clip φ36 6 Not Covered Under Warranty 800-3A/800-4A/1000-3A/1000-4A/800-7
44 21040400916 Oil Cooler 800 1
45 21140401001 Oil Cooler Tube L=540 2
46 21040409401 Clamp 18.5 4
47 01254060206 Hex Flange Bolt M6×20 1 Not Covered Under Warranty 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/1000-11/ATV800/800-7/1000-7/1000-13
48 17110310090 Air Duct Divider Divider 1
49 17110310080 Air Duct Extension Plate Plate 1
50 16510340140 Windshield Scratch Prevention Strip Strip 0.16
