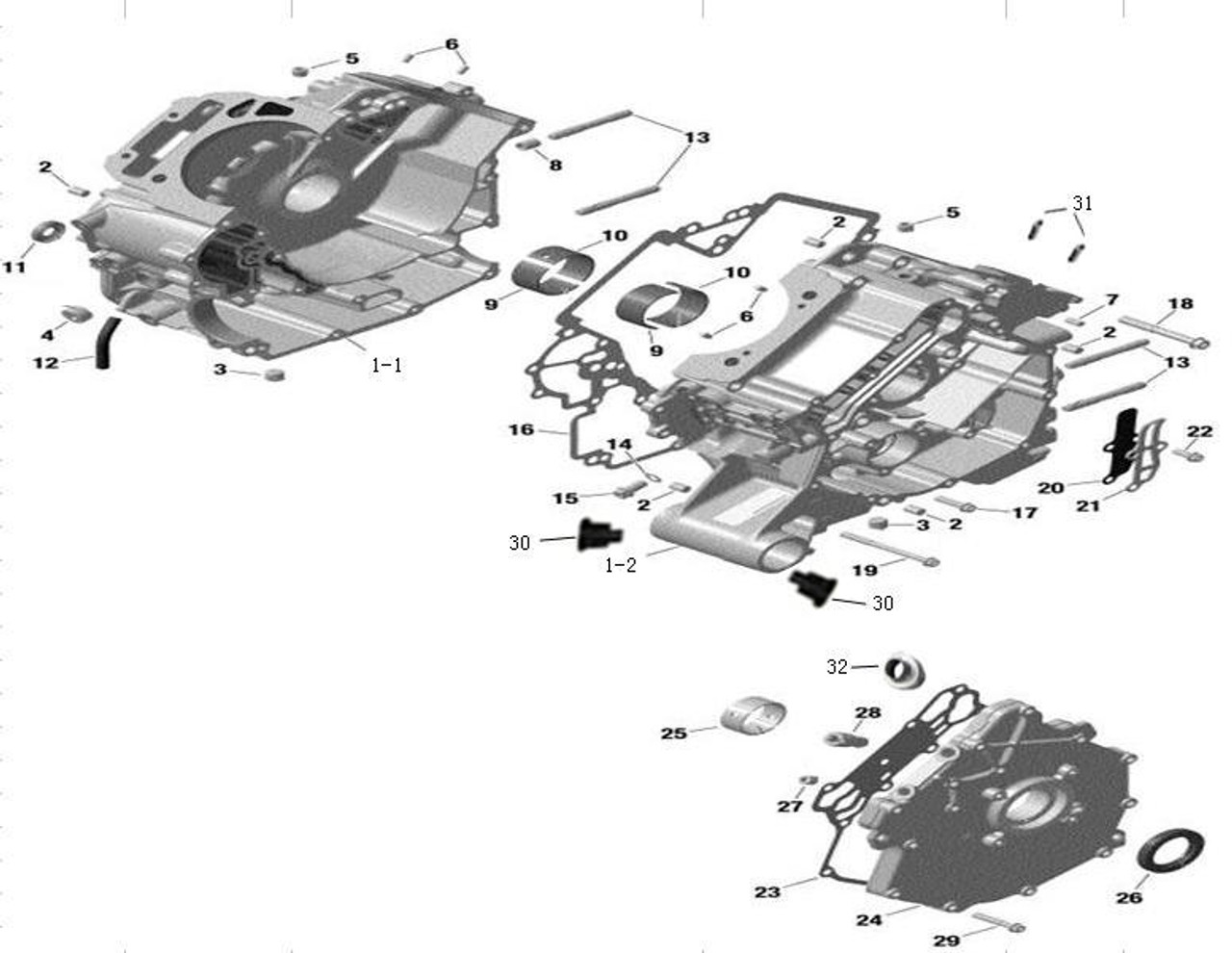

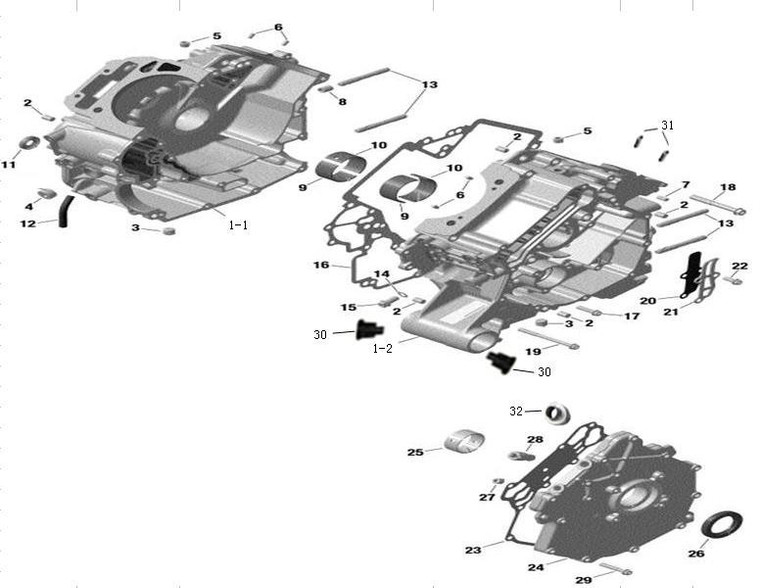

  • 2023 Aodes Desertcross 1000-6 HVAC (Crankcase Components)

    • 2023 Aodes Desertcross 1000-6 HVAC (Crankcase Components)

    Aodes

    SPECIAL ORDER ONLY PLEASE CALL (320)-358-1994 TO ORDER THANK YOU

    (No reviews yet) Write a Review
    Condition:
    New

    Product Description


    Item #    		 Part Number Description
    Specification
    Quantity
    Warranty period
    1-1 21050300102 Right Crankcase Crankcase 1 24 Months (Unlimited Miles)
    1-2 21050300201 Left Crankcase Crankcase 1 24 Months (Unlimited Miles)
    2 21040105401 Dowel Pin Ф 8×12 5 Not Covered Under Warranty
    3 21040105801 Plug NPT 1/4 2 Not Covered Under Warranty
    4 21040105601 Plug NPT 1/2 1 Not Covered Under Warranty
    5 21040105701 Plug NPT 1/8 2 Not Covered Under Warranty
    6 21040105502 Drive Pin Ф5×11 4 Not Covered Under Warranty
    7 21040106301 Needle Pin Ф6×10 1 Not Covered Under Warranty
    8 21040116001 Dowel Pin 10×16 Hollow 1 Not Covered Under Warranty
    9 21040106001 Main Bearing A no hole 2 Not Covered Under Warranty
    9 21040106002 Main Bearing A no hole 2 Not Covered Under Warranty
    10 21040106101 Main Bearing B with hole 2 Not Covered Under Warranty
    10 21040106102 Main Bearing B with holes 2 Not Covered Under Warranty
    11 21040106201 Oil Seal 10×25×5 1 Not Covered Under Warranty
    12 21050301211 Water Pump Seal Weep Tube Drain Fittings 1 Not Covered Under Warranty
    13 21050301301 Stud M8x69 4 Not Covered Under Warranty
    14 21040107401 Sealing Ring Ф8 1 Not Covered Under Warranty
    15 01224080161 Flanged Screw M8×16 1 Not Covered Under Warranty
    16 21050301601 Gasket   1 Not Covered Under Warranty
    17 01224060251 Flanged Screw M6×25 2 Not Covered Under Warranty
    18 01214080651 Flanged Screw M8×65 4 Not Covered Under Warranty
    19 01214060751 Flanged Screw M6×75 13 Not Covered Under Warranty
    20 21040106502 Reed Valve   1 Not Covered Under Warranty
    21 21040106601 Reed Valve Limiter   1 24 Months (Unlimited Miles)
    22 01224060161 Flanged Screw M6x16 3 Not Covered Under Warranty
    23 21040106901 Left Cover Gasket   1 Not Covered Under Warranty
    24 21050302400 Pto Cover Ass'Y   1 24 Months (Unlimited Miles)
    25 21040107101 Left Cover Bearing   2 Not Covered Under Warranty
    25 21040107102 Left Cover Bearing Bearing 2 Not Covered Under Warranty
    26 21040107301 Oil Seal 34×52×8 1 Not Covered Under Warranty
    27 21040105701 Plug Screw NPT1/8 1 Not Covered Under Warranty
    28 21040107201 Hose Nipple Npt1/4   1 Not Covered Under Warranty
    29 01224060351 Flanged Torx Screw M6×35 14 Not Covered Under Warranty
    30 21040206301 Anti-Vibration Mount   2 Not Covered Under Warranty
    31 90101120650 Insert Pin 10*1.5-17K   8 Not Covered Under Warranty
    32 21050302411 Breathing Valve Bushing, Left Cover   1 24 Months (Unlimited Miles)
