2023 Aodes Desertcross 1000-6 HVAC (Electrical System 1)

2023 Aodes Desertcross 1000-6 HVAC (Electrical System 1)

Aodes

SPECIAL ORDER ONLY PLEASE CALL (320)-358-1994 TO ORDER THANK YOU

(No reviews yet)
Condition:
New
Current Stock:
Description

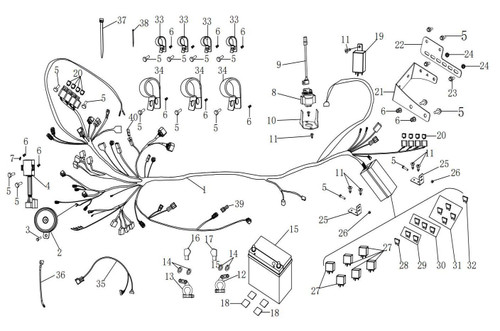

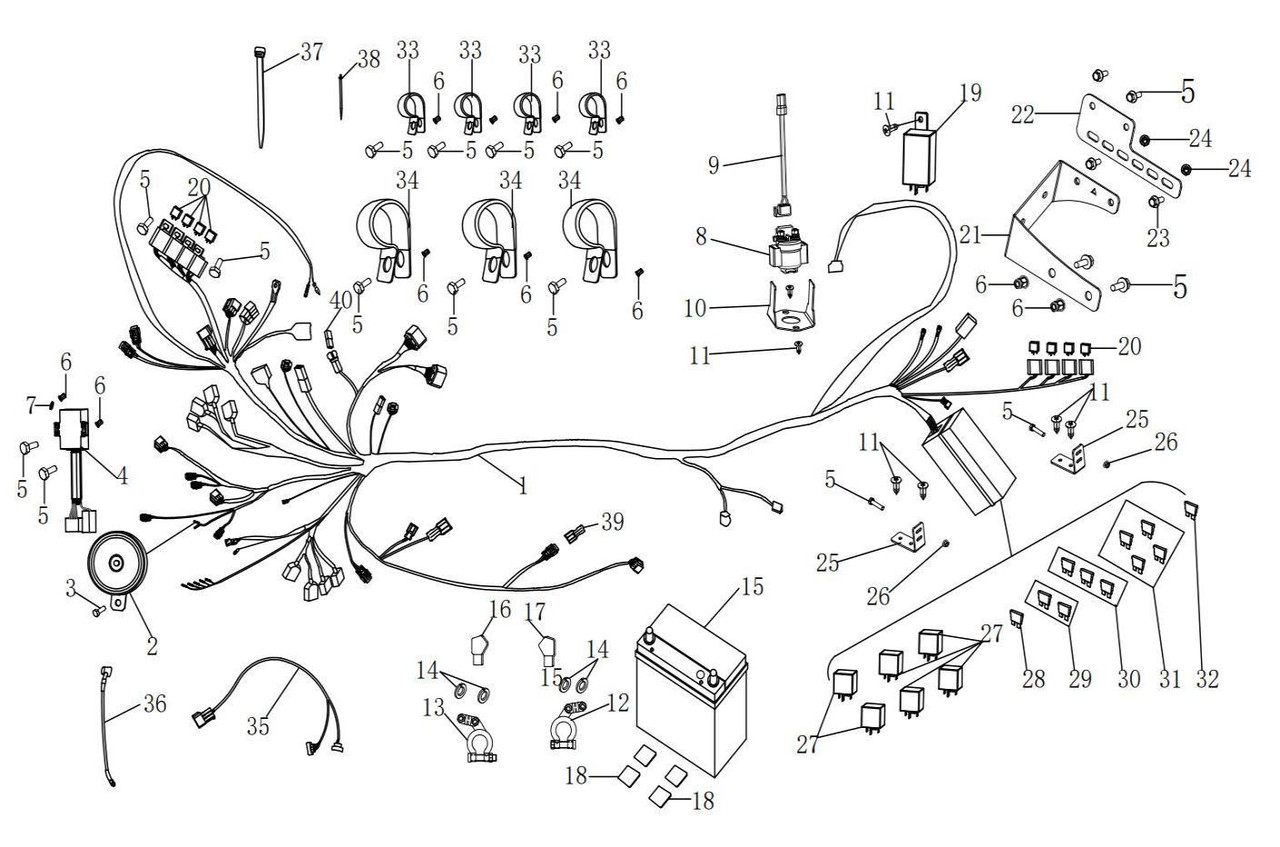

Item #		 Part Number Description
Specification
Quantity
Warranty period		 Fits Models
1 17209020090 Wire Harness, Front Front 1 12 Months (Unlimited Miles) 1000-13
2 17309100000 Horn Trumpet 1 6 Months (Unlimited Miles)
3 01224080166 Hex Flange Bolt 8X16 M8×16 1 Not Covered Under Warranty 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/1000-11/ATV800/800-7/1000-7/1000-13
4 21140400302 Shift Controller Controller 1 12 Months (Unlimited Miles)
5 01254060166 Hex Flange Bolt M6×16 15 Not Covered Under Warranty 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/1000-11/ATV800/800-7/1000-7/1000-13
6 04512060127 Rivet Nut M6 11 Not Covered Under Warranty 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/1000-11/800-7/1000-7/1000-12
7 06819060004 External Teeth Lock Washer φ6 1 Not Covered Under Warranty 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/1000-11/ATV800/800-7/1000-7/1000-13
8 17009350000 Starter Relay Relay 1 6 Months (Unlimited Miles)
9 17009010180 Starter Relay Connector Wire Cable 1 Not Covered Under Warranty
10 17009010310 Starter Relay Bracket Bracket 1
11 03714630205 Tapping Screws ST6.3×20 5 Not Covered Under Warranty 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/1000-11/800-7/1000-7/1000-12
12 10909090210 Battery Positive Battery Terminal Card 1 Not Covered Under Warranty 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/1000-11/800-7
13 10909090220 Battery Negative Battery Terminal Card 1 Not Covered Under Warranty 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/1000-11/800-7
14 06619061001 Lock Washer ø6 4 Not Covered Under Warranty
15 10909090000 Battery Battery 1 Not Covered Under Warranty
16 10909010010 Waterproof Cover (Negative)   1 Not Covered Under Warranty
17 10909010020 Waterproof Cover (Positive)   1 Not Covered Under Warranty
18 10409090020 Rubber Cushion, Battery 30x60x6 4 Not Covered Under Warranty
19 10109270000 Flasher Waterproof 1 6 Months (Unlimited Miles)
20 10109330000 2Wd/4Wd Solenoid 2WD 8 12 Months (Unlimited Miles)
21 16609350032 Relay Bracket Bracket 1
22 16609350060 Relay Mount Plate Plate 1
23 01224050125 Hex Flange Bolt M5×12 2
24 04612050025 Hex Flange Lock Nuts M5 2
25 14609010150 Fuse Box Bracket Bracket 2 Not Covered Under Warranty
26 04612060025 Hexagon Flange Locking Nut 6 M6 2 Not Covered Under Warranty 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/1000-11/800-7/1000-7/1000-12
27 10409340000 Diverter Relay (Four Prong) Relay 6 6 Months (Unlimited Miles)
28 10909010050 Fuse 10A（Red） 10A 1 Not Covered Under Warranty
29 10909010040 Fuse 15A（Blue） 15A 2 Not Covered Under Warranty
30 10909010070 Fuse 20A（Yellow） 20A 3 Not Covered Under Warranty
31 10909010030 Fuse 30A（Green） 30A 4 Not Covered Under Warranty
32 10909010230 Fuse 40A（Orange） 40A 1 Not Covered Under Warranty
33 10109380030 Wire Harness Mounting Clamp 3 φ30 4 Not Covered Under Warranty
34 14612080000 Clip 36 φ36 3 Not Covered Under Warranty
35 13203100170 2Wd/4Wd Wire Line 1 12 Months (Unlimited Miles)
36 14609010130 Starter Wire Harness Starter 1 12 Months (Unlimited Miles)
37 90103040030 Nylon Cable Ties W8X250Mm M8×250 15 Not Covered Under Warranty
38 90103040053 Fixed Bushing M5×150 30 Not Covered Under Warranty
39 16514240090 Sealing Plug DJ7021-1.5-11 1
40 17109160250 Small Instrument Short Connector Connector 1
