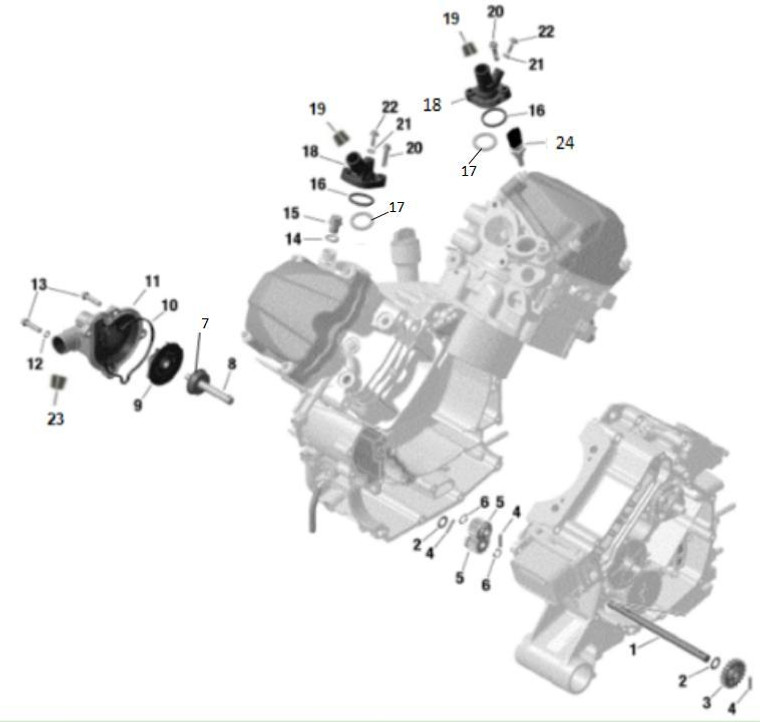

  • 2023 Aodes Desertcross 1000-6 HVAC (Engine Cooling System Assembly)

    • 2023 Aodes Desertcross 1000-6 HVAC (Engine Cooling System Assembly)

    Aodes

    SPECIAL ORDER ONLY PLEASE CALL (320)-358-1994 TO ORDER THANK YOU

    (No reviews yet) Write a Review
    Condition:
    New

    Product Description


    Item #    		 Part Number Description
    Specification
    Quantity
    Warranty period
    1 21040113501 Intermediate Shaft   1 24 Months (Unlimited Miles)
    2 21040113001 Thrust Washer Ф17×Ф10.2×1 2 Not Covered Under Warranty
    3 21040113602 Water Pump Driving Gear 20T 1 Not Covered Under Warranty
    4 21040113701 Needle Pin M4x20 3 Not Covered Under Warranty
    5 21040113802 Water Pump Gear 15T 2 Not Covered Under Warranty
    6 07021101004 Snap Ring 10 2 Not Covered Under Warranty
    7 21140101401 Water Pump Rubber Cap   1 Not Covered Under Warranty
    7 21040113901 Rotary Seal   1 Not Covered Under Warranty
    8 21040114001 Water Pump Shaft   1 24 Months (Unlimited Miles)
    9 21140100701 Water Pump Impeller   1 Not Covered Under Warranty
    10 21140100501 Gasket   1 Not Covered Under Warranty
    11 21140100401 Water Pump Housing   1 24 Months (Unlimited Miles)
    12 06150061201 Gasket Ring 6 1 Not Covered Under Warranty
    13 01224060251 Flanged Bolt M6x25 4 Not Covered Under Warranty
    14 21040104701 Copper Washer 18×12.4×2 1 Not Covered Under Warranty
    15 21040104801 Plug Screw M12×1.5 1 Not Covered Under Warranty
    16 21040104201 Thermostat Gasket   2 Not Covered Under Warranty
    17 21040104101 Spacer   2 Not Covered Under Warranty
    18 21040104301 Thermostat Cover   2 24 Months (Unlimited Miles)
    19 21040104361 Thermostat Cover Rubber Cap   2 Not Covered Under Warranty
    20 01224060251 Flanged Bolt M6×25 4 Not Covered Under Warranty
    21 21040117001 Gasket Ring 6 2 Not Covered Under Warranty
    22 21040104401 Coolant Bleeder Screw M6x10 2 Not Covered Under Warranty
    23 21040104361 Housing Cap   2 Not Covered Under Warranty
    24 21040103001 Water Temperature Sensor   1 24 Months (Unlimited Miles)
    24 21040103002 Water Temperature Sensor   1 24 Months (Unlimited Miles)
