Product Description
Item # |

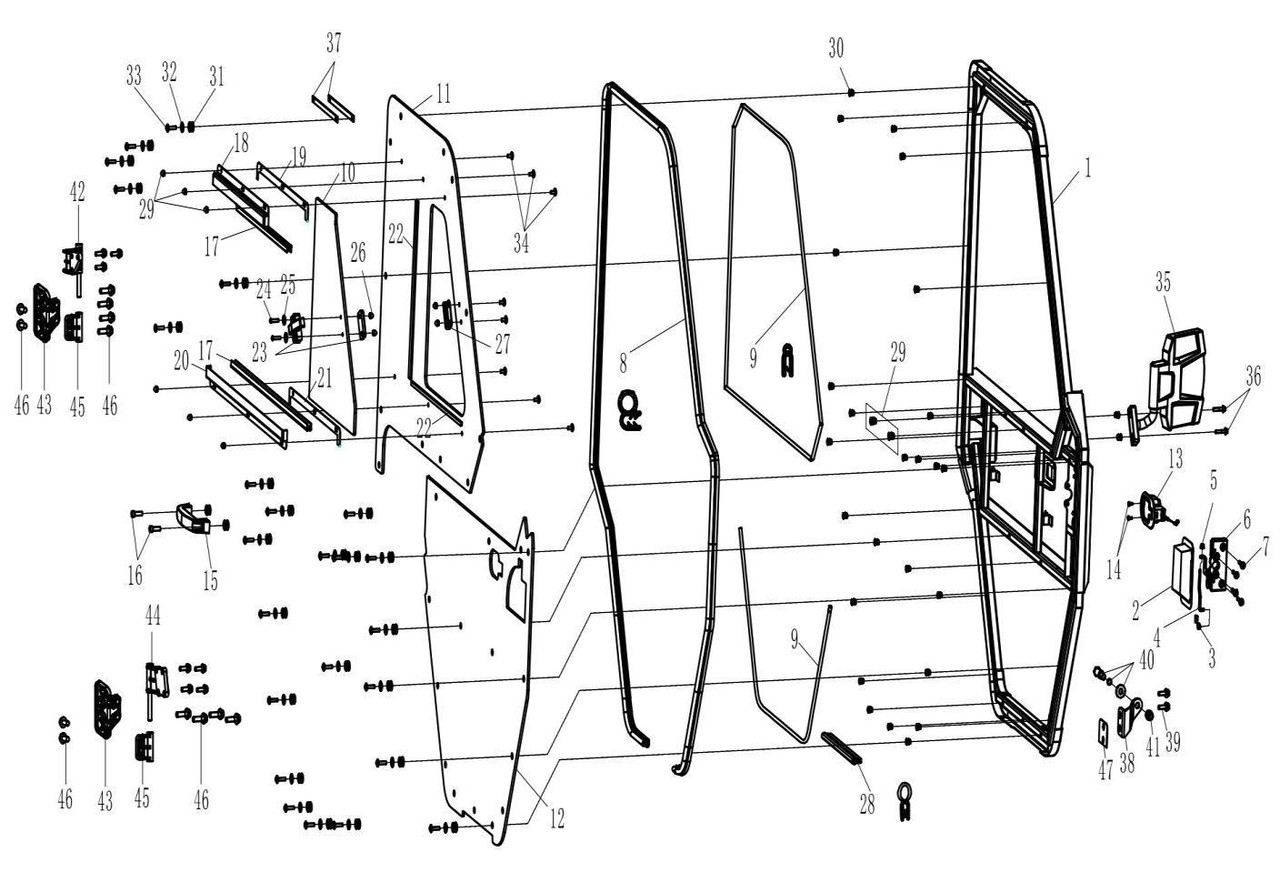

Part Number | Description | Specification |
Quantity |
Warranty period |
Fits Models |
1 | 17110340500 | Front Door Frame (Left) | Left | 1 | 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/1000-11/ATV800/800-7/1000-7/1000-13 | |
1 | 17110340600 | Front Door Frame (Right) | Right | 1 | 1000-13 | |
2 | 16510342200 | Door Outer Handle, Lh | Left | 1 | 1000-13 | |
2 | 16510343200 | Door Outer Handle, Rh | Right | 1 | 1000-13 | |
3 | 16614100070 | Clamp, Outer Handle, Lh | Left | 1 | 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/1000-11/ATV800/800-7/1000-7/1000-13 | |
3 | 16614100090 | Clamp, Outer Handle, Rh | Right | 1 | 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/1000-11/800-7/1000-7/1000-12 | |
4 | 16614100100 | Door Handle Link | 2 | 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/1000-11/ATV800/800-7/1000-7/1000-13 | ||
5 | 04612050025 | Hexagon Lock Nut | M5 | 2 | 1000-13 | |
6 | 16510342100 | Door Lock, Lh | Left | 1 | 1000-13 | |
6 | 16510343100 | Door Lock, Rh | Right | 1 | 1000-13 | |
7 | 01254060166 | Hexagon Flange Bolt | M6X16 | 8 | 1000-13 | |
8 | 17110340910 | Sealing Strip,Glass Door | Seal | 2 | Jul-00 | |
9 | 17110340140 | Side Door Waterproof Srip | L=1000mm | 6 | 1000-13 | |
10 | 17110340321 | Front Door Push-Pull Window | Window | 2 | 1000-13 | |
11 | 17110340312 | Front Door Upper Window | Glass | 2 | 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/1000-11/ATV800/800-7/1000-7/1000-13 | |
12 | 17110340332 | Front Door Lower Window | Glass | 2 | 1000-13 | |
13 | 16510340240 | Door Inner Lock | Switch | 2 | 1000-13 | |
14 | 03424040166 | Cross Shape Bolt | M4X16 | 4 | 1000-13 | |
15 | 16614100050 | Handle | Handle | 2 | 1000-13 | |
16 | 03344080255 | Hexagon Socket Cap Screws | M8×25 | 4 | Not Covered Under Warranty | 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/1000-11/ATV800/800-7/1000-7/1000-13 |
17 | 16510340940 | Window Mud Track | L=690mm | 4 | 1000-13 | |
18 | 17110341000 | Front Window Upper Guide | 2 | 1000-13 | ||
19 | 17210341120 | Front Window Guide Rail Seal | Seal | 2 | ||
20 | 17110341010 | Front Window Lower Guide | Rail | 2 | 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/1000-11/ATV800/800-7/1000-7/1000-13 | |
21 | 17110341050 | Front Window Rail Seal | 2 | |||
22 | 17110340530 | Push-Pull Window Cushion | L=1000mm | 1.56 | 1000-13 | |
23 | 17110341020 | Push-Pull Window Lock | Lock | 2 | 1000-13 | |
24 | 03344060205 | Hex Socket Head Cap Screw | M6×20 | 4 | ||
25 | 06119061805 | Flat Washer | φ6×φ18×1 | 54 | 1000-13 | |
26 | 04312060014 | Cap Nut | M6X14 | 20 | 1000-13 | |
27 | 17110341030 | Push-Pull Window Lock Position Plate | Plate | 2 | 1000-13 | |
28 | 16510340910 | Door Seal | Seal | 2 | ||
29 | 04512080127 | Hexagon Rivet Nut | M8 | 4 | #N/A | |
30 | 04512060127 | Hexagon Rivet Nut | M6 | 50 | 1000-13 | |
31 | 17110341040 | Window Rubber Cushion | Ring | 50 | 1000-11/ATV800/800-7 | |
32 | 06119061805 | Flat Washer | φ6×φ18×1 | 50 | 1000-13 | |
33 | 03414060254 | Hexagon Flange Screw | M6×25 | 50 | 1000-13 | |
34 | 03414060164 | Hexaton Flange Screw | M6×16 | 16 | 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/1000-11/ATV800/800-7/1000-7/1000-13 | |
35 | 15105140001 | Rear View Mirror (Left) | Left | 1 | 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/1000-11/800-7/1000-7/1000-12 | |
35 | 15105150001 | Rear View Mirror (Right) | Right | 1 | 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/1000-11/ATV800/800-7/1000-7/1000-13 | |
36 | 01224060305 | Hexagon Flange Bolt | M6×30 | 4 | 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/1000-11/800-7/1000-7/1000-12 | |
37 | 16610340430 | Door Strap | Strap | 2 | 1000-13 | |
38 | 17110340510 | Front Door Latch Mounting Plate (Left) | Left | 1 | 1000-13 | |
38 | 17110340520 | Front Door Latch Mounting Plate (Right) | Right | 1 | 1000-13 | |
39 | 01256100256 | Hexagon Flange Bolt | M10×25 | 4 | 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/1000-11/ATV800/800-7/1000-7/1000-13 | |
40 | 16510340490 | Latch | Striker | 2 | 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/1000-11/800-7/1000-7/1000-12 | |
41 | 04212120021 | Hexagon Flange Nut | M12×1.75 | 2 | 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/1000-11/ATV800/800-7/1000-7/1000-13 | |
42 | 17110340711 | Door Hinge, Upper, Lh ( Cast Steel) | Left | 1 | ||
42 | 17110340811 | Door Hinge, Upper, Rh ( Cast Steel) | Right | 1 | ||
43 | 17210340721 | Door Static Hinge | 4 | |||
44 | 17110340731 | Door Hinge, Lower, Lh ( Cast Steel) | Left | 1 | ||
44 | 17110340831 | Door Hinge, Lower, Rh ( Cast Steel) | Right | 1 | ||
45 | 17110340531 | Adjustable Hinges ( Cast Steel) | Steel | 4 | ||
46 | 01224080355 | Hex Flange Bolt | M8×35 | 30 | ||
47 | 16510340520 | Adjusting Shim | 2 | 1000-13 |
