  • 2023 Aodes Desertcross 1000-6 HVAC (Fuel System)

    • 2023 Aodes Desertcross 1000-6 HVAC (Fuel System)

    Aodes

    SPECIAL ORDER ONLY PLEASE CALL (320)-358-1994 TO ORDER THANK YOU

    (No reviews yet) Write a Review
    Condition:
    New

    Product Description

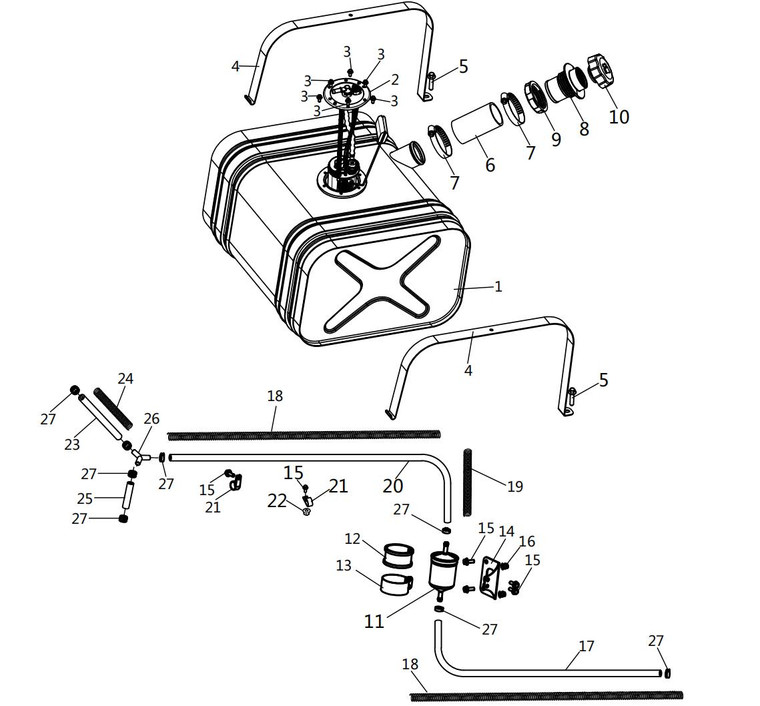

    Item #    		 Part Number Description
    Specification
    Quantity
    Warranty period    		 Fits Models
    1 16604010001 Fuel Tank   1 12 Months (Unlimited Miles) 1000-13
    2 10904080001 Fuel Pump   1 12 Months (Unlimited Miles) 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/1000-11/ATV800/800-7
    3 01224050125 Hex Flange Bolt M5×12 6 Not Covered Under Warranty 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/1000-11/ATV800/800-7/1000-7/1000-13
    4 14604010131 Clamp , Fuel Tank   2 Not Covered Under Warranty Jul-00
    5 01214080506 Hex Flange Bolt M8×50 2 12 Months (Unlimited Miles) 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/1000-11/ATV800/800-7/1000-7/1000-13
    6 16604010100 Fuel Tank Connection Pipe   1 Not Covered Under Warranty 1000-13
    7 10907040020 Clamp φ51-φ70 2 Not Covered Under Warranty 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/1000-11/ATV800/800-7/1000-7/1000-13
    8 16604010080 Fuel Tank Neck   1 Not Covered Under Warranty 1000-13
    9 16604010090 Nut   1 Not Covered Under Warranty 1000-13
    10 16604020000 Fuel Tank Cap   1 Not Covered Under Warranty 1000-13
    11 17104060000 Fuel Filter   1 Not Covered Under Warranty 800-7/1000-13
    12 10904010140 Rubber Lining   0.08 Not Covered Under Warranty 800-7/1000-13
    13 10904060011 Fuel Filter Clamp   1 6 Months (Unlimited Miles) 800-7/1000-13
    14 16504060020 Fuel Filter Clamp Bracket
    15 01254060166 Hex Flange Bolt M6×16 2 Not Covered Under Warranty 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/1000-11/800-7/1000-7/1000-13
    16 04512060127 Rivet Nut M6 1 Not Covered Under Warranty 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/1000-11/800-7/1000-7/1000-12
    17 10404040501 Fuel Hose Φ7.5xΦ14.5 L=610mm 1 Not Covered Under Warranty 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/1000-11/800-7/1000-7/1000-13
    18 10904040080 Fuel Hose Protection Spring L=650mm 1 Not Covered Under Warranty 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/1000-11/ATV800/800-7/1000-7/1000-13
    19 13204040540 Fuel Hose Protection Spring L=300mm
    20 10404040501 Fuel Hose Φ7.5xΦ14.5 L=750mm 1 Not Covered Under Warranty 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/1000-11/800-7/1000-7/1000-13
    21 10109380020 Wire Harness Mounting Clamp Φ2-20 2 Not Covered Under Warranty 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/1000-11/ATV800/800-7/1000-7/1000-13
    15 01254060166 Hex Flange Bolt M6×16 2 Not Covered Under Warranty 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/1000-11/800-7/1000-7/1000-13
    22 04612060026 Hex Flange Locking Nut M6（达克罗银灰色） 1 Not Covered Under Warranty 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/1000-11/ATV800/800-7/1000-7/1000-13
    23 10404040501 Fuel Hose Φ7.5xΦ14.5 L=185mm 1 Not Covered Under Warranty 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/1000-11/ATV800/800-7/1000-7/1000-13
    24 10904040070 Fuel Hose Protection Spring φ17 L=150mm 1 Not Covered Under Warranty 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/1000-11/800-7/1000-7/1000-13
    25 10404040501 Fuel Hose Φ7.5xΦ14.5 L=60mm 1 Not Covered Under Warranty 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/1000-11/ATV800/800-7/1000-7/1000-13
    26 21040402501 Y-Shaped Connector   1 Not Covered Under Warranty 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/1000-11/800-7/1000-7/1000-13
    27 17112010200 Hose Clamp 14.8mm 8 Not Covered Under Warranty 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/1000-11/ATV800/800-7/1000-7/1000-13
