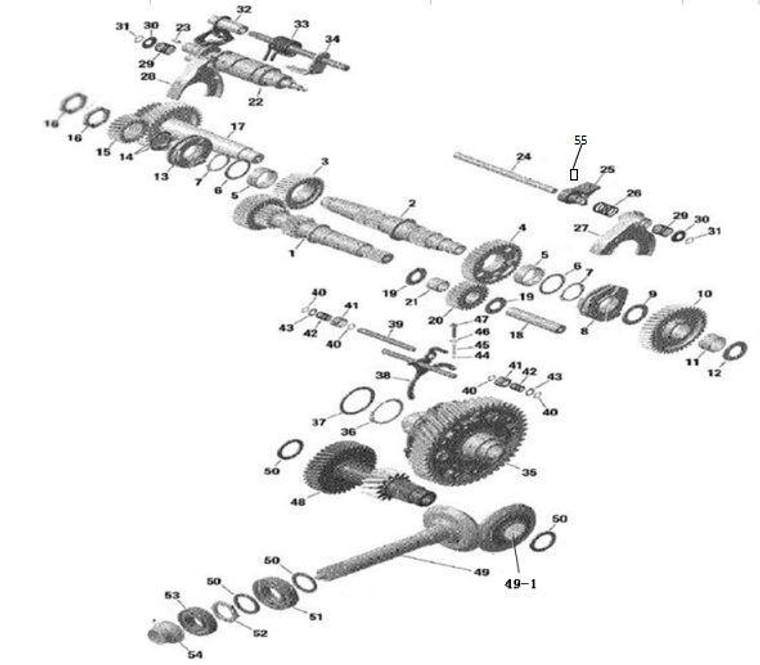

2023 Aodes Desertcross 1000-6 HVAC (Gearbox 3)

Name: 2023 Aodes Desertcross 1000-6 HVAC (Gearbox 3)
Brand: Aodes
Availability: OutOfStock

Aodes

SPECIAL ORDER ONLY PLEASE CALL (320)-358-1994 TO ORDER THANK YOU

(No reviews yet)

Condition:

New

Current Stock:

Item No.	Part Number	Description	Specification	Quantity	Warranty period
1-1	21140207101	Gear Box Left Cover		1	24 Months (Unlimited Miles)
1-2	21140207201	Gear Box Right Cover		1	24 Months (Unlimited Miles)
2	21040105401	Locating Pin		6	Not Covered Under Warranty
3	21040200701	Oil Seal	φ12×φ28×7	1	Not Covered Under Warranty
4	21140200101	Oil Seal	φ40×φ52×7	2	Not Covered Under Warranty
6	21140207401	Ball Bearing	6207 C3	1	Not Covered Under Warranty
7	21140207501	Ball Bearing	6305 LUC3 (single-sided seal)	1	Not Covered Under Warranty
8	21140207601	Ball Bearing	6205-RS (single-sided seal)	2	Not Covered Under Warranty
9	21140207701	Retaining Plate	Large	1	24 Months (Unlimited Miles)
10	21140207801	Flanged Torx Screw	M6x20	5	Not Covered Under Warranty
11	21140207901	Ball Bearing	6306 C3	2	Not Covered Under Warranty
12	21040203001	Bearing Set Plate		1	24 Months (Unlimited Miles)
13	21050907321	Roller Bearing	30207	2	Not Covered Under Warranty
14	21140208101	Ball Bearing.	32011X/J	2	Not Covered Under Warranty
15	01314060451	Flanged Torx Screw	M6x45	11	Not Covered Under Warranty
16	01314080451	Flanged Torx Screw	M8x45	10	Not Covered Under Warranty
17	01314080651	Flanged Torx Screw	M8x65	2	Not Covered Under Warranty
18	21140203102	Hex. Nut	M34	1	Not Covered Under Warranty
19	21140206502	Hex. Nut	M24	2	Not Covered Under Warranty
20	21140208401	Left Cover		1	24 Months (Unlimited Miles)
21	01314060252	Flanged Torx Screw	M6x25	8	Not Covered Under Warranty
22	21140208501	Shift Detent Block		1	24 Months (Unlimited Miles)
23	21140208601	Shift Detent Spring		1	24 Months (Unlimited Miles)
24	21040203401	Step Ring		1	24 Months (Unlimited Miles)
25	21050909401	Index Lever Ass'Y		1	24 Months (Unlimited Miles)
26	21040203601	Locator Spacer		1	Not Covered Under Warranty
27	01224060201	Flanged Torx Screw	M6x20	2	Not Covered Under Warranty
28	21140208701	Parking Lock Lever		1	24 Months (Unlimited Miles)
29	21140208801	Parking Rocker Shaft		1	24 Months (Unlimited Miles)
30	21140208902	Parking Gear		1	24 Months (Unlimited Miles)
31	21140209001	Spring Washer	φ44×φ24.2×2	1	Not Covered Under Warranty
32	21140209102	Hex Nut	M22×1.5	1	Not Covered Under Warranty
33	21140209201	Right Cover Gasket		1	Not Covered Under Warranty
34	21140209301	Right Gearbox Cover		1	24 Months (Unlimited Miles)
35	01314060252	Flanged Torx Screw	M6×25	6	Not Covered Under Warranty
36	21140209401	Hang Bracket, Lh		1	24 Months (Unlimited Miles)
37	21140209501	Hang Bracket, Rh		1	24 Months (Unlimited Miles)
38	01225080251	Hex Flange Bolt	M8x25	6	Not Covered Under Warranty
39	01224060161	Hex Flange Bolt	M6x16	1	Not Covered Under Warranty
