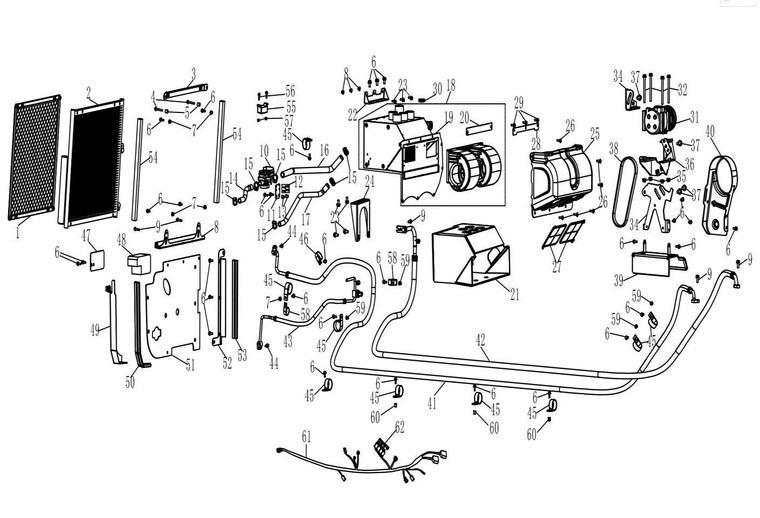

  • 2023 Aodes Desertcross 1000-6 HVAC (HVAC)

    • 2023 Aodes Desertcross 1000-6 HVAC (HVAC)

    Aodes

    SPECIAL ORDER ONLY PLEASE CALL (320)-358-1994 TO ORDER THANK YOU

    (No reviews yet) Write a Review
    Condition:
    New

    Product Description


    Item #    		 Part Number Description
    Specification
    Quantity
    Warranty period    		 Fits Models
    1 16612020031 Radiator Protection Net   1
    2 16614250301 Condenser Condenser 1
    3 17112090021 Upper Condensator Bracket Bracket 1   1000-12A/13A
    4 01214060406 Hex Flange Bolt 6X40 M6×40 2 Not Covered Under Warranty 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/1000-11/800-7/1000-7/1000-12
    5 17112090070 Condenser Spacer   2
    6 01224060165 Hex Flange Bolt M6×16 16 Not Covered Under Warranty 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/1000-11/800-7/1000-7/1000-12
    7 04612060026 Hex Flange Locking Nut M6 2
    8 17112090041 Lower Condensator Bracket Bracket 1   1000-12A/13A
    9 01254060256 Hex Flange Bolt M6×25 2 Not Covered Under Warranty 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/1000-11/800-7/1000-7/1000-12
    10 16514250500 Electric Water Valve Valve 1   1000-13
    11 16514250720 Electric Water Valve, Fixed Plate Plate 1   1000-13
    12 03714420125 Tapping Screws 4.2×12 4 Not Covered Under Warranty 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/1000-11/ATV800/800-7/1000-7/1000-13
    13 04512060027 Rivet Nut M6 2 Not Covered Under Warranty 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/1000-11/800-7/1000-7/1000-12
    14 16612050241 Solenoid Valve, Water Inlet Pipe Pipe 1   1000-13
    15 21040401601 Clamp (12-22) 2
    16 16612050252 Heater Inlet Pipe Pipe 1
    17 17112100060 Heater Outlet Pipe Pipe 1
    18 17114251010 Evaporation Box Assembly   1
    19 17114251060 Evaporation Tanks   1
    20 17114251070 Plate, Evaporation Box   1
    21 17114320010 Evaporation Box Heat Insualtion Film Film 1
    22 17114251030 Evaporation Tank Upper Mounting Plate Evaporator 1
    23 01224080166 Hex Flange Bolt M8×16 3 Not Covered Under Warranty 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/1000-11/800-7/1000-7/1000-12
    24 17114251040 Evaporation Tank Lower Mounting Plate Evaporator 1
    25 17110330090 Fan Guard   1
    26 03414060204 Socket Pan Head Screws M6×20 6
    27 16614250880 Filter Screen Filter 1
    28 17114251050 Air Blower Pressing Plate   1
    29 03414060124 Socket Pan Head Screw M6×12 3
    30 17110330100 O-Ring Ring 1
    31 16614252010 Compressor Compressor 1
    32 01214081056 Hex Flange Bolt M8×105 4 Not Covered Under Warranty 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/1000-11/ATV800/800-7/1000-7/1000-13
    33 04612080026 Hex Flange Locking Nut M8 4 Not Covered Under Warranty 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/1000-11/800-7/1000-7/1000-12
    34 16614252021 Compressor Support Plate Plate 1 Not Covered Under Warranty
    35 16614252040 Upper Adjusted Bracket Bracket 1 Not Covered Under Warranty
    36 16614252090 Compressor Main Bracket Bracket 1
    37 01256100256 Hex Flange Bolt M10×25 4 Not Covered Under Warranty 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/1000-11/ATV800/800-7/1000-7/1000-13
    38 16614252052 Compressor Belt 5PK650 1   1000-13
    39 16614252081 Belt Heat Shield Shield 1 Not Covered Under Warranty
    40 16614250091 Compressor Guard Guard 1 Not Covered Under Warranty
    41 16614250411 Cold Pressure Pipe Line Pipeline 1
    42 16614250421 Steam Pressure Pipe Line Pipeline 1
    43 16614250431 Condenser- Evaporator Pipe Pipeline 1   1000-13
    44 01254060206 Hex Flange Bolt M6×20 2 Not Covered Under Warranty 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/1000-11/ATV800/800-7/1000-7/1000-13
    45 15109380040 Wire Harness Mounting Clamp φ42 6 Not Covered Under Warranty
    46 14712050430 Clip φ33 1 Not Covered Under Warranty 800-3A/800-4A/1000-3A/1000-4A/800-7
    47 16610380080 Wire Hole Cover Windshield 1
    48 17114320310 Sealing Foam For Main Outlet Instrument Panel Panel 1
    49 16610380070 Curved Pipe Cover,Driver Side L=435.5mm 1
    50 16510340910 Sealing Sleeve L=4000mm 0.19
    51 16610380061 Wind Plate   1
    52 16610380090 Curved Pipe Cover,Passenger Side Right 1
    53 16510340910 Sealing Strip L=320mm 1
    54 17114250310 Condensator Dust-Proof Foam L=420mm 2   1000-12A/13A
    55 16614250601 Electronic Temperature Controller Thermostat 1
    56 01224050205 Hex Flange Bolt M5×20 2 Not Covered Under Warranty 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/1000-11/ATV800/800-7/1000-7/1000-13
    57 04612050025 Hexagon Lock Nut M5 2   1000-13
    58 10109380030 Wire Harness Mounting Clamp φ30 1 Not Covered Under Warranty
    59 04512060127 Rivet Nut M6 2 Not Covered Under Warranty 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/1000-11/800-7/1000-7/1000-12
    60 04512060027 Rivet Nut M6 6 Not Covered Under Warranty 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/1000-11/800-7/1000-7/1000-12
    61 16609074212 Ac Harness Harness 1   1000-13
    62 10109330000 2Wd/4Wd Solenoid 2WD 4 12 Months (Unlimited Miles)
