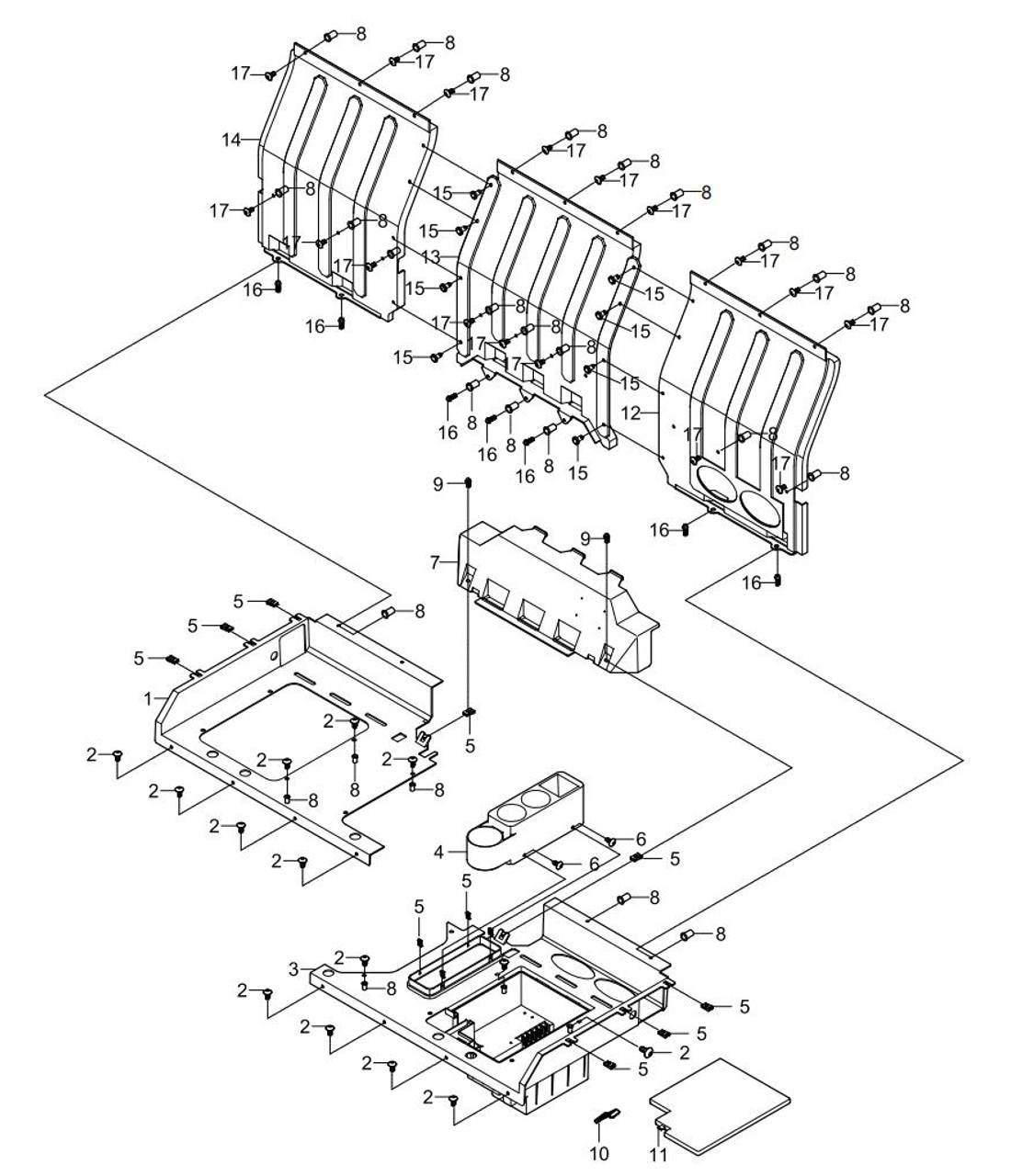

2023 Aodes Desertcross 1000-6 HVAC (Interior Plastic Parts 2)
Item # |
Part Number | Description | Specification |
Quantity |
Warranty period |
Fits Models |
| 1 | 14610280050 | Bottom Plate, Seat, Rh | 1 | Not Covered Under Warranty | ||
| 2 | 03414060164 | Socket Pan Head Screw | M6×16 | 16 | Not Covered Under Warranty | 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/1000-11/800-7/1000-7/1000-12 |
| 3 | 16610280040 | Front Guard, Seat, Lh | 1 | Not Covered Under Warranty | 1000-13 | |
| 4 | 14710350010 | Cup Holder | Holder | 1 | Not Covered Under Warranty | |
| 5 | 04922060025 | Plate Nut (Long) | M6 | 8 | Not Covered Under Warranty | 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/1000-11/ATV800/800-7/1000-7/1000-13 |
| 6 | 03414060124 | Socket Pan Head Screw | M6×12 | 4 | Not Covered Under Warranty | 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/1000-11/800-7/1000-7/1000-12 |
| 7 | 16610280060 | Rear Guard, Seat | Panel | 1 | Not Covered Under Warranty | 1000-13 |
| 8 | 04512060027 | Rivet Nut | M6 | 35 | Not Covered Under Warranty | 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/1000-11/800-7/1000-7/1000-12 |
| 9 | 01224060165 | Hex Flange Bolt | M6×16 | 2 | Not Covered Under Warranty | 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/1000-11/800-7/1000-7/1000-12 |
| 10 | 13610630071 | Storage Box Rubber Strip | Lift | 1 | Not Covered Under Warranty | |
| 11 | 14609090140 | Battery Box Cap | Battery | 1 | Not Covered Under Warranty | |
| 12 | 16610120010 | Back Guard Plate,Lh | Left | 1 | Not Covered Under Warranty | 1000-13 |
| 13 | 16610120020 | Back Guard Plate(Middle) | Middle | 1 | Not Covered Under Warranty | 1000-13 |
| 14 | 16610120030 | Back Guard Plate,Rh | Right | 1 | Not Covered Under Warranty | 1000-13 |
| 15 | 10410190000 | Push Pin | M8x15M | 8 | Not Covered Under Warranty | 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/1000-11/800-7/1000-7/1000-12 |
| 16 | 01224060205 | Hex Flange Bolt | M6×20 | 7 | Not Covered Under Warranty | 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/1000-11/ATV800/800-7/1000-7/1000-13 |
| 17 | 03414060204 | Socket Pan Head Screw | M6×20 | 19 | Not Covered Under Warranty | 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/1000-11/800-7/1000-7/1000-12 |
