2023 Aodes SportCross 1000 (CVT Clutches)

2023 Aodes SportCross 1000 (CVT Clutches)

Aodes

SPECIAL ORDER ONLY PLEASE CALL (320)-358-1994 TO ORDER THANK YOU

(No reviews yet)
Condition:
New
Current Stock:
Description

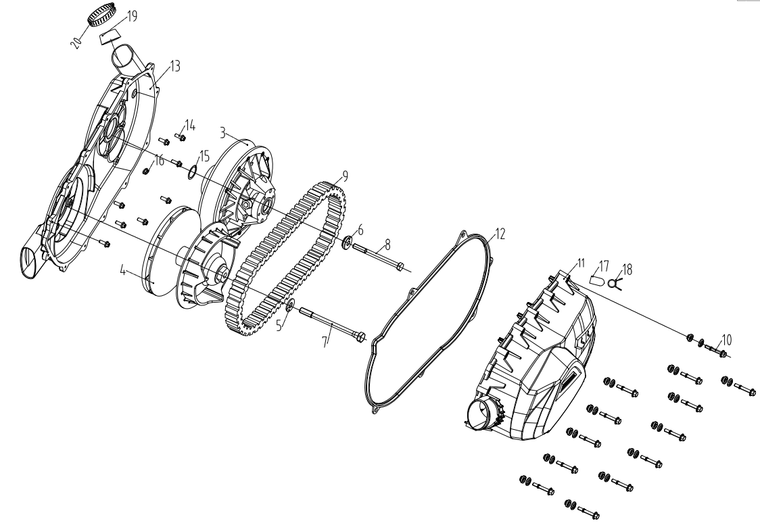

Item # Part Number Description
Specification
Quantity
Warranty Period		 Fits Models
3 21050821000 Secondary Cv-Tech Clutch   1 Not Covered Under Warranty #N/A
3 21050805201 Secondary Cv-Tech Clutch   1 Not Covered Under Warranty #N/A
4 21050811000 Primary Cv-Tech Clutch   1 Not Covered Under Warranty #N/A
4 21050805101 Primary Cv-Tech Clutch   1 Not Covered Under Warranty #N/A
5 060214291235 Drive Wheel Washer ø29.5×ø12.5×3.5 1 Not Covered Under Warranty X2/X4/Raider - 1000Cc/86Hp
6 21040303501 Driven Wheel Washer ø30.1×ø10.2×8.5 1 Not Covered Under Warranty X2/X4/Raider - 1000Cc/86Hp
7 21040303702 Drive Wheel Bolt M12x150 1 Not Covered Under Warranty X2/X4/Raider - 1000Cc/86Hp
8 21040301902 Driven Wheel Bolt M10x115 1 Not Covered Under Warranty X2/X4/Raider - 1000Cc/86Hp
9 21050831000 Cvt Belt   1 Not Covered Under Warranty X2/X4/Raider - 1000Cc/86Hp
9 21050831001 Cvt Belt   1 Not Covered Under Warranty
10 21170104201 Cover Bolt Combination M6x42.5 13 Not Covered Under Warranty X2/X4/Raider - 1000Cc/86Hp
11 21050804302 Outer Clutch Housing   1 Not Covered Under Warranty X2/X4/Raider - 1000Cc/86Hp
12 21050800702 Outer Clutch Housing Gasket   1 Not Covered Under Warranty X2/X4/Raider - 1000Cc/86Hp
13 21050800102 Inner Clutch Housing   1 Not Covered Under Warranty X2/X4/Raider - 1000Cc/86Hp
14 01314060203 Hexagon Large Flange Bolt M6x20 8 Not Covered Under Warranty X2/X4/Raider - 1000Cc/86Hp
15 21040303601 Washer φ32×φ25.1×0.5 4 Not Covered Under Warranty X2/X4/Raider - 1000Cc/86Hp
16 04633060023 Hex Flange Self-Locking Nut M6 1 Not Covered Under Warranty X2/X4/Raider - 1000Cc/86Hp
17 21050804601 Cvt Clutch Housing Drain Plug   1 Not Covered Under Warranty
18 21050804701 Cvt Clutch Housing Drain Plug Clip   1 Not Covered Under Warranty
19 14107040060 Cvt Rear Outlet Pipe   1 Not Covered Under Warranty X2/X4/Raider - 1000Cc/86Hp
20 10907040020 Clamp φ51-φ70 1 Not Covered Under Warranty X2/X4/Raider - 1000Cc/86Hp
