  • 2023 Aodes SportCross 1000 (Engine Throw Out Shaft)

    • 2023 Aodes SportCross 1000 (Engine Throw Out Shaft)

    Aodes

    SPECIAL ORDER ONLY PLEASE CALL (320)-358-1994 TO ORDER THANK YOU

    (No reviews yet) Write a Review
    Condition:
    New

    Product Description

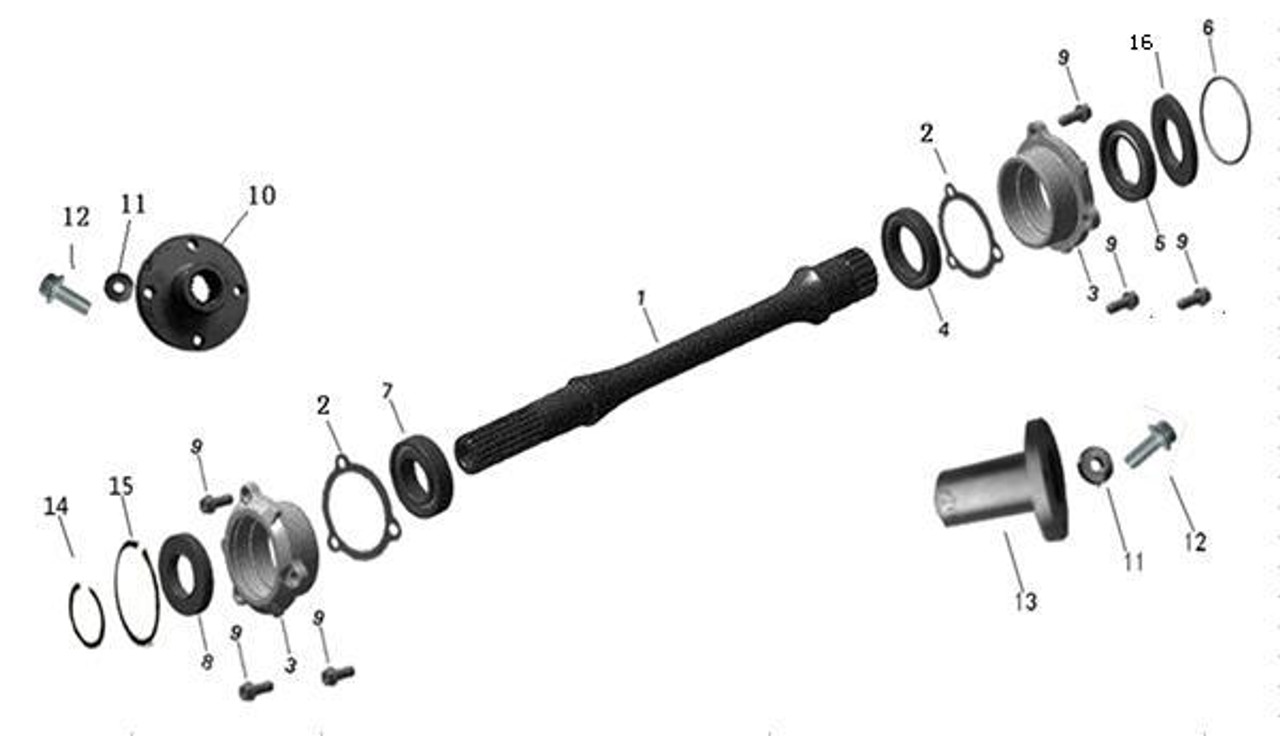

    Item # Part Number Description
    Specification
    Quantity
    Warranty Period    		 Fits Models
    1 21051000101 Front Output Driveshaft   1 24 Months (Unlimited Miles) X2/X4/Raider - 1000Cc/86Hp
    2 21040116201 Bearing Race Paper Gasket   2 Not Covered Under Warranty X2/X4/Raider - 1000Cc/86Hp
    3 21040115501 Bearing Race   2 24 Months (Unlimited Miles) X2/X4/Raider - 1000Cc/86Hp
    4 09160061906 Bearing 6906 1 Not Covered Under Warranty X2/X4/Raider - 1000Cc/86Hp
    5 21040115701 Oil Seal φ30×φ47×7 1 Not Covered Under Warranty X2/X4/Raider - 1000Cc/86Hp
    6 21040115801 O-Ring φ47×2 1 Not Covered Under Warranty X2/X4/Raider - 1000Cc/86Hp
    7 09160006005 Bearing 6005 1 Not Covered Under Warranty X2/X4/Raider - 1000Cc/86Hp
    8 21040116101 Oil Seal φ25×φ47×7 1 Not Covered Under Warranty X2/X4/Raider - 1000Cc/86Hp
    9 01224060161 Hex Flange Bolt M6x16 6 Not Covered Under Warranty X2/X4/Raider - 1000Cc/86Hp
    10 21040206402 Front Output Shaft Flange   1 24 Months (Unlimited Miles) X2/X4/Raider - 1000Cc/86Hp
    11 060214291235 Transmission Shaft Connection Flange Gasket (Lock Gasket) 29.5×12.5x3.5 2 Not Covered Under Warranty X2/X4/Raider - 1000Cc/86Hp
    12 21051001501 Drive Shaft Connecting Flange Bolts M12×1.25×25 2 Not Covered Under Warranty X2/X4/Raider - 1000Cc/86Hp
    13 21051001001 Rear Drive Shaft Connecting Flange   1 24 Months (Unlimited Miles) X2/X4/Raider - 1000Cc/86Hp
    14 21040206101 Front Output Shaft Retaining Ring   1 Not Covered Under Warranty X2/X4/Raider - 1000Cc/86Hp
    15 07011470001 Bearing Housing Retaining Ring φ47 1 Not Covered Under Warranty X2/X4/Raider - 1000Cc/86Hp
    16 21040115901 Seal   1 Not Covered Under Warranty X2/X4/Raider - 1000Cc/86Hp
