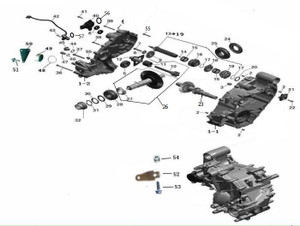

2023 Aodes SportCross 1000 (Gear Box 2)
| Item # | Part Number | Description | Specification |
Quantity |
Warranty Period |
Fits Models |
| 1 | 21050906111 | Gear Box Left Cover | 1 | 24 Months (Unlimited Miles) | X2/X4/Raider - 1000Cc/86Hp | |
| 2 | 21050906201 | Parking Rocker | 1 | 24 Months (Unlimited Miles) | X2/X4/Raider - 1000Cc/86Hp | |
| 3 | 21050906301 | Parking Rocker Bushing | 1 | 24 Months (Unlimited Miles) | X2/X4/Raider - 1000Cc/86Hp | |
| 4 | 09161006303 | Secondary Shaft Left Bearing | 6303E | 1 | Not Covered Under Warranty | X2/X4/Raider - 1000Cc/86Hp |
| 5 | 09160006305 | Ball Bearing | 6305 | 1 | Not Covered Under Warranty | All Models 800/1000Cc(86Hp) |
| 6 | 01224060161 | Hex Flange Screw | M6x16 | 1 | Not Covered Under Warranty | X2/X4/Raider - 1000Cc/86Hp |
| 7 | 21050906701 | Step Screw | M6 | 1 | Not Covered Under Warranty | X2/X4/Raider - 1000Cc/86Hp |
| 8 | 21040201801 | Oil Seal | 32×47×7 | 1 | Not Covered Under Warranty | X2/X4/Raider - 1000Cc/86Hp |
| 9 | 21040201501 | O-Ring | Ф24×2 | 1 | Not Covered Under Warranty | X2/X4/Raider - 1000Cc/86Hp |
| 10 | 21040201601 | Rear Axle Sleeve | ø32×ø25×11.4 | 1 | Not Covered Under Warranty | X2/X4/Raider - 1000Cc/86Hp |
| 11 | 01224060553 | Hex Flange Bolt | M6x55 | 13 | Not Covered Under Warranty | X2/X4/Raider - 1000Cc/86Hp |
| 12 | 01224060351 | Hex Flange Bolt | M6x35 | 3 | Not Covered Under Warranty | All Models 800/1000 |
| 13 | 21050907301 | Gear | 1 | 24 Months (Unlimited Miles) | #N/A | |
| 14 | 21050902903 | Roller Bearing | 32206 | 1 | Not Covered Under Warranty | X2/X4/Raider - 1000Cc/86Hp |
| 15 | 21050907501 | Roller Bearing | 1 | Not Covered Under Warranty | X2/X4/Raider - 1000Cc/86Hp | |
| 16 | 21050907601 | Lock Nut | M24x1.5 | 1 | Not Covered Under Warranty | X2/X4/Raider - 1000Cc/86Hp |
| 17 | 21050907701 | Reverse Gear Shaft | ø25×ø18×41 | 1 | 24 Months (Unlimited Miles) | X2/X4/Raider - 1000Cc/86Hp |
| 18 | 06224253404 | Thrust Washer | 34×25×1 | 2 | Not Covered Under Warranty | X2/X4/Raider - 1000Cc/86Hp |
| 19 | 10031252910 | Needle Bearing | K252910 | 1 | Not Covered Under Warranty | All Models 800/1000Cc(86Hp) |
| 20 | 21050908001 | Reverse Gear Wheel | 19T | 1 | 24 Months (Unlimited Miles) | X2/X4/Raider - 1000Cc/86Hp |
| 21 | 21050908101 | Countershaft Assembly (Contains Countershaft And Countershaft Gear) | 44T | 1 | 24 Months (Unlimited Miles) | X2/X4/Raider - 1000Cc/86Hp |
| 22 | 21050908201 | Needle Bearing | 25×29x12.7 | 3 | Not Covered Under Warranty | X2/X4/Raider - 1000Cc/86Hp |
| 23 | 21050908303 | Counter Shaft Reverse Gear | 34T | 1 | 24 Months (Unlimited Miles) | X2/X4/Raider - 1000Cc/86Hp |
| 24 | 21050909601 | Shaft Retaining Ring | Ф27 | 3 | Not Covered Under Warranty | X2/X4/Raider - 1000Cc/86Hp |
| 25 | 21050908503 | Low Gear | 1 | 24 Months (Unlimited Miles) | X2/X4/Raider - 1000Cc/86Hp | |
| 26 | 21050908603 | Counter Shaft Low Gear | 44T | 1 | 24 Months (Unlimited Miles) | X2/X4/Raider - 1000Cc/86Hp |
| 27 | 21050908703 | Secondary Shaft High Gear | 36T | 1 | 24 Months (Unlimited Miles) | X2/X4/Raider - 1000Cc/86Hp |
| 28 | 21050908803 | Gear Shifting Drum | 1 | 24 Months (Unlimited Miles) | X2/X4/Raider - 1000Cc/86Hp | |
| 29 | 09161006303 | Secondary Shaft Right Bearing | 6303E | 1 | Not Covered Under Warranty | X2/X4/Raider - 1000Cc/86Hp |
| 30 | 21050909001 | High-Grade Shift Fork | 1 | 24 Months (Unlimited Miles) | X2/X4/Raider - 1000Cc/86Hp | |
| 31 | 21050909101 | Shift Fork Shaft | 1 | 24 Months (Unlimited Miles) | X2/X4/Raider - 1000Cc/86Hp | |
| 32 | 21050909201 | Low Range Shift Fork | 1 | 24 Months (Unlimited Miles) | X2/X4/Raider - 1000Cc/86Hp | |
| 33 | 21040203301 | Locator Spring | 1 | Not Covered Under Warranty | X2/X4/Raider - 1000Cc/86Hp | |
| 34 | 21040203401 | Locator Shaft | 1 | 24 Months (Unlimited Miles) | X2/X4/Raider - 1000Cc/86Hp | |
| 35 | 21050909401 | Locator | 1 | 24 Months (Unlimited Miles) | X2/X4/Raider - 1000Cc/86Hp | |
| 36 | 21040203601 | Locator Spacer | 1 | Not Covered Under Warranty | X2/X4/Raider - 1000Cc/86Hp | |
| 37 | 01314060203 | Hexagon Large Flange Bolt | M6x20 | 1 | Not Covered Under Warranty | X2/X4/Raider - 1000Cc/86Hp |
| 38 | 21040206301 | Rubber Isolation Gearbox Mount | 2 | Not Covered Under Warranty | X2/X4/Raider - 1000Cc/86Hp | |
| 39 | 21040402401 | Wire Harness Clamping Plate | 2 | Not Covered Under Warranty | X2/X4/Raider - 1000Cc/86Hp | |
| 40 | 01224060121 | Hex Flange Bolt | M6x12 | 1 | Not Covered Under Warranty | All Long Travel 800/1000 Units |
| 41 | 21040203001 | Bearing Plate | 1 | 24 Months (Unlimited Miles) | X2/X4/Raider - 1000Cc/86Hp | |
| 42 | 21050907321 | Bearing | 30207 | 1 | Not Covered Under Warranty | X2/X4/Raider - 1000Cc/86Hp |
| 43 | 21050907331 | Rear Output Shaft Driving Gear | 45T | 1 | 24 Months (Unlimited Miles) | X2/X4/Raider - 1000Cc/86Hp |
| 44 | 21050907401 | Rear Output Driving Shaft Adjusting Gasket | Ф60.3×Ф71.7×1.35 | 1 | Not Covered Under Warranty | X2/X4/Raider - 1000Cc/86Hp |
