2023 Kymco MXU 150x Parts
KYMCO
$0.00
(No reviews yet)
Write a Review
KYMCO

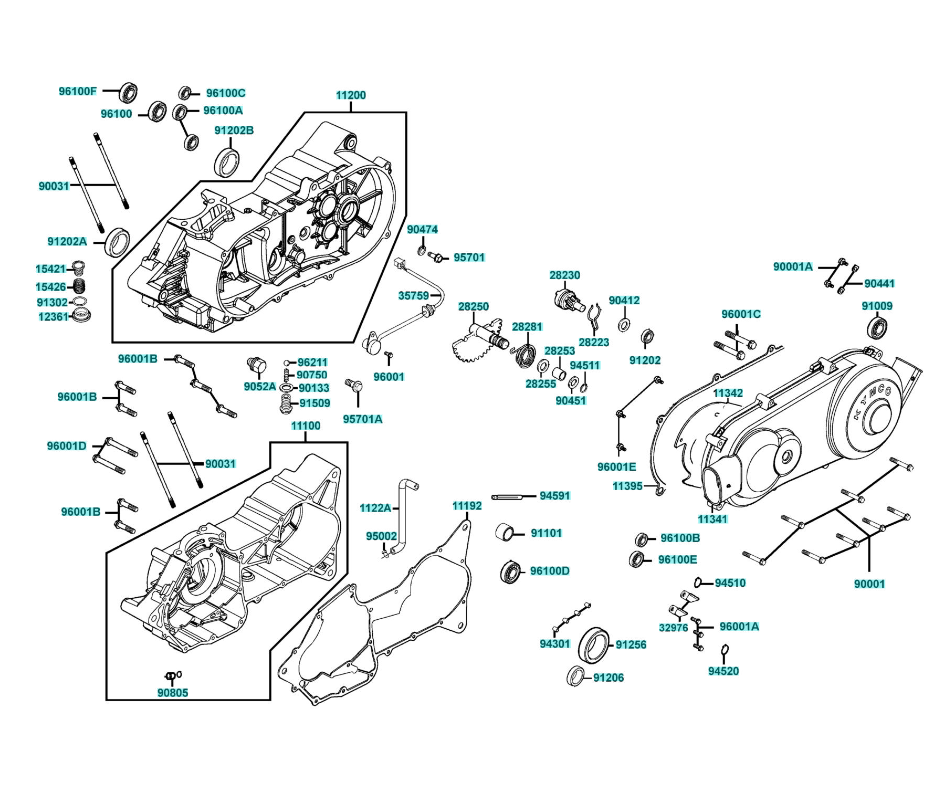

2023 Kymco MXU 150x Parts
| Parts No./Description | Part Q'ty | Min Order Q'ty | MSRP |
| 11100-LLB1-910 CRANK CASE COMP RIGHT |
1 | 1 | USD $ 149.38 |
| 11192-LLB1-900 GASKET CRANK CASE A |
1 | 1 | USD $ 24.37 |
| 11200-LLB1-900 CRANK CASE COMP LEFT |
1 | 1 | USD $ 115.13 |
| 1122A-LLB1-900 TUBE ASSY MISSION BREATHER |
1 | 1 | USD $ 4.99 |
| 11341-LCA4-E00-N8A COVER L (Bright Silver) |
1 | 1 | USD $ 96.86 |
| 11342-LCA4-E00 PLATE L COVER |
1 | 1 | USD $ 6.50 |
| 11395-LLB1-900 GASKET L COVER A |
1 | 1 | USD $ 20.81 |
| 12361-GFY6-901 HOLE CAP TAPPET ADJUSTING |
1 | 1 | USD $ 4.35 |
| 15421-1G07-001 SCREEN OIL FILTER |
1 | 1 | USD $ 5.60 |
| 15426-GAE1-921 SPG OIL FILTER SCREEN |
1 | 1 | USD $ 2.10 |
| 28223-KNBN-901 SPG KICK DRIVEN GEAR |
1 | 1 | USD $ 1.83 |
| 28230-GHAH-721 GEAR COMP KICK DRIVEN |
1 | 1 | USD $ 31.22 |
| 28250-LCA4-E00 SPINDLE COMP KICK STARTER |
1 | 1 | USD $ 28.90 |
| 28253-GBN2-60A BUSH KICK SPINDLE |
1 | 1 | USD $ 4.77 |
| 28255-GFS6-001 COLLAR KICK BOSS |
1 | 1 | USD $ 3.77 |
| 28281-GBN2-60A SPRING KICK RETURN |
1 | 1 | USD $ 8.42 |
| 32976-1G07-001 CLAMPER WIRE HARNESS |
2 | 1 | USD $ 2.25 |
| 35759-LLB1-900 SW ASSY GEAR CHANGE |
1 | 1 | USD $ 35.18 |
| 90001-GBHB-711 BOLT FLANGE SHF 6X40 |
8 | 1 | USD $ 1.83 |
| 90001-GFY6-901 SOCKET BOLT 6*10 |
2 | 1 | USD $ 1.68 |
| 90031-KEBE-900 BOLT A STUD 8*218 |
4 | 1 | USD $ 6.71 |
| 90133-LLB1-900 WASHER BOLT SEAT |
1 | 1 | USD $ 0.97 |
| 90412-3K29-001 WASHER THRUST 10M/M |
1 | 1 | USD $ 2.80 |
| 90441-KDY4-901 PLATE BRG HOLD |
2 | 1 | USD $ 1.83 |
| 90451-1E55-001 WASHER 14MM |
1 | 1 | USD $ 1.94 |
| 90474-3C33-001 WASHER 8MM |
1 | 1 | USD $ 1.06 |
| 9052A-LEB1-900 BOLT ASSY DRAIN PLUG |
1 | 1 | USD $ 6.09 |
| 90750-LLB1-900 SPRING BOLT SEAT INNER |
1 | 1 | USD $ 1.55 |
| 90805-GBHB-901 CONE TYPE PLUG 6*7 |
1 | 1 | USD $ 1.83 |
| 91009-KKC3-900 BRG BALL RADIAL 6300LLUC3/2A |
1 | 1 | USD $ 19.58 |
| 91101-LLB1-90A BRG NEEDLE 30*42*17 |
1 | 1 | USD $ 56.48 |
| 91202-3B02-001 OIL SEAL 14*24*5 |
1 | 1 | USD $ 9.56 |
| 91202-KKJ9-004 OIL SEAL 20*32*6 |
1 | 1 | USD $ 2.52 |
| 91202-LHG7-E00 OIL SEAL 22X34X6 |
1 | 1 | USD $ 6.42 |
| 91206-2F86-014 OIL SEAL 14*28*7 |
1 | 1 | USD $ 6.02 |
| 91256-LLB1-900 OIL SEAL 24.8*52.2*7 |
1 | 1 | USD $ 1.93 |
| 91302-001-0210 O-RING 30.8M/M |
1 | 1 | USD $ 2.49 |
| 91509-LLB1-900 BOLT SEAT BALL STOPPER |
1 | 1 | USD $ 4.77 |
| 94301-10160 DOWEL PIN 10*16 |
4 | 1 | USD $ 1.12 |
| 94510-20000 CIR CLIP EX 20 |
1 | 1 | USD $ 2.38 |
| 94511-14000 CIR CLIP EX 14 |
1 | 1 | USD $ 2.38 |
| 94520-52000 CIR CLIP IN 52 |
1 | 1 | USD $ 3.92 |
| 94591-LLB1-900 CLIP 2X100 |
1 | 1 | USD $ 1.81 |
| 95002-02150 CLIP B14.5 TUBE |
1 | 1 | USD $ 1.83 |
| 95701-08012-06 BOLT FLANGE 8*12 |
1 | 1 | USD $ 2.32 |
| 95701-10012-06 BOLT FLANGE 10X12 |
1 | 1 | USD $ 1.22 |
| 96001-06010-06 BOLT FLANGE 6*10 |
1 | 1 | USD $ 0.73 |
| 96001-06012-06 BOLT FLANGE SH 6*12 |
1 | 1 | USD $ 0.73 |
| 96001-06032-06 BOLT FLANGE SH 6*32 |
1 | 1 | USD $ 4.26 |
| 96001-06040-06 BOLT FLANGE SH 6*40 |
1 | 1 | USD $ 4.51 |
| 96001-06060-06 BOLT FLANE 6*60 |
1 | 1 | USD $ 1.33 |
| 96001-GFY6-900 BOLT SPECIAL 5*10 |
3 | 1 | USD $ 1.83 |
| 96100-62020-00 BEARING BALL RADIAL 6202 |
1 | 1 | USD $ 19.43 |
| 96100-62030-00 BRG BALL RADIAL 6203 |
2 | 1 | USD $ 17.07 |
| 96100-62040-00 BEARING BALL RADIAL 6204 |
1 | 1 | USD $ 19.72 |
| 96100-62043-00-M1 BEARING BALL RADIAL 6204 |
1 | 1 | USD $ 17.52 |
| 96100-62043-00-invalid BEARING BALL RADIAL 6204 |
1 | 1 | USD $ 21.83 |
| 96100-62050-00 BEARING BALL RADIAL 6205 |
1 | 1 | USD $ 21.14 |
| 96100-63020-00 BRG BALL RADIAL 6302 |
1 | 1 | USD $ 18.94 |
| 96100-63030-00 BEARING BALL RADIAL 6303 |
1 | 1 | USD $ 17.26 |
| 96211-12000 BALL STEEL #12 |
1 | 1 | USD $ 1.83 |
