2023 KYMCO MXU 450i (Post Steering)
KYMCOSPECIAL ORDER ONLY PLEASE CALL (320)-358-1994 TO ORDER THANK YOU
(No reviews yet)
Write a Review
KYMCO

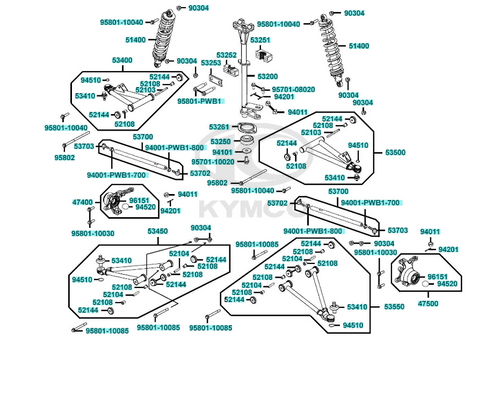

2023 KYMCO MXU 450i (Post Steering)
| No. | Parts No./Description | Part Q'ty | Min Order Q'ty | Price |
| 1 | 47400-PWB1-900 KNUCKLE STEERING-RH ASSEMBLY |
1 | 1 | USD $ 91.67 |
| 2 | 47500-PWB1-900 KNUCKLE STEERING-LH ASSEMBLY |
1 | 1 | USD $ 91.67 |
| 3 | 51400-PWB1-900-MBS CUSHION ASSY FR |
2 | 1 | USD $ 145.67 |
| 4 | 52103-PWB1-900 SLEEVE SUSPENSION |
2 | 1 | USD $ 15.65 |
| 5 | 52104-PWB1-900 SLEEVE SUSPENSION |
4 | 1 | USD $ 8.54 |
| 6 | 52108-PWB1-900 BUSHING SUSPENSION |
12 | 1 | USD $ 4.21 |
| 7 | 52144-PWB1-900 SEAL SUSPENSION |
12 | 1 | USD $ 4.50 |
| 8 | 53200-PWB1-900 POST STEERING |
1 | 1 | USD $ 131.49 |
| 9 | 53250-PWB1-900 BEARING STEERING-LOW SPEED |
1 | 1 | USD $ 35.22 |
| 10 | 53251-PWB1-900 HOUSING LOWER |
1 | 1 | USD $ 12.86 |
| 11 | 53252-PWB1-900 HOUSING UPPER |
1 | 1 | USD $ 14.37 |
| 12 | 53253-PWB1-900 CAP HOUSING |
1 | 1 | USD $ 3.77 |
| 13 | 53261-PWB1-900 FLANGE BEARING-TWO MTG HOLE |
1 | 1 | USD $ 4.50 |
| 14 | 53400-PRB1-900-MBS A-ARM FRONT-UPPER-RH-ASSY |
1 | 1 | USD $ 102.63 |
| 15 | 53410-PRB1-900 BALL JOINT ASSY |
1 | 1 | USD $ 72.99 |
| 16 | 53450-PWB1-900-MBS A-ARM FRONT LOWER RH/LH ASSY |
1 | 1 | USD $ 134.33 |
| 17 | 53500-PRB1-900-MBS A-ARM FRONT-UPPER-LH-ASSY |
1 | 1 | USD $ 105.07 |
| 18 | 53550-PWB1-900-MBS A-ARM FRONT LOWER RH/LH ASSY |
1 | 1 | USD $ 134.33 |
| 19 | 53700-PWB1-900  TIE ROD -ASSY |
2 | 1 | USD $ 52.43 |
| 20 | 53702-PWB1-900 JOINT R BALL |
2 | 1 | USD $ 37.82 |
| 21 | 53703-PWB1-900 JOINT L BALL |
2 | 1 | USD $ 37.82 |
| 22 | 90304-GLW0-90A NUT U FLANGE 10MM |
10 | 1 | USD $ 3.49 |
| 23 | 94001-PWB1-700 NUT HEX LH 10MM |
2 | 1 | USD $ 1.83 |
| 24 | 94001-PWB1-800 NUT HEX 10MM |
2 | 1 | USD $ 8.12 |
| 25 | 94011-LKA8-E00 NUT CASTLE 10MM |
4 | 1 | USD $ 8.18 |
| 26 | 94101-PWB1-900 WASHER FLAT |
1 | 1 | USD $ 1.97 |
| 27 | 94201-25250 PIN SPLIT 2.5*25 |
4 | 1 | USD $ 0.70 |
| 28 | 94510-PWB1-900 CIRCLIP EX 29 |
4 | 1 | USD $ 1.97 |
| 29 | 94520-55000 CIR CLIP IN 55 |
2 | 1 | USD $ 5.19 |
| 30 | 95701-08020-06 BOLT FLANGE 8*20 |
2 | 1 | USD $ 1.41 |
| 31 | 95701-10020-06 BOLT FLANGE 10*20 |
1 | 1 | USD $ 2.32 |
| 32 | 95801-10030-06 BOLT FLANGE 10*30 |
4 | 1 | USD $ 6.21 |
| 33 | 95801-10040-06 BOLT FLANGE 10*40 |
1 | 1 | USD $ 8.03 |
| 34 | 95801-10085-06 BOLT FLANGE 10*85 |
4 | 1 | USD $ 7.28 |
| 35 | 95801-PWB1-900 SCREW SHOULDER-HFH M8 |
2 | 1 | USD $ 9.54 |
| 36 | 95802-PWB1-900 SCREW CAP-HFH M10X1.25X180 |
2 | 1 | USD $ 17.55 |
| 37 | 96151-PWB1-900 BEARING WHEEL |
2 | 1 | USD $ 64.67 |
