2023 KYMCO MXU 450i (Starting Motor/Stator)
KYMCOSPECIAL ORDER ONLY PLEASE CALL (320)-358-1994 TO ORDER THANK YOU
(No reviews yet)
Write a Review
KYMCO

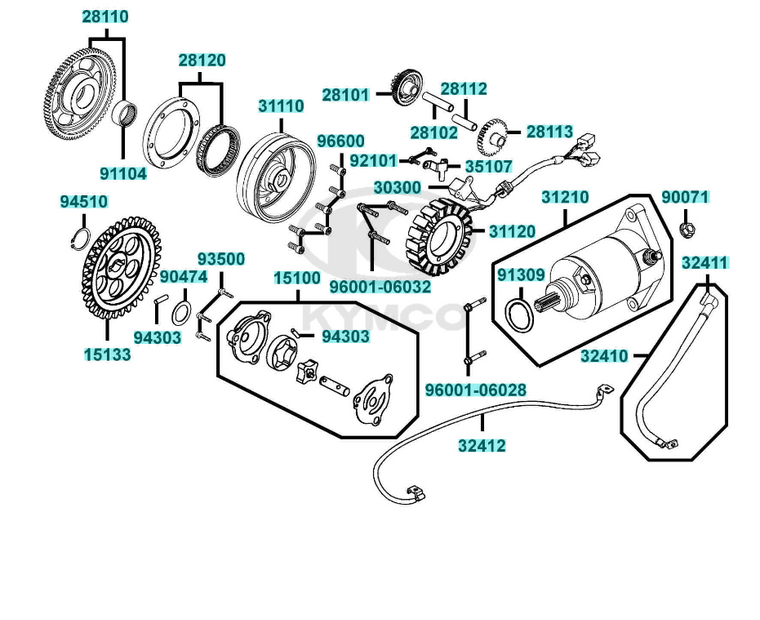

2023 KYMCO MXU 450i (Starting Motor/Stator)
| No. | Parts No./Description | Part Q'ty | Min Order Q'ty | Price |
| 1 | 15100-PWB1-900 OIL PUMP ASSY |
1 | 1 | USD $ 53.93 |
| 2 | 15133-PWB1-900 SPROCKET OIL PUMP DRIVEN |
1 | 1 | USD $ 27.99 |
| 3 | 28101-PWB1-900 GEAR STARTER REDUCTION |
1 | 1 | USD $ 45.47 |
| 4 | 28102-PWB1-900 SHAFT STARTER REDUCTION GEAR |
1 | 1 | USD $ 5.74 |
| 5 | 28110-PWB1-900 GEAR COMP STARTING CLUTCH |
1 | 1 | USD $ 89.28 |
| 6 | 28112-PWB1-900 SHAFT A STARTER REDUCTION GEAR |
1 | 1 | USD $ 5.74 |
| 7 | 28113-PWB1-900 GEAR A STARTER REDUCTION |
1 | 1 | USD $ 33.55 |
| 8 | 28120-PWB1-90A OUTER COMP. STARTING CLUTCH |
1 | 1 | USD $ 150.96 |
| 9 | 30300-KED9-900 GENERATOR COMP PULSE |
1 | 1 | USD $ 39.61 |
| 10 | 31110-PTA1-800  FLYWHEEL COMP (D406) |
1 | 1 | USD $ 105.65 |
| 11 | 31120-LFA5-E00 STATOR COMP (D406) |
1 | 1 | USD $ 108.82 |
| 12 | 31210-PTA1-800 MOTOR UNIT STARTER |
1 | 1 | USD $ 209.09 |
| 13 | 32410-PTA1-800 CABLE STARTER MOTOR |
1 | 1 | USD $ 48.69 |
| 14 | 32411-2C53-001 COVER STARTING MOTOR TERMINAL |
1 | 1 | USD $ 3.77 |
| 15 | 32412-PTA1-800 CABLE EARTH |
1 | 1 | USD $ 55.22 |
| 16 | 35107-PWB1-900 STAY A ACG STATOR |
1 | 1 | USD $ 3.36 |
| 17 | 90071-MLB0-001 NUT WASH 6MM |
1 | 1 | USD $ 1.83 |
| 18 | 90474-1G47-001 WASHER 10.5MM |
1 | 1 | USD $ 0.97 |
| 19 | 91104-PWB1-90A BRG NEEDLE 31X39X18 |
1 | 1 | USD $ 56.48 |
| 20 | 91309-4E25-004 O-RING 24.4X3.1 |
1 | 1 | USD $ 1.83 |
| 21 | 92101-05012-0G BOLT HEX 5*12 |
1 | 1 | USD $ 4.26 |
| 22 | 93500-06025-0FN SCREW PAN 6X25 |
1 | 1 | USD $ 9.29 |
| 23 | 94303-04160 PIN 4x16 |
2 | 1 | USD $ 2.02 |
| 24 | 94510-10000 CIR CLIP EX 10 |
1 | 1 | USD $ 1.83 |
| 25 | 96001-06028-08N BOLT FLANGE SH 6X28 |
2 | 1 | USD $ 1.71 |
| 26 | 96001-06032-06N BOLT FLANGE SH 6X32 |
1 | 1 | USD $ 4.51 |
| 27 | 96600-LDB5-E00 SOCKET BOLT 8*20 |
6 | 1 | USD $ 2.80 |
