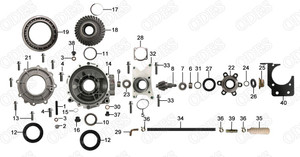

Product Description
Item # |
Part Number |
Description |
Specification |
Quantity |
Warranty Period |
Fits Models |
| 1 | 07011620204 | Internal Snap-Ring | φ62 | 2 | Not Covered Under Warranty | 800-4C(19)/ATV800(19) |
| 2 | 09160106007 | Deep Groove Ball Bearing | 60O7 | 2 | Not Covered Under Warranty | 800-4C(19)/ATV800(19) |
| 3 | 21120100101 | Front Differential Pinion Gear | 1 | 12 Months(Unlimited Miles) | 800-4C(19)/ATV800(19) | |
| 4 | 10030001512 | Needle Bearing | Hk1512 | 1 | Not Covered Under Warranty | 800-4C(19)/ATV800(19) |
| 5 | 21120100201 | Gasket | φ57×φ40×1.5 | 1 | Not Covered Under Warranty | 800-4C(19)/ATV800(19) |
| 6 | 21120100301 | Rubber Gasket | 1 | Not Covered Under Warranty | 800-4C(19)/ATV800(19) | |
| 7 | 11010243808 | Oil Seal | NAK TC9 24 38 8/12 | 2 | Not Covered Under Warranty | 800-4C(19)/ATV800(19) |
| 8 | 21120100401 | Gear, Short C.V. Shaft | 1 | 12 Months(Unlimited Miles) | 800-4C(19)/ATV800(19) | |
| 9 | 21120100501 | Spider Gear | 2 | 12 Months(Unlimited Miles) | 800-4C(19)/ATV800(19) | |
| 10 | 21120100601 | Spider Gear Shaft | 1 | 12 Months(Unlimited Miles) | 800-4C(19)/ATV800(19) | |
| 11 | 21120100701 | Spherical Spider Gear Washer | 2 | Not Covered Under Warranty | 800-4C(19)/ATV800(19) | |
| 12 | 21120100801 | Side Cover | 1 | Not Covered Under Warranty | 800-4C(19)/ATV800(19) | |
| 13 | 21120100901 | Ring Gear | 1 | 12 Months(Unlimited Miles) | 800-4C(19)/ATV800(19) | |
| 14 | 21120101101 | Front Differential Case | 1 | 12 Months(Unlimited Miles) | 800-4C(19)/ATV800(19) | |
| 15 | 09160061912 | Deep Groove Ball Bearing | 61912 | 1 | Not Covered Under Warranty | 800-4C(19)/ATV800(19) |
| 16 | 21120101201 | O Ring | φ140×2.65 | 1 | Not Covered Under Warranty | 800-4C(19)/ATV800(19) |
| 17 | 01225080251 | Hex Flange Bolt | M8×25 | 6 | Not Covered Under Warranty | 800-7/800-3C/800-4C/ATV800/800-3A(19)/800-4A |
| 18 | 21120101301 | Front Differential Cover | 1 | 12 Months(Unlimited Miles) | 800-4C(19)/ATV800(19) | |
| 19 | 21120101401 | Gear, Long C.V. Shaft | 1 | 12 Months(Unlimited Miles) | 800-4C(19)/ATV800(19) | |
| 20 | 21120101501 | Thrust Washer | φ84×φ73×0.1 | 1 | Not Covered Under Warranty | 800-4C(19)/ATV800(19) |
| 20 | 21120101601 | Thrust Washer | φ84×φ73×0.2 | 1 | Not Covered Under Warranty | 800-4C(19)/ATV800(19) |
| 20 | 21120101701 | Thrust Washer | φ84×φ73×0.5 | 1 | Not Covered Under Warranty | 800-4C(19)/ATV800(19) |
| 21 | 21120101801 | Shifting Fork Spline Housing | 1 | 12 Months(Unlimited Miles) | 800-4C(19)/ATV800(19) | |
| 22 | 21120101901 | Spline Housing | 1 | 12 Months(Unlimited Miles) | 800-4C(19)/ATV800(19) | |
| 23 | 09160016007 | Deep Groove Ball Bearing | 160O7 | 1 | Not Covered Under Warranty | 800-4C(19)/ATV800(19) |
| 24 | 21120102001 | Hex Socket Screwed Plug | M8×1.25×10 | 1 | Not Covered Under Warranty | 800-4C(19)/ATV800(19) |
| 25 | 01224080201 | Hex Flange Bolt | M8×20 | 3 | Not Covered Under Warranty | 800-4C(19)/ATV800(19) |
| 26 | 21120103801 | Shifting Fork | 1 | 12 Months(Unlimited Miles) | 800-4C(19)/ATV800(19) | |
| 27 | 21120102301 | Shifting Fork Shaft | 1 | 12 Months(Unlimited Miles) | 800-4C(19)/ATV800(19) | |
| 28 | 21120102401 | 2Wd/4Wd Actuator | 1 | Not Covered Under Warranty | 800-4C(19)/ATV800(19) | |
| 29 | 01114100181 | Hex Flange Bolt | M10×1.25×18 | 6 | Not Covered Under Warranty | 800-4C(19)/ATV800(19) |
| 30 | 21120102501 | Washer | φ20×φ10.5×2 | 6 | Not Covered Under Warranty | 800-4C(19)/ATV800(19) |
| 31 | 21120102601 | Front Axle Input Shaft Flange | 1 | 12 Months(Unlimited Miles) | 800-4C(19)/ATV800(19) | |
| 32 | 21120102701 | Hex Flange Locking Nut | M14×1.5 | 1 | Not Covered Under Warranty | 800-4C(19)/ATV800(19) |
| 33 | 21120102801 | O Ring | φ14×6.5 | 1 | Not Covered Under Warranty | 800-4C(19)/ATV800(19) |
| 34 | 11010486512 | Oil Seal | NAK 48 65 12 GC | 1 | Not Covered Under Warranty | 800-4C(19)/ATV800(19) |
| 35 | 21120102901 | O Ring | φ82.5×2.65 | 1 | Not Covered Under Warranty | 800-4C(19)/ATV800(19) |
| 36 | 21120103001 | Spring Pin | φ4×30 | 1 | Not Covered Under Warranty | 800-4C(19)/ATV800(19) |
| 37 | 21120103201 | Thrust Washer | φ61.5×φ52×0.1 | 1 | Not Covered Under Warranty | 800-4C(19)/ATV800(19) |
| 37 | 21120103301 | Thrust Washer | φ61.5×φ52×0.15 | 1 | Not Covered Under Warranty | 800-4C(19)/ATV800(19) |
| 37 | 21120103401 | Thrust Washer | φ61.5×φ52×0.5 | 1 | Not Covered Under Warranty | 800-4C(19)/ATV800(19) |
| 38 | 21120103501 | Front Differential Vent Tube Nipple | 1 | Not Covered Under Warranty | 800-4C(19)/ATV800(19) | |
| 39 | 21130103101 | Front Differential Vent Tube Hose | 1 | Not Covered Under Warranty | 800-4C(19)/ATV800(19) | |
| 40 | 21130103201 | Clamp | 3 | Not Covered Under Warranty | 800-4C(19)/ATV800(19) | |
| 41 | 21130103501 | Front Differential Vent Bellow | 1 | Not Covered Under Warranty | 800-4C(19)/ATV800(19) | |
| 42 | 21120103901 | Oil Plug | M20×1.5×15 | 1 | Not Covered Under Warranty | 800-4C(19)/ATV800(19) |
| 43 | 21120104001 | Drain Bolt | M14×1.5×12 | 1 | Not Covered Under Warranty | 800-4C(19)/ATV800(19) |
| 44 | 21120104201 | O Ring | φ19×2.65 | 1 | Not Covered Under Warranty | 800-4C(19)/ATV800(19) |
| 45 | 21130101701 | O Ring | φ13.2×2.65 | 1 | Not Covered Under Warranty | 800-4C(19)/ATV800(19) |
| 46 | 21120104401 | Screw Plug | M10×1.25×10 | 1 | Not Covered Under Warranty | 800-4C(19)/ATV800(19) |
| 47 | 21120104501 | Copper Washer | φ16×φ10.2×1.2 | 1 | Not Covered Under Warranty | 800-4C(19)/ATV800(19) |
| 48 | 21120104601 | Front Differential Vent Tube Coupler | 1 | Not Covered Under Warranty | 800-4C(19)/ATV800(19) |
