2023 Odes Junglecross 800ST-2 (Gearbox 1)
AodesSPECIAL ORDER ONLY PLEASE CALL (320)-358-1994 TO ORDER THANK YOU
(No reviews yet)
Write a Review
Aodes

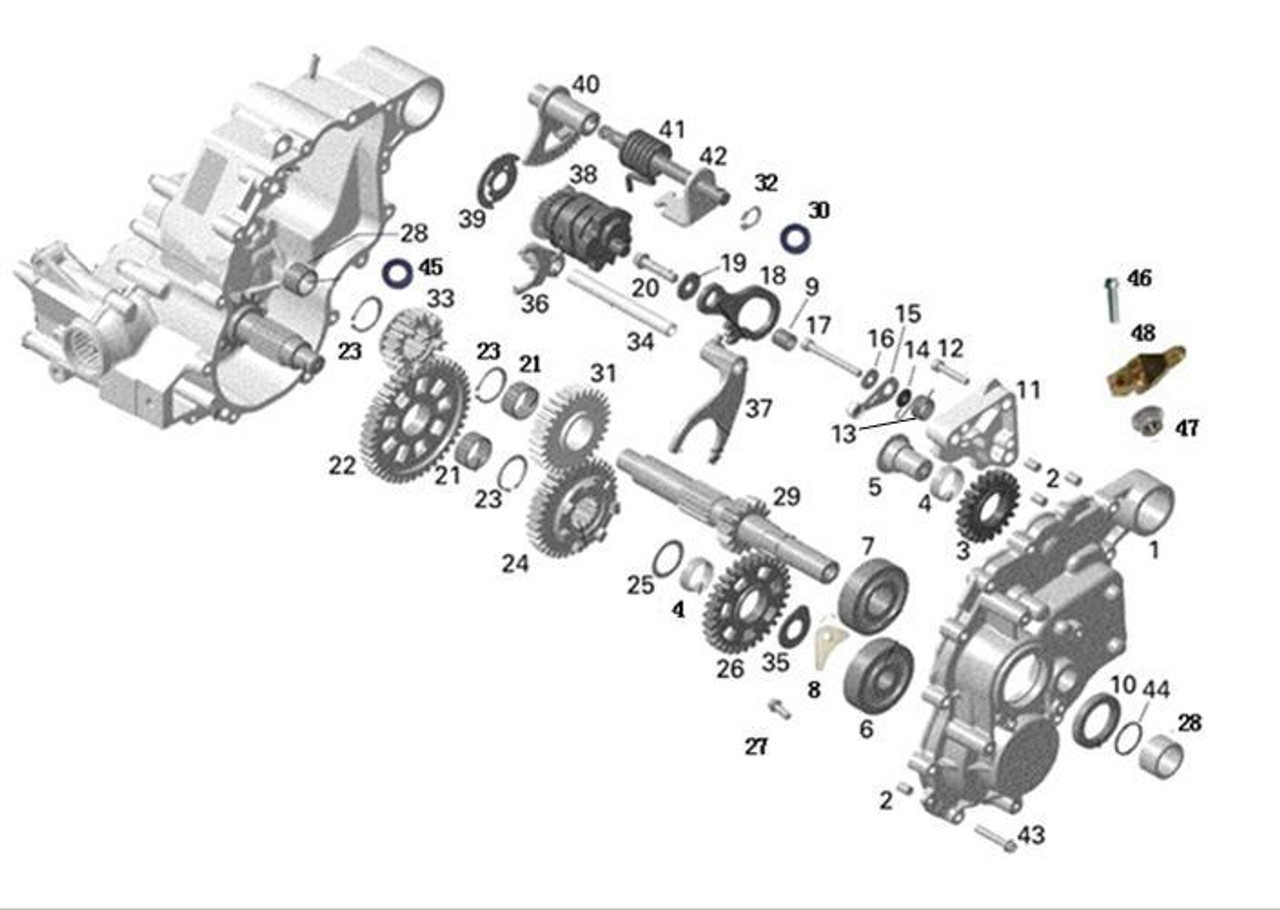

2023 Odes Junglecross 800ST-2 (Gearbox 1)
Item # |
Part Number |
Description |
Specification |
Quantity |
Warranty Period |
| 1 | 21040202501 | Gear Housing Left Cover | 1 | 24 Months (Unlimited Miles) | |
| 2 | 21040105401 | Center Pin | φ8×12 | 4 | Not Covered Under Warranty |
| 3 | 21040202601 | Reverse Gear Wheel | 21T | 1 | 24 Months (Unlimited Miles) |
| 4 | 10031252910 | Needle Bearing | K252910 | 2 | Not Covered Under Warranty |
| 5 | 21040202801 | Reverse Gear Shaft | 1 | 24 Months (Unlimited Miles) | |
| 6 | 09160006403 | Bearing | 6403 | 1 | Not Covered Under Warranty |
| 7 | 09160006305 | Ball Bearing | 6305 | 1 | Not Covered Under Warranty |
| 8 | 21040203001 | Bearing Set Plate | 1 | 24 Months (Unlimited Miles) | |
| 9 | 21040203101 | Shift Arm Bushing | φ14×φ10×15 | 1 | 24 Months (Unlimited Miles) |
| 10 | 21040201801 | Seal-Oil | φ32xφ47x7 | 1 | Not Covered Under Warranty |
| 11 | 21040203201 | Support Plate | 1 | 24 Months (Unlimited Miles) | |
| 12 | 03344060301 | Hexagon Socket Bolt | M6×30 | 2 | Not Covered Under Warranty |
| 13 | 21040203301 | Detent Lever Spring | 1 | Not Covered Under Warranty | |
| 14 | 21040203401 | Step Ring | 1 | 24 Months (Unlimited Miles) | |
| 15 | 21040203501 | Detent Shift Lever | 1 | 24 Months (Unlimited Miles) | |
| 16 | 21040203601 | Locator Spacer | 1 | Not Covered Under Warranty | |
| 17 | 03344060551 | Hexagon Socket Bolt | M6×55 | 1 | Not Covered Under Warranty |
| 18 | 21040203701 | Parking Lock Lever Assembly | 1 | 24 Months (Unlimited Miles) | |
| 19 | 21040203801 | Washer | φ24×φ8.5×2 | 1 | Not Covered Under Warranty |
| 20 | 01224080351 | Hex Flange Bolts | M8×35 | 1 | Not Covered Under Warranty |
| 21 | 10032252913 | Needle Bearing | SB252913TN | 2 | 24 Months (Unlimited Miles) |
| 22 | 21040204001 | Countershaft Low Gear | 43T | 1 | 24 Months (Unlimited Miles) |
| 23 | 07021271204 | Shaft Retaining Ring | φ27 | 3 | Not Covered Under Warranty |
| 24 | 21040204201 | Countershaft High Speed Gear | 34T | 1 | 24 Months (Unlimited Miles) |
| 25 | 21040206902 | Thrust Washer | φ34xφ25x1.2 | 1 | Not Covered Under Warranty |
| 26 | 21040204401 | Revel Reverse Gear | 31T | 1 | 24 Months (Unlimited Miles) |
| 27 | 01224060161 | Hex Flange Bolt | M6x16 | 1 | Not Covered Under Warranty |
| 28 | 21040201601 | Distance Ring | φ32×φ25×11.4 | 1 | 24 Months (Unlimited Miles) |
| 29 | 21040204501 | Main Shaft | 15T | 1 | 24 Months (Unlimited Miles) |
| 30 | 21040205801 | O-Ring | φ20×φ12.5×1 | 1 | Not Covered Under Warranty |
| 31 | 21040204601 | Gear Pinion | 29T | 1 | 24 Months (Unlimited Miles) |
| 32 | 07021121004 | Circlip | φ12 | 1 | Not Covered Under Warranty |
| 33 | 21040204701 | Main Low Range Gear | 20T | 1 | 24 Months (Unlimited Miles) |
| 34 | 21040204801 | Fork Shaft | 1 | 24 Months (Unlimited Miles) | |
| 35 | 21040204909 | Special Shaped Washer | φ17x1.7 | Not Covered Under Warranty | |
| 36 | 21040205001 | Small Shift Fork | 1 | 24 Months (Unlimited Miles) | |
| 37 | 21040205101 | Large Shift Fork | 1 | 24 Months (Unlimited Miles) | |
| 38 | 21040205201 | Shift Drum Assembly | 1 | 24 Months (Unlimited Miles) | |
| 39 | 21040205301 | Isolating Washer | 1 | Not Covered Under Warranty | |
| 40 | 21040205401 | Shifting Gear | 1 | 24 Months (Unlimited Miles) | |
| 41 | 21040205501 | Return Torsion Spring | 1 | 24 Months (Unlimited Miles) | |
| 42 | 21040205601 | Shift Shaft Assembly | 1 | 24 Months (Unlimited Miles) | |
| 43 | 01224060351 | Hex Flange Bolts | M6x35 | 12 | Not Covered Under Warranty |
| 44 | 21040201501 | O-Ring | φ24x2 | 1 | Not Covered Under Warranty |
| 45 | 21040206702 | Washer | φ30×φ18×2 | 1 | Not Covered Under Warranty |
| 46 | 01224060251 | Hex Flange Bolts | M6×25 | 1 | Not Covered Under Warranty |
| 47 | 04112060021 | Hex Flange Nuts | M6 | 1 | Not Covered Under Warranty |
| 48 | 21040206001 | Shift Rocker Arm Assembly | 1 | 24 Months (Unlimited Miles) |
