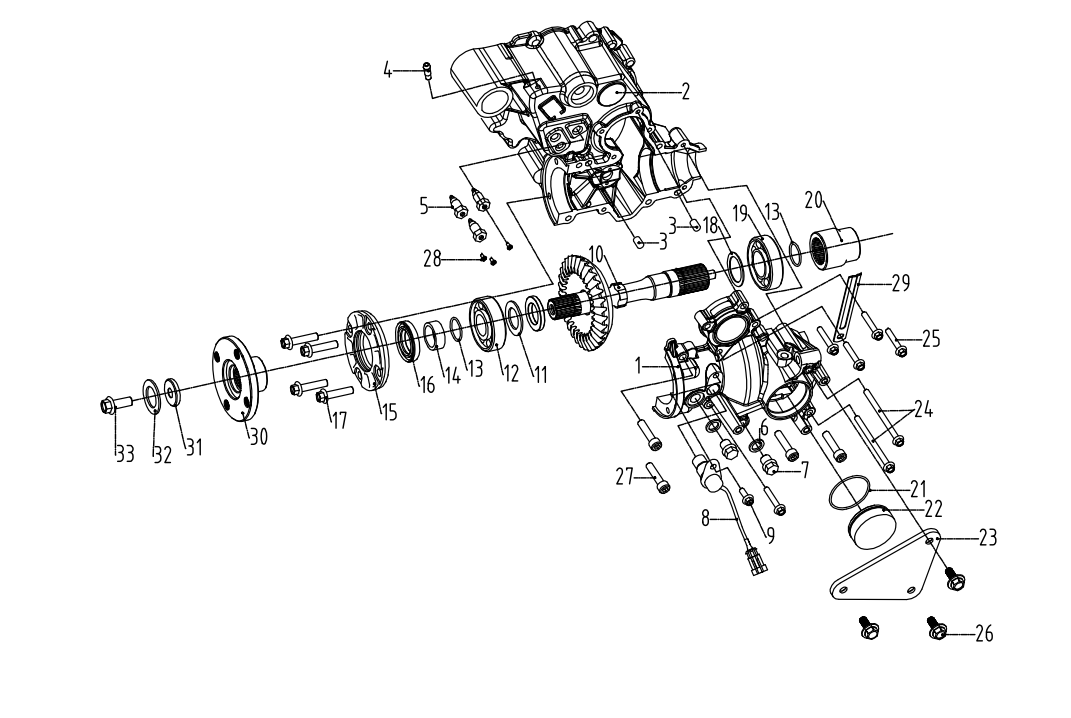

2023 Odes Junglecross 800ST-2 (Gearbox 2)
1-Gear Housing Right Cover
SKU: 21040200203
2-Gear Housing
SKU: 21040200303
3-Center Pin φ8×12
SKU: 21040105401
4-Breathe Pipe
SKU: 21040200402
5-Angle Rotation Sensor
SKU: 21040200801
6-Copper Washer φ18Xφ12.4X2
SKU: 21040104701
7-Plug Screw M12×1.5
SKU: 21040104801
8-Sensor-Speed
SKU: 21040200101
9-Hex Flange Bolt M6X16
SKU: 01224060161
10-Drive Shaft Assembly
SKU: 21040200902
11-Spacer Shim,φ40×φ25×1.2
SKU: 21040201302
12-Ball Bearing 6305
SKU: 09160006305
13-O-Ring φ24×2
SKU: 21040201501
14-Distance Ring φ32×φ25×11.4
SKU: 21040201601
15-Bearing Cover
SKU: 21040201701
16-Oil Seal φ32Xφ47X7
SKU: 21040201801
17-Hex Flange Bolt M8X25
SKU: 01225080251
18-Spacer Shim,φ40×φ30×0.7
SKU: 21040201907
19-Ball Bearing 6206
SKU: 09160006206
20-Shifting Sleeve Kit
SKU: 21040202101
21-O-Ring φ47×2
SKU: 21040115801
22-Gear Box Plug
SKU: 21140210301
23-Gear Box Plate
SKU: 21140210202
24-Hex Flange Bolt M6X85
SKU: 01214060851
25-Hex Flange Bolt M6X35
SKU: 01224060351
26-Flanged Torx Screw M8×20
SKU: 01224080202
27-Heaxagon Socket Bolt M8×35
SKU: 03344080351
28-Screw φ3×6
SKU: 21040206501
29-Wire Harness Mounting Board
SKU: 21040402401
30-Transmission Transition Housing
SKU: 21040206402
31-Washer
SKU: 21040116501
32-Spacer Shim,φ40×φ25×1.2
SKU: 21040201302
