Plastics (Body)

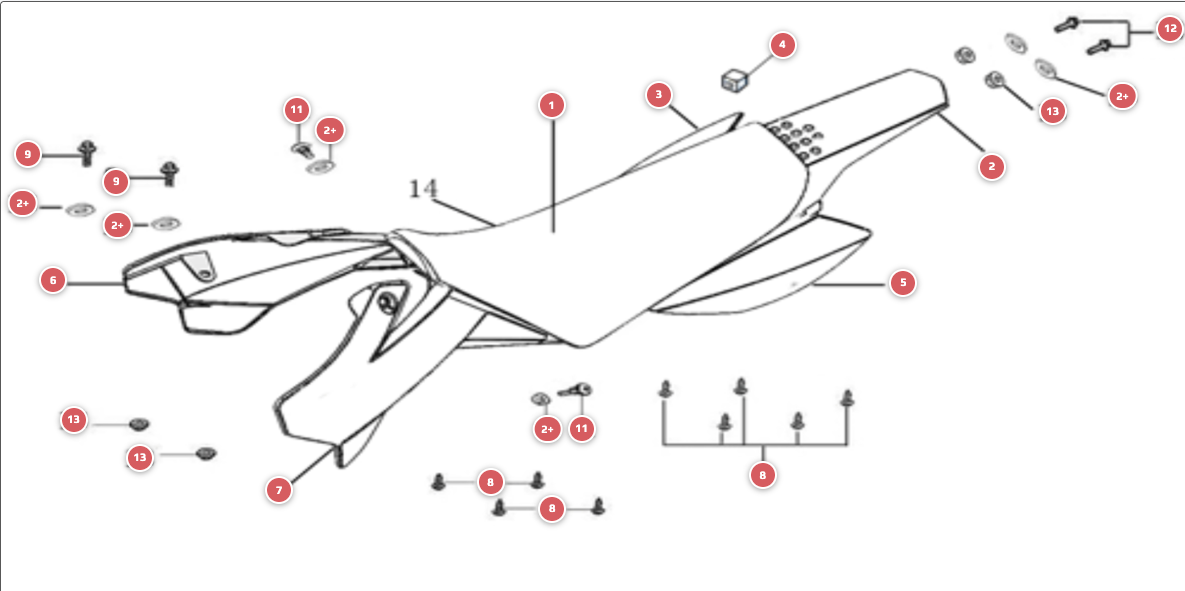

2023 YCF 50E - Plastics (Body) Parts Diagram
Click a blue Part # to see where that part is used. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view Where Used.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | YCF-YC50-1401-05 | YCF Seat Replacement – W50 & 50AE Youth Bikes (2024–2025)+ ADD | $29.99 | 1 |
| 2 | YCF-YC50-14-012-RD | YCF Rear Fender 50CC Red+ ADD | $28.65 | 1 |
| 3 | YCF-YC50-14-022-RD | YCF Right Side Plasticred 50CC+ ADD | $23.90 | 1 |
| 4 | YCF-YC110-14-03 | YCF YC110-14-03+ ADD | $3.99 | 1 |
| 5 | YCF-YC50-14-042-RD | YCF Left Side Plastic Red 50CC+ ADD | $23.90 | 1 |
| 6 | YCF-YC50-1407-BK | YCF YC50-1407-BK+ ADD | $24.99 | 1 |
| 7 | YCF-YC50-1406-BK | YCF YC50-1406-BK+ ADD | $24.99 | 1 |
| 8 | YCF-GB845-ST4.8x16-G | YCF Pan Head Cross Tapping Screw St4.8x16mm | YCF+ ADD | $2.95 | 9 |
| 9 | YCF-BT08-M6x20-W | YCF BT08-M6x20-W+ ADD | $2.99 | 2 |
| 10 | YC110-02-13 | Rubber washer d6mmxd14mmx3mm+ ADD | Call for price | 2 |
| 11 | YCF-FB5787-M5x12-W | YCF Hex.bolt with Flanged M5x12mm+ ADD | $2.95 | 2 |
| 12 | YCF-BT08-M6x20-W | YCF BT08-M6x20-W+ ADD | $2.99 | 2 |
| 13 | YCF-GB6177-M6-W | YCF Hexagon Flat Flange Nut M6 Steel+ ADD | $2.95 | 2 |
| 16 | YCF-YC110-03-01 | YCF Rubber Washer d6mm x d18mm x 4mm for Seat Fixation on Subframe+ ADD | $1.95 | 2 |
| 17 | YCF-GB96-d6-W | YCF Flat Washer,Steel d6mm+ ADD | $1.95 | 2 |
| 18 | YCF-GB70-M5x12 | YCF Hexagon Socket Head Bolt, Stainless Steel, M5x12mm | YCF+ ADD | $1.95 | 1 |
| 19 | YCF-GB70-M8x16 | YCF Hexagon Socket Head Bolt, Stainless Steel, M8x16mm | YCF+ ADD | $3.90 | 1 |
| 20 | YCF-GB96-d5-W | YCF Flat Washer,Steel d5mm+ ADD | $2.95 | 2 |
| 21 | GB96-d6 | flat washer d6mm+ ADD | Call for price | 2 |
