Fork

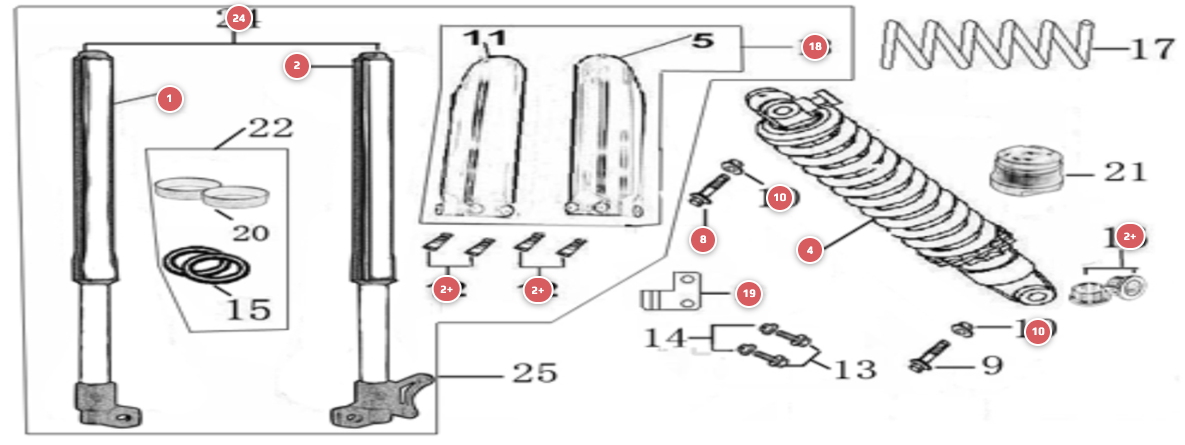

2023 YCF 50E - Fork Parts Diagram
Click a blue Part # to see where that part is used. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view Where Used.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 1 | YCF-YC50-0401-04 | YCF Front Right Fork L=530mm YCF 50 2013 Titan Cylinder+ ADD | $135.90 | 1 |
| 2 | YCF-YC50-0402-04 | YCF Front Left Fork L=530mm YCF 50 2013 Titan Cylinder+ ADD | $135.90 | 1 |
| 4 | YCF-YC50-0404-03 | YCF 200mm Shock Absorber for 50AE and Electric W50 Bikes (2024-2025)+ ADD | $119.99 | 1 |
| 8 | YCF-GB5787-M10x45 | YCF GB5787-M10x45+ ADD | $2.99 | 1 |
| 10 | YCF-GB6187-M10-W | YCF GB6187-M10-W+ ADD | $2.99 | 1 |
| 12 | YCF-GB70.2-M5x10 | YCF Pan Head Hexagon Screw Inox M5x10mm+ ADD | $1.95 | 1 |
| 16 | YCF-YC50-0410-02 | YCF Shock Top Spacer d10mm x d20mm x 22mm YCF 50 ZC+ ADD | $19.05 | 1 |
| 18 | YCF-YC50-0418-02-WH | YCF Fork Guard for YCF 50 White+ ADD | $22.80 | 1 |
| 19 | YCF-YC110-0403-05 | YCF YC110-0403-05+ ADD | $4.99 | 1 |
| 24 | YCF-YC50-0400-03 | YCF YC50-0400-03+ ADD | $149.99 | 1 |
| 25 | YCF-YC50-0411-03 | YCF YC50-0411-03+ ADD | $8.99 | 1 |
| 26 | YCF-GB97-d5-W | YCF Flat Washer, Steel d5mm+ ADD | $2.95 | 1 |
