Fuel Tank

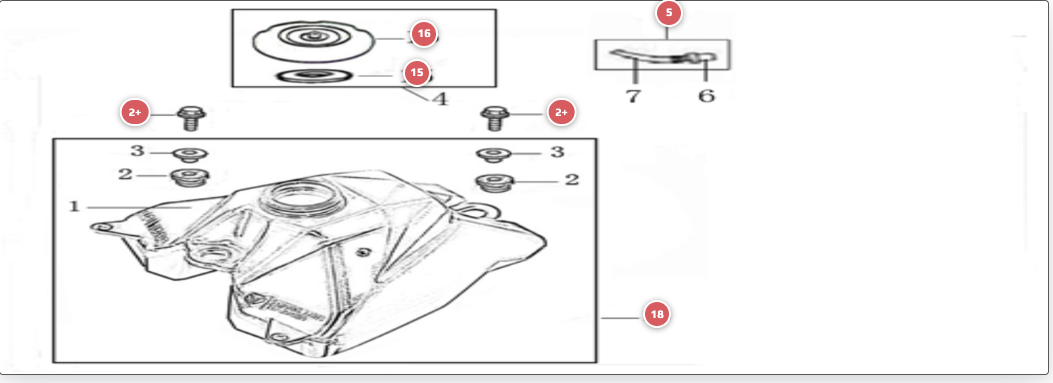

2023 YCF 50E - Fuel Tank Parts Diagram
Click a blue Part # to see where that part is used. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view Where Used.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 5 | YCF-YC125-0704-BK | YCF Fuel Vent Valve for YCF Bikes (2024-2025) - (Black)+ ADD | $8.99 | 1 |
| 7 | YCF-DIN916-M5x6 | YCF Screw M5x6mm for Clutch Lever 2020+ ADD | $1.95 | 2 |
| 8 | YCF-GB97-d8-2W | YCF Flat Washer,Steel d8mm 2W+ ADD | $1.95 | 2 |
| 9 | YCF-YC110-2519-01 | YCF Throttle Response Regulator, L=310mm, Including Plastic Support and Sticker+ ADD | $32.70 | 1 |
| 10 | YCF-BT08-M8x30-W | YCF BT08-M8x30-W+ ADD | $2.99 | 2 |
| 11 | YCF-YC110-0725-01 | YCF Sticker for Throttle Response Regulator in Fuel Tank+ ADD | $12.45 | 1 |
| 15 | YC110-0722-02 | Rubber mat for tank cap plastic d14mmxd52mmx2mm (Oil proof)+ ADD | Call for price | 1 |
| 16 | YCF-YC110-0702-01 | YCF YC110-0702-01+ ADD | $7.99 | 1 |
| 18 | YCF-YC50-07012-02 | YCF Complete Fuel Tank YCF 50A 2025 with Holes (Includes YC110-07-01 x2 and YC110-07-02 x2)+ ADD | $82.35 | 1 |
| 31 | YCF-YC50-1544-02 | YCF YC50-1544-02+ ADD | $12.99 | 1 |
| 32 | YCF-YC110-0724-01 | YCF Plastic Support for Regulator 45.5mmx32.5mm | YCF+ ADD | $4.80 | 1 |
