Brake (Rear)

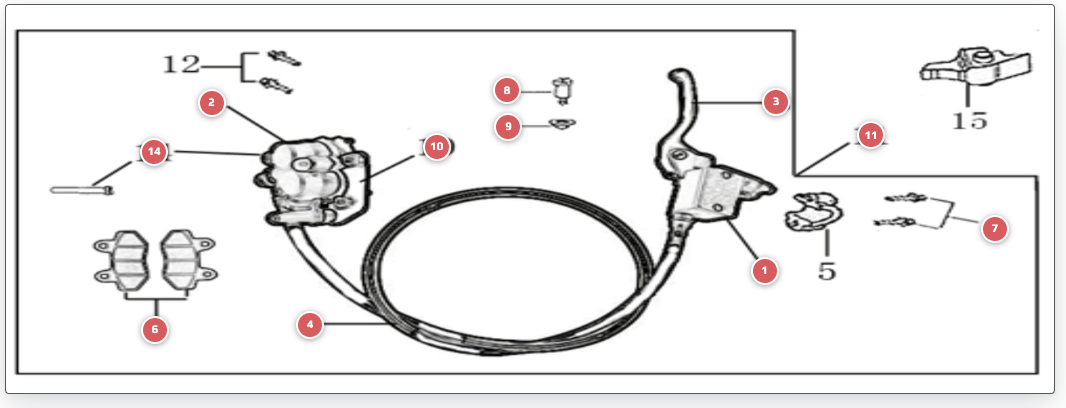

2023 YCF 50E - Rear Brake Parts Diagram
Click a blue Part # to see where that part is used. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view Where Used.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 1 | YCF-YC50-1202-02 | YCF YC50-1202-02+ ADD | $49.99 | 1 |
| 2 | YCF-YC50-1201-02 | YCF YC50-1201-02+ ADD | $49.99 | 1 |
| 3 | YCF-YC50-0503-06 | YCF Complete Brake Lever Assembly - YCF 50+ ADD | $11.45 | 1 |
| 4 | YCF-YC50-1203-03 | YCF YC50-1203-03+ ADD | $14.99 | 1 |
| 6 | YCF-YC50-0506-02 | YCF Set of Front & Rear Brake Pads for YCF 50 Bikes with Hydraulic Systems (2024-2025)+ ADD | $19.99 | 2 |
| 7 | YCF-GB70-M5x16 | YCF Hexagon Socket Head Bolt, Stainless Steel, M5x16mm+ ADD | $1.95 | 2 |
| 8 | YCF-GB8752-M6x28-G | YCF Hex Head Screw Steel M6x28mm with Step d8mmx14mm+ ADD | $2.95 | 1 |
| 9 | YCF-GB6189-M6-W | YCF Hexagon Nut M6+ ADD | $1.95 | 1 |
| 10 | YCF-YC50-120101-03 | YCF Rear Brake Bracket YCF 50A/50E (Left Side) 2020+ ADD | $12.45 | 1 |
| 11 | YCF-YC50-1214-03 | YCF Hydraulic Rear Brake Kit for 50AE and Electric W50 Bikes (2024-2025)+ ADD | $109.99 | 1 |
| 14 | YCF-YC50-0555-01 | YCF YC50-0555-01+ ADD | $4.99 | 2 |
