Wheel (Rear)

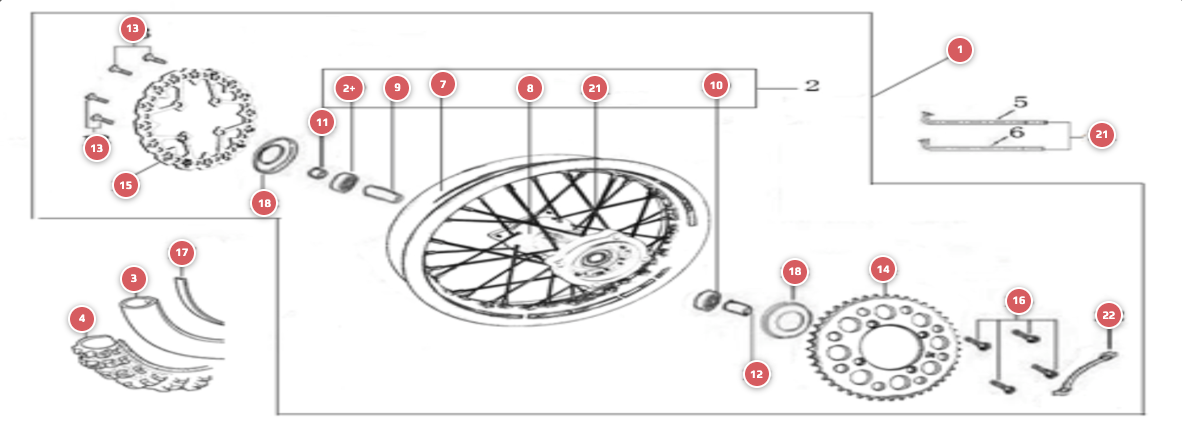

2023 YCF 50E - Wheel (Rear) Parts Diagram
Click a blue Part # to see where that part is used. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view Where Used.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | YCF-YC50-1101-0601 | YCF Complete Steel Rear Wheel 1.4 x 10 in., Cast Hub with Disc — 50E+ ADD | $268.85 | 1 |
| 3 | YCF-CHAMBRE10-2.5N | YCF CHAMBRE10-2.5N+ ADD | $14.99 | 1 |
| 4 | YCF-250/10 | YCF 10" Front Tire for YCF 50 Series Bikes (2024-2026) - (2.50/10)+ ADD | $39.99 | 1 |
| 7 | YCF-YC50-1117-01 | YCF YC50-1117-01+ ADD | $39.99 | 1 |
| 8 | YCF-YC50-1122-04 | YCF 50 Rear Wheel Die Cast Hub with Seal 2022 | YCF+ ADD | $100.75 | 1 |
| 9 | YCF-YC50-1109-01 | YCF Rear Hub Axle Bushing 6061 d12mmxd19mmx76mm | YCF+ ADD | $7.75 | 1 |
| 10 | 6221RS | YCF50 Ball bearing 6221RS d32mmxd12mmx10mm+ ADD | Call for price | 2 |
| 11 | YCF-YC50-11-043 | YCF Rear Wheel Spacer Right Q235 d12mmxd22mmx17mm | YCF+ ADD | $4.80 | 1 |
| 12 | YCF-YC50-11-041 | YCF YC50-11-041+ ADD | $5.99 | 1 |
| 13 | YCF-GB70.2-M6x16 | YCF Pan Head Hexagon Screw M6x16mm Inox | YCF+ ADD | $2.95 | 4 |
| 14 | YCF-YC110-11-05/60 | YCF YC110-11-05/60+ ADD | $44.99 | 1 |
| 15 | YCF-YC50-0513-01 | YCF YC50-0513-01+ ADD | $49.99 | 1 |
| 16 | YCF-GB5783-M8x20-W | YCF Hexagon Head Bolt with Full Thread M8x20mm | YCF+ ADD | $2.90 | 4 |
| 17 | YCF-YC110-11-02 | YCF YC110-11-02+ ADD | $3.99 | 1 |
| 18 | YCF-YC50-0610 | YCF Wheel Oil Seal (22×32×5) for YCF 50AE and Electric W50 Bikes (2024-2025)+ ADD | $7.99 | 2 |
| 21 | YCF-JR10-10.5 | YCF Rear Spoke Set — 4mm — YCF 50 Series+ ADD | $19.99 | 1 |
| 22 | YCF-YC110-11-03 | YCF YC110-11-03+ ADD | $3.99 | 2 |
