Steering Plates

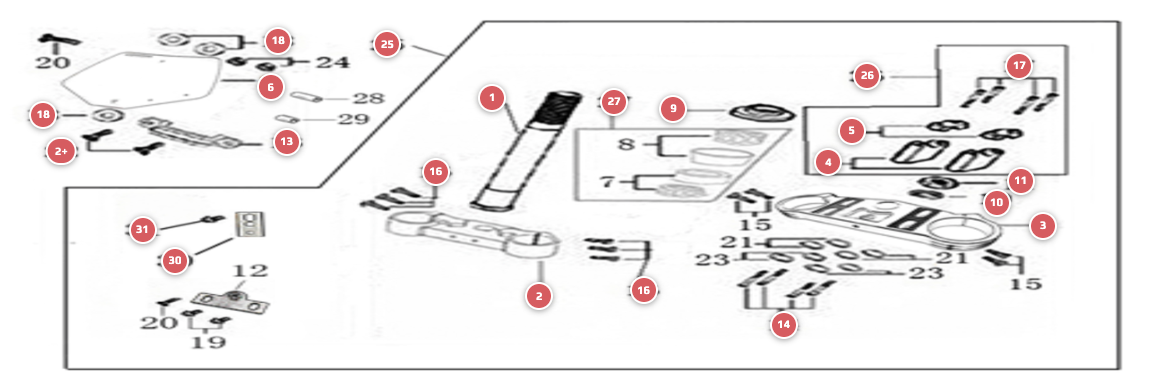

2023 YCF 50E - Steering Plates Parts Diagram
Click a blue Part # to see where that part is used. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view Where Used.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | YCF-YC50-0200-02 | YCF YC50-0200-02+ ADD | $19.99 | 1 |
| 2 | YCF-YC50-0202-06-GY | YCF Lower Triple Clamp L=135mm, d35mm, H=18mm — YCF 50 2020, Matt Grey+ ADD | $91.55 | 1 |
| 3 | YCF-YC50-0201-06-GY | YCF Top Triple Clamp L=135mm, d35mm, H=15mm — YCF 50 2022, Grey+ ADD | $91.55 | 1 |
| 4 | YCF-YC50-0203-03 | YCF Lower Bar Mount CNC H=36mm, d22.2mm — YCF 50 2020, Black+ ADD | $28.65 | 2 |
| 5 | YC110-0221-02 | Top Bar Mount CNC d22.2 mm H=18mm START Type (BLACK) 2022+ ADD | Call for price | 2 |
| 6 | YC50-0212-04-BK | YCF50 Front Number Plate (BLACK) 2020+ ADD | Call for price | 1 |
| 9 | YCF-YC110-02-09 | YCF YC110-02-09+ ADD | $4.99 | 1 |
| 10 | YCF-YC110-02-10 | YCF YC110-02-10+ ADD | $2.99 | 2 |
| 11 | YCF-YC110-02-11 | YCF YC110-02-11+ ADD | $4.99 | 1 |
| 13 | YC110-0224-01-WH | Complete Brake Line Retainer (W/ GB9074.5-M4x10-W, 1EA ) WHITE+ ADD | Call for price | 1 |
| 14 | GB70-M10x25x1.5W | HEXAGON SOCKET Head Bolt with half thread M10x25mmx1.5mm+ ADD | Call for price | 2 |
| 16 | YCF-BT08-M6x25-W | YCF BT08-M6x25-W+ ADD | $2.99 | 4 |
| 17 | YCF-BT08-M8x25-W | YCF BT08-M8x25-W+ ADD | $2.99 | 4 |
| 18 | YCF-GB97-d6-W | YCF Flat Washer,Steel d6mm+ ADD | $1.95 | 1 |
| 19 | FB13-7x10x22-W | Front Number plate spacer (Top) d7mmxd10mmx22mm+ ADD | Call for price | 1 |
| 22 | GBT5787-M6x16-3 | HEXAGON screw with Flange with half thread M6x16mmx3mm+ ADD | Call for price | 1 |
| 23 | YCF-YC110-01-08-BK | YCF YC110-01-08-BK+ ADD | $4.99 | 2 |
| 24 | YCF-YC110-02-20 | YCF YC110-02-20+ ADD | $4.99 | 1 |
| 25 | YCF-YC50-0227-03-GY | YCF Complete Triple Clamp L=135mm with Steering Stem L=195mm — YCF 50 2020, Grey+ ADD | $376.40 | 1 |
| 26 | YCF-YC50-0228-01 | YCF YC50-0228-01+ ADD | $39.99 | 1 |
| 27 | YCF-KRDIRECTION46 | YCF KRDIRECTION46+ ADD | $19.99 | 1 |
| 30 | YCF-YC110-0213-0401 | YCF YC110-0213-0401+ ADD | $4.99 | 1 |
| 31 | YCF-BT08-M6x35-W | YCF Hexagon Torx Screw with Flange M6x35mm+ ADD | $2.25 | 1 |
| 32 | YCF-YC110-0213-12 | YCF Front Plastic Plate to Hold Cables 75mmx80mm | YCF+ ADD | $11.00 | 1 |
