Swingarm

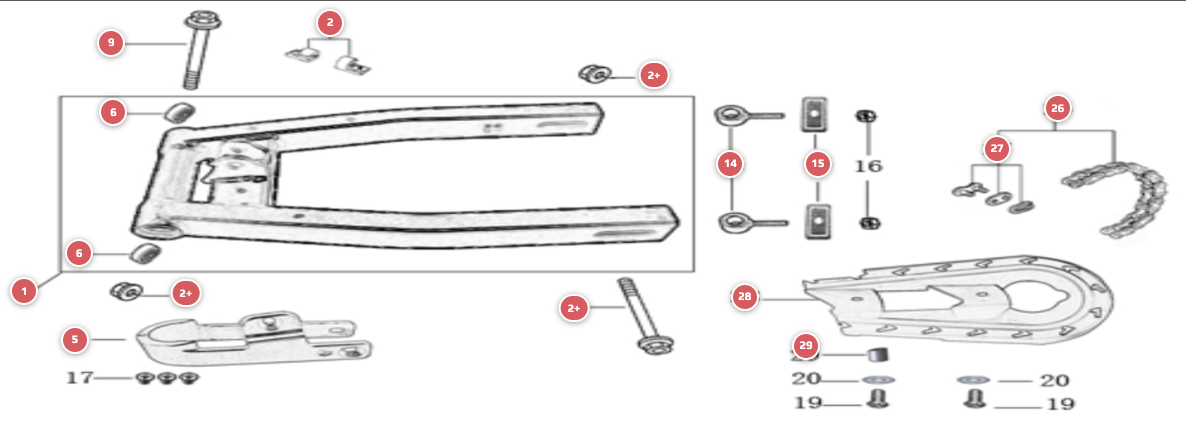

2023 YCF 50E - Swingarm Parts Diagram
Click a blue Part # to see where that part is used. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view Where Used.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | YCF-YC50-10014-01 | YCF YC50-10014-01+ ADD | $109.99 | 1 |
| 2 | YCF-YC110-10-015-BK | YCF YC110-10-015-BK+ ADD | $4.99 | 1 |
| 5 | YCF-YC50-10-01 | YCF YC50-10-01+ ADD | $4.99 | 1 |
| 6 | YCF-6001/28-12-08 | YCF Swing Arm Bearing for YCF Bikes (2024-2026)+ ADD | $4.99 | 2 |
| 9 | YCF-YC110-10-034 | YCF YC110-10-034+ ADD | $4.99 | 1 |
| 10 | YCF-GB6187-M12-W | YCF GB6187-M12-W+ ADD | $2.99 | 2 |
| 11 | YCF-YC50-11-02 | YCF YC50-11-02+ ADD | $9.99 | 1 |
| 12 | YCF-GB819-M6x16-W | YCF Countersunk Cross Head Machine Screw, Steel, M6x16mm+ ADD | $1.95 | 3 |
| 13 | YCF-GB97-d6-W | YCF Flat Washer,Steel d6mm+ ADD | $1.95 | 2 |
| 14 | YCF-YC50-1001-001 | YCF Block Axle d13.5mm YCF 50 Black+ ADD | $9.75 | 2 |
| 15 | YCF-YC50-1001-003 | YCF YC50-1001-003+ ADD | $9.99 | 2 |
| 18 | YCF-GB5787-M6x12-W | YCF Hexagon Screw with Flange M6x12mm Steel | YCF+ ADD | $1.95 | 1 |
| 19 | YCF-GB5787-M6x16-W | YCF Hexagon Screw with Flange M6x16mm Steel | YCF+ ADD | $1.95 | 1 |
| 26 | YCF-RS35-114T | YCF Chain 420 and RS35 114 Links for YCF 50E+ ADD | $24.99 | 1 |
| 27 | YCF-AR-35 | YCF Chain Joining Link - Compatible with YCF 50E+ ADD | $3.99 | 1 |
| 28 | YCF-YC50-0600-02 | YCF Chain Box Protection L=152mm+ ADD | $32.70 | 1 |
| 29 | FB13-7x12x5 | Bushing d6.5mmxd12mmx5.5mm for Chain box protection (YCF50)+ ADD | Call for price | 1 |
| 30 | YCF-GB6189-M8-W | YCF GB6189-M8-W+ ADD | $3.99 | 2 |
| 31 | YCF-DIN7985-M6x16 | YCF Screw M6x16mm Inox+ ADD | $2.95 | 2 |
