Camshaft & Valves
All 2025 SSR SR110SE schematics

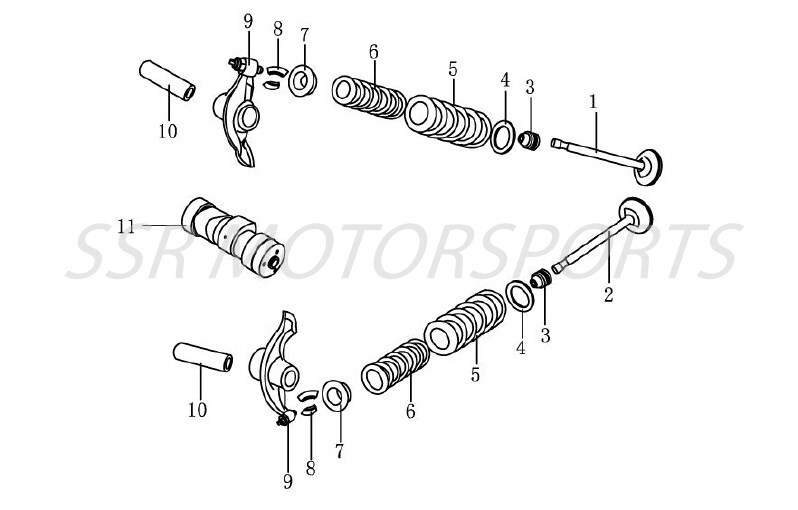

2025 SSR SR110SE - Camshaft & Valves Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A02835-09-00 | INTAKE VALVE BANGEN+ ADD | $14.00 | 1 |
| 2 | A02836-09-00 | EXHAUST VALVE BANGEN+ ADD | $14.00 | 1 |
| 3 | A02858-09-00 | VALVE STEM SEAL+ ADD | $2.60 | 2 |
| 4 | A02840-09-00 | LOWER VALVE SPRING RETAINER BANGEN+ ADD | $8.00 | 2 |
| 5 | A02837-09-00 | OUTER VALVE SPRING BANGEN+ ADD | $6.10 | 2 |
| 6 | A02838-09-00 | INNER VALVE SPRING BANGEN+ ADD | $6.10 | 2 |
| 7 | A02839-09-00 | UPPER VALVE SPRING RETAINER BANGEN+ ADD | $8.00 | 2 |
| 8 | A02841-09-00 | COLLET BANGEN+ ADD | $2.50 | 4 |
| 9 | A01197-09-00 | ROCKER ARM ASSY+ ADD | $24.50 | 2 |
| 10 | A01188-09-00 | ROCKER ARM SHAFT+ ADD | $6.10 | 2 |
| 11 | A01185-09-00 | CAMSHAFT+ ADD | $75.30 | 1 |
