Crankcase & Oil Pump - 2P
All 2025 SSR SR110SE schematics

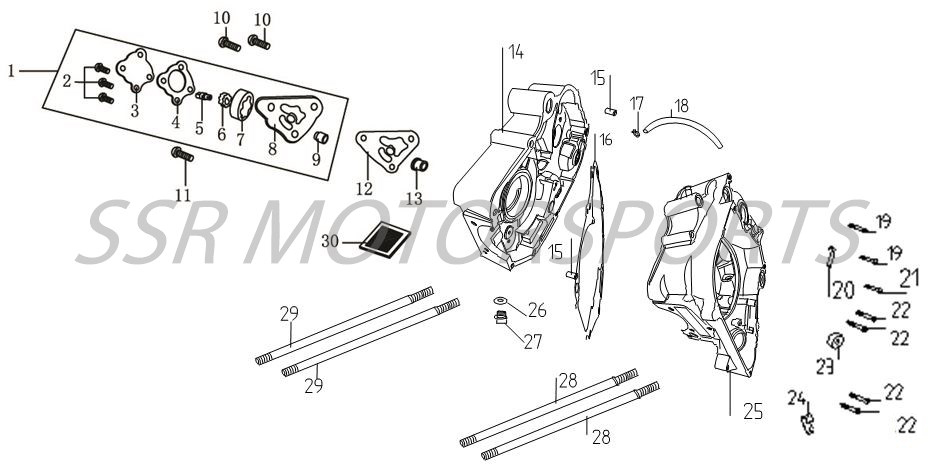

2025 SSR SR110SE - Crankcase & Oil Pump - 2P Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A01221-09-00 | OIL PUMP ASSY+ ADD | $49.00 | 1 |
| 2 | A00037-19-01 | FLANGE BOLT M5x10+ ADD | $2.00 | 3 |
| 3 | A01225-09-00 | OIL PUMP COVER+ ADD | $8.80 | 1 |
| 4 | A00124-13-00 | OIL PUMP COVER GASKET+ ADD | $4.40 | 1 |
| 5 | A01228-09-00 | OIL PUMP GEAR BOLT+ ADD | $8.80 | 1 |
| 6 | A01226-09-00 | OIL PUMP INNER ROTOR+ ADD | $8.80 | 1 |
| 7 | A01227-09-00 | OIL PUMP OUTER ROTOR+ ADD | $8.80 | 1 |
| 8 | A01222-09-00 | OIL PUMP BODY+ ADD | $21.00 | 1 |
| 9 | A01229-09-00 | OIL PUMP SHAFT BUSHING+ ADD | $2.50 | 1 |
| 10 | A00001-19-03 | BOLT M6X16+ ADD | $2.00 | 2 |
| 11 | A00024-19-01 | FLANGE BOLT M6X22+ ADD | $2.00 | 1 |
| 12 | A00123-13-00 | OIL PUMP GASKET+ ADD | $6.10 | 1 |
| 13 | A01230-09-00 | OIL PUMP SPROCKET BUSHING+ ADD | $2.50 | 1 |
| 14 | A02767-09-00 | RIGHT CRANKCASE HALF+ ADD | $101.50 | 1 |
| 15 | A00002-23-00 | DOWEL PIN M10X14+ ADD | $2.00 | 2 |
| 16 | A00122-13-00 | CENTER CASE GASKET+ ADD | $15.80 | 1 |
| 18 | A03328-09-00 | CRANKCASE VENT HOSE+ ADD | $10.50 | 1 |
| 19 | A00429-19-08 | CASE FLANGE BOLT M6X60+ ADD | $2.50 | 2 |
| 20 | A02576-09-00 | VENT HOSE CLAMP+ ADD | $2.00 | 1 |
| 21 | A00428-19-08 | CASE FLANGE BOLT M6X50+ ADD | $2.00 | 1 |
| 22 | A00430-19-08 | CASE FLANGE BOLT M6X65+ ADD | $2.50 | 4 |
| 23 | A00002-26-00 | OIL SEAL 11.6X24X10+ ADD | $4.40 | 1 |
| 24 | A01100-09-00 | STATOR WIRE RETAINER+ ADD | $2.00 | 1 |
| 25 | A03340-09-00 | LEFT CRANKCASE HALF - 2P+ ADD | $108.50 | 1 |
| 26 | A00012-21-04 | CRUSH WASHER 12X20X1.5+ ADD | $2.00 | 1 |
| 27 | A01102-09-00 | OIL DRAIN BOLT M12+ ADD | $4.40 | 1 |
| 28 | A00128-19-04 | CYLINDER STUD B M6X196MM+ ADD | $8.80 | 2 |
| 29 | A00491-19-04 | CYLINDER STUD A M6X202+ ADD | $8.80 | 2 |
| 30 | A01098-09-00 | OIL SCREEN+ ADD | $10.50 | 1 |
