Crankshaft & Piston
All 2025 SSR SR110SE schematics

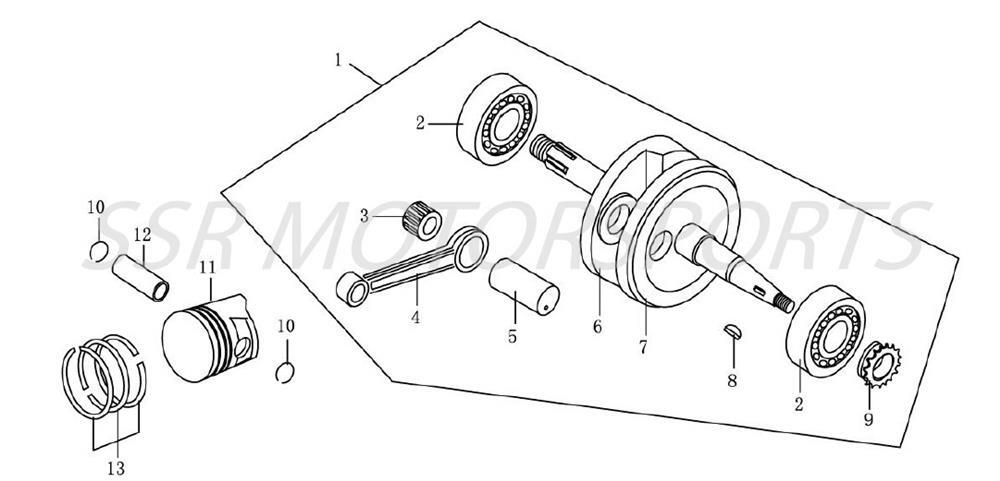

2025 SSR SR110SE - Crankshaft & Piston Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A02774-09-00 | CRANKSHAFT ASSY SR110+ ADD | $117.30 | 1 |
| 2 | A02785-09-00 | BEARING SR110+ ADD | $12.30 | 2 |
| 3 | A02786-09-00 | BEARING SR110+ ADD | $8.80 | 1 |
| 4 | A02779-09-00 | CONNECTING ROD SR110+ ADD | $10.50 | 1 |
| 5 | A02782-09-00 | CRANKSHAFT PIN SR110+ ADD | $6.10 | 1 |
| 6 | A02780-09-00 | RIGHT CRANKSHAFT HALF SR110+ ADD | $38.50 | 1 |
| 7 | A02781-09-00 | LEFT CRANKSHAFT HALF SR110+ ADD | $38.50 | 1 |
| 8 | A01113-09-00 | WOODRUFF KEY 4X14X4+ ADD | $2.00 | 2 |
| 9 | A02783-09-00 | CAM CHAIN SPROCKET SR110+ ADD | $8.80 | 1 |
| 10 | A02778-09-00 | PISTON PIN CIRCLIP+ ADD | $2.00 | 2 |
| 11 | A02776-09-00 | PISTON+ ADD | $36.80 | 1 |
| 12 | A02777-09-00 | PISTON PIN+ ADD | $6.10 | 1 |
| 13 | A02792-09-00 | PISTON RING SET+ ADD | $36.80 | 1 |
