Cylinder Head Covers + Intake Manifold
All 2025 SSR SR110SE schematics

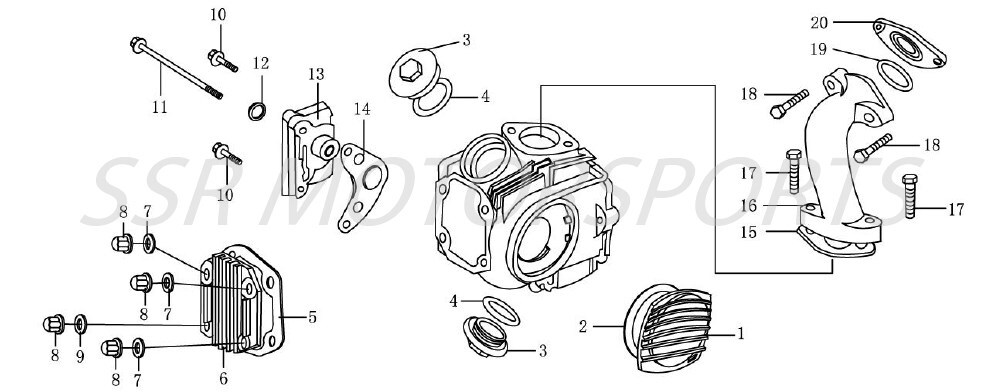

2025 SSR SR110SE - Cylinder Head Covers + Intake Manifold Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A02929-09-00 | LEFT CYLINDER HEAD COVER MATTE+ ADD | $21.00 | 1 |
| 2 | A00112-13-00 | LEFT CYLINDER HEAD COVER GASKET+ ADD | $8.80 | 1 |
| 3 | A02930-09-00 | TAPPET COVER MATTE+ ADD | $8.80 | 2 |
| 4 | A00004-27-00 | O-RING 30.8X3.2+ ADD | $3.50 | 2 |
| 5 | A00127-13-00 | CYLINDER HEAD COVER GASKET+ ADD | $8.80 | 1 |
| 6 | A02928-09-00 | CYLINDER HEAD COVER+ ADD | $24.50 | 1 |
| 7 | A00017-21-01 | WASHER 6X12X1.5+ ADD | $2.00 | 3 |
| 8 | A00003-22-36 | FLANGE CAP NUT M6+ ADD | $2.00 | 4 |
| 9 | A00272-21-01 | COPPER WASHER 6X13X2+ ADD | $2.00 | 1 |
| 10 | A00419-19-08 | CASE FLANGE BOLT M6X20+ ADD | $2.00 | 2 |
| 11 | A00439-19-07 | TIMING COVER FLANGE BOLT M6x110+ ADD | $2.60 | 1 |
| 12 | A01177-09-00 | ALUMINUM WASHER M6+ ADD | $2.00 | 1 |
| 13 | A01172-09-00 | RIGHT CYLINDER HEAD COVER+ ADD | $21.00 | 1 |
| 14 | A00128-13-00 | SUPERSEDED TO : A00233-13-00+ ADD | $8.80 | 1 |
| 15 | A00227-14-00 | INTAKE MANIFOLD GASKET+ ADD | $4.40 | 1 |
| 16 | A00264-14-00 | INTAKE MANIFOLD FA59-1 or 59 or 2X+ ADD | $31.50 | 1 |
| 17 | A00421-19-08 | CASE FLANGE BOLT M6X25+ ADD | $2.00 | 2 |
| 18 | A00423-19-08 | CASE FLANGE BOLT M6X30+ ADD | $2.00 | 2 |
| 19 | A00005-27-00 | INSULATOR O-RING 25.4X2.5+ ADD | $2.60 | 1 |
| 20 | A00126-13-00 | INTAKE INSULATOR+ ADD | $6.10 | 1 |
