Cylinder Head
All 2025 SSR SR110SE schematics

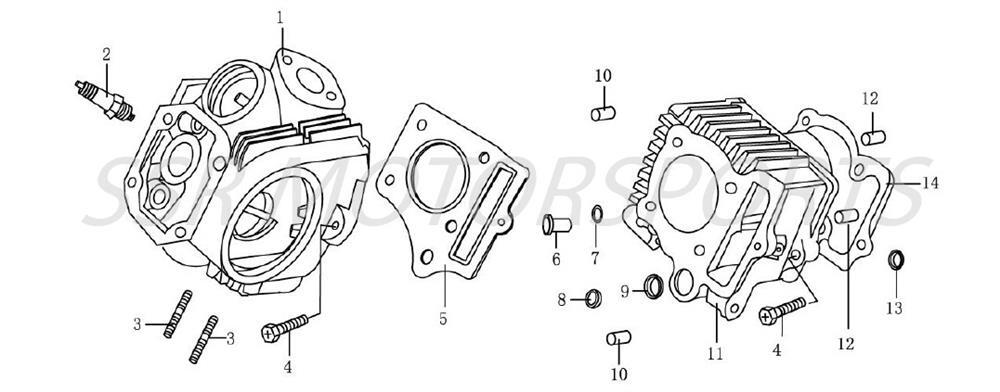

2025 SSR SR110SE - Cylinder Head Parts Diagram
The factory page includes one broken duplicate image; the loaded original cylinder-head diagram is shown.
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A02324-09-00 | CYLINDER HEAD ASSY COMPLETE W/ VALVES+ ADD | $143.50 | 1 |
| 2 | C7HSA | SPARK PLUG SUB FOR: TORCH A7TC+ ADD | $8.80 | 1 |
| 3 | A00001-19-04 | STUD M6X32+ ADD | $2.00 | 2 |
| 4 | A00002-19-03 | BOLT M6X23 - HEX / PHILLIPS+ ADD | $2.00 | 1 |
| 5 | A00196-13-00 | CYLINDER HEAD GASKET+ ADD | $12.30 | 1 |
| 6 | A00118-23-00 | SPECIAL PIN 8X11+ ADD | $2.60 | 1 |
| 7 | A00042-27-00 | O-RING 9X1.6+ ADD | $2.00 | 1 |
| 8 | A00000-21-01 | WASHER 11.5X15X1.5+ ADD | $2.00 | 1 |
| 9 | A00008-27-00 | O-RING 14.5X18.5X2.4+ ADD | $2.00 | 1 |
| 10 | A00001-23-00 | DOWEL PIN M8X14+ ADD | $2.00 | 2 |
| 11 | A03343-09-00 | CYLINDER+ ADD | $117.30 | 1 |
| 12 | A00003-23-00 | DOWEL PIN M8X12+ ADD | $2.00 | 2 |
| 13 | A00009-27-00 | O-RING 11.5X2.5+ ADD | $2.00 | 1 |
| 14 | A00259-13-00 | CYLINDER BASE GASKET+ ADD | $12.30 | 1 |
