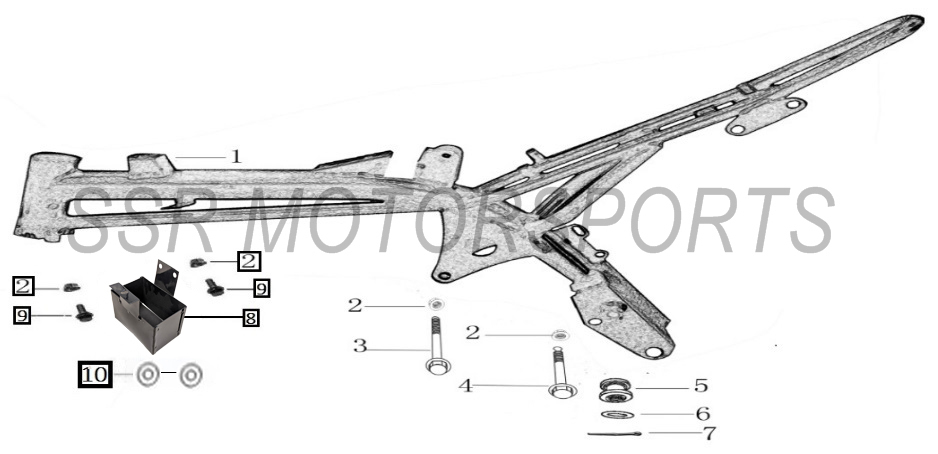

2025 SSR SR110SE - Frame Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00682-11-00 | FRAME 41X10 *OVERSIZE/WEIGHT*+ ADD | $204.80 | 1 |
| 2 | A00100-22-34 | FLANGE LOCKNUT M8+ ADD | $2.00 | 4 |
| 3 | A00046-19-01 | FLANGE BOLT M8X110+ ADD | $2.60 | 1 |
| 4 | A00047-19-01 | FLANGE BOLT M8X110 (NOTCHED)+ ADD | $2.60 | 1 |
| 5 | A00367-11-00 | CHAIN ROLLER+ ADD | $8.80 | 1 |
| 6 | A00014-21-01 | WASHER M10X20X2+ ADD | $2.00 | 1 |
| 7 | A00019-28-01 | COTTER PIN 2.5X24+ ADD | $2.00 | 1 |
| 8 | A00391-11-00 | BATTERY BOX 119X70X77+ ADD | $29.80 | 1 |
| 9 | A00251-19-02 | ALLEN BOLT M8X20+ ADD | $2.00 | 2 |
| 10 | A00013-21-01 | WASHER 8X16X1.5+ ADD | $2.00 | 2 |
