Front Brake System
All 2025 SSR SR110SE schematics

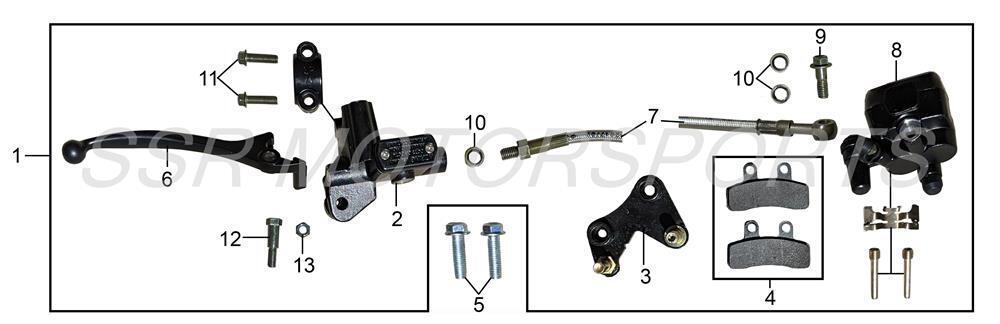

2025 SSR SR110SE - Front Brake System Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00783-04-00 | FRONT BRAKE ASSY+ ADD | $98.00 | 1 |
| 2 | A00787-04-00 | FRONT BRAKE MASTER CYLINDER+ ADD | $75.30 | 1 |
| 3 | A00784-04-00 | FRONT BRAKE CALIPER BRACKET+ ADD | $21.00 | 1 |
| 4 | A00467-04-00 | FRONT BRAKE PAD SET+ ADD | $21.00 | 1 |
| 5 | A00425-19-08 | CASE FLANGE BOLT M6X35+ ADD | $2.00 | 2 |
| 6 | A00785-04-00 | FRONT BRAKE LEVER+ ADD | $21.00 | 1 |
| 7 | A00786-04-00 | FRONT BRAKE HOSE 1000MM+ ADD | $21.00 | 1 |
| 8 | A00588-04-00 | FRONT BRAKE CALIPER+ ADD | $91.00 | 1 |
| 9 | A00675-04-00 | BANJO BOLT M8+ ADD | $2.50 | 1 |
| 10 | A00676-04-00 | SEALING WASHER M8+ ADD | $2.00 | 3 |
| 11 | A00419-19-08 | CASE FLANGE BOLT M6X20+ ADD | $2.00 | 2 |
| 12 | A00481-19-07 | LEVER PIVOT BOLT BLACK+ ADD | $2.50 | 1 |
| 13 | A00005-22-X4 | LOCK NUT M6 - BLACK+ ADD | $2.00 | 1 |
