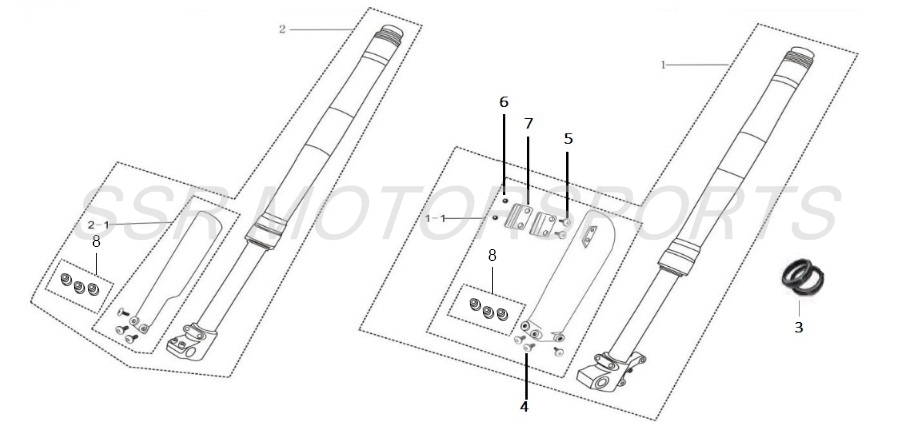

2025 SSR SR110SE - Front Suspension Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00767-16-00 | LEFT FORK ASSY 45/48X630+ ADD | $125.00 | 1 |
| 1-1 | A00703-02-02 | LEFT FORK GUARD BLACK+ ADD | $15.80 | 1 |
| 2 | A00768-16-00 | RIGHT FORK ASSY 45/48X630+ ADD | $125.00 | 1 |
| 2-1 | A00704-02-02 | RIGHT FORK GUARD BLACK+ ADD | $15.80 | 1 |
| 3 | A00769-16-00 | FORK/DUST SEAL SET 33X43X11 + 33X43X14+ ADD | $12.30 | 2 |
| 4 | A00106-19-01 | BUTTON HEAD ALLEN BOLT M6X16 - BLACK+ ADD | $2.00 | 8 |
| 6 | A00005-22-04 | FLANGE LOCKNUT M6+ ADD | $2.00 | 2 |
| 7 | A00800-02-00 | BRAKE LINE HOLDER SET+ ADD | $2.60 | 1 |
| 8 | A00701-16-00 | COLLAR 12X6.5X8.5+ ADD | $2.00 | 6 |
