Front Wheel
All 2025 SSR SR110SE schematics

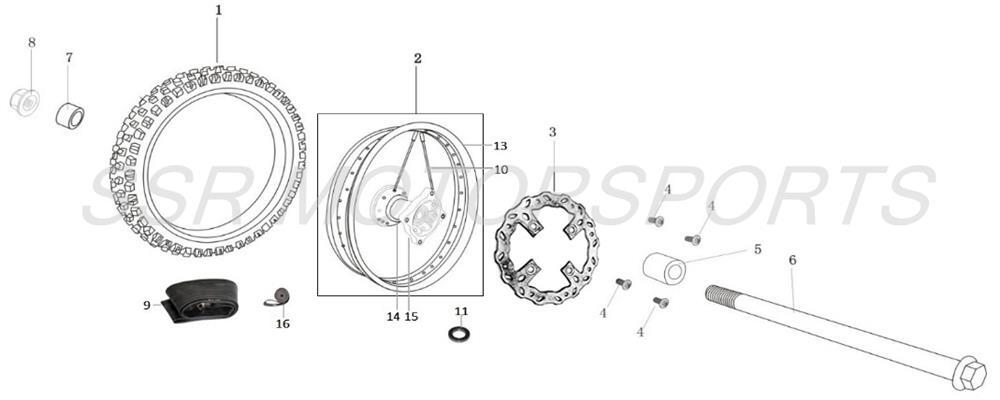

2025 SSR SR110SE - Front Wheel Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00525-18-00 | FRONT TIRE 2.75-12+ ADD | $40.30 | 1 |
| 2 | A00356-18-00 | FRONT WHEEL ASSY 1.60-12"+ ADD | $96.60 | 1 |
| 3 | A00779-04-00 | FRONT BRAKE ROTOR 210+ ADD | $31.50 | 1 |
| 4 | A00034-19-10 | ROTOR BOLT M8X16 ALLEN+ ADD | $2.00 | 4 |
| 5 | A00665-18-00 | WHEEL SPACER 12X20XH25+ ADD | $5.30 | 1 |
| 6 | A00331-18-00 | FRONT WHEEL AXLE 12X215X12X1.25MM+ ADD | $12.30 | 1 |
| 7 | A00664-18-00 | FRONT RIGHT WHEEL SPACER 12X20XH20+ ADD | $6.10 | 1 |
| 8 | A00001-22-03 | FLANGE LOCKNUT M12+ ADD | $2.50 | 1 |
| 9 | A00358-18-00 | INNERTUBE 2.75-12+ ADD | $17.50 | 1 |
| 10 | A00507-18-00 | FRONT SPOKE SET (32PCS/SET) 9GX130 (16 INNER/16 OUTER/32 NIPPLES)+ ADD | $24.50 | 1 |
| 11 | A00075-28-00 | BEARING 6301-2RS+ ADD | $6.10 | 2 |
| 14 | A00399-18-00 | FRONT WHEEL HUB+ ADD | $85.80 | 1 |
| 16 | A00292-18-00 | RIM STRIP 12"+ ADD | $6.10 | 1 |
