Fuel Tank
All 2025 SSR SR110SE schematics

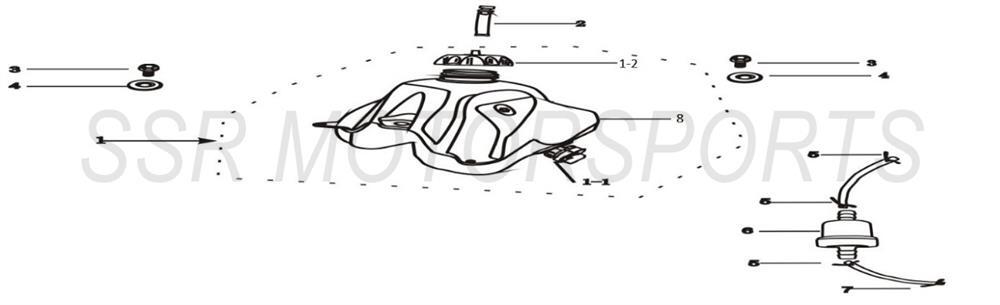

2025 SSR SR110SE - Fuel Tank Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00482-12-00 | FUEL TANK ASSY EPA+ ADD | $64.80 | 1 |
| 1-1 | A00330-12-00 | FUEL PETCOCK LEFT FILTER+ ADD | $19.30 | 1 |
| 1-2 | A00487-12-00 | FUEL TANK CAP EPA+ ADD | $15.80 | 1 |
| 2 | A00332-12-00 | FUEL TANK CAP VENT+ ADD | $6.10 | 1 |
| 3 | A00007-19-01 | FLANGE BOLT M8X25+ ADD | $2.00 | 2 |
| 4 | A00012-21-01 | FENDER WASHER 8x28x1.5+ ADD | $2.00 | 2 |
| 5 | A00002-24-03 | WIRE HOSE CLAMP 7.5+ ADD | $2.00 | 3 |
| 6 | A00254-12-00 | FUEL FILTER ONLY+ ADD | $4.40 | 1 |
| 6 | A00483-12-00 | FUEL FILTER W/ HOSES + CLAMPS EPA+ ADD | $6.10 | 1 |
| 7 | A00003-24-03 | WIRE HOSE CLAMP 9+ ADD | $2.00 | 1 |
| 9 | A00485-12-00 | FUEL HOSE EPA A=70MM B=210MM+ ADD | $4.40 | 1 |
| 10 | A00468-12-00 | FUEL PETCOCK GASKET+ ADD | $8.00 | 1 |
